56

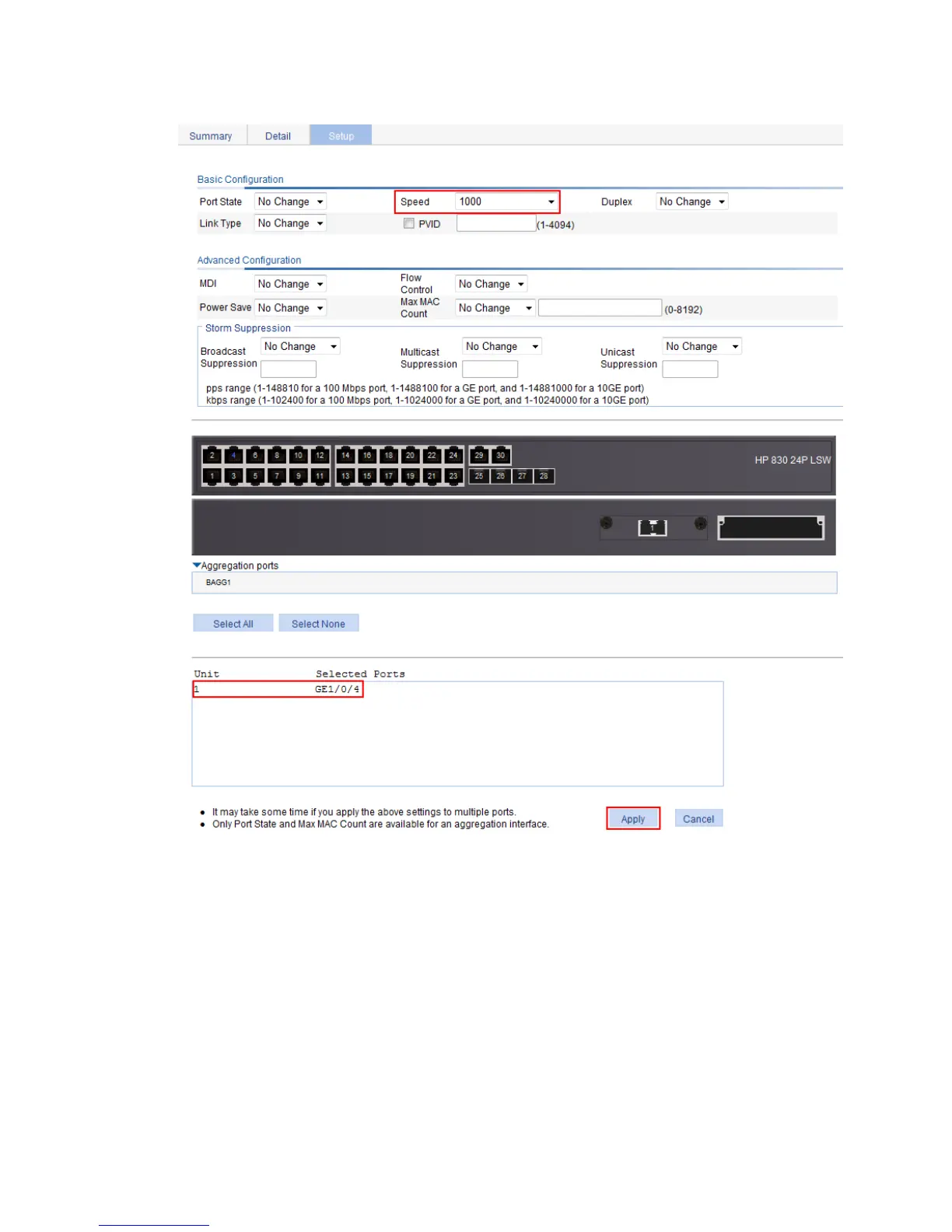

Figure 47 Configuring the rate of GigabitEthernet 1/0/4
2. Batch configure the autonegotiation rate range on GigabitEthernet 1/0/1, GigabitEthernet
1/0/2, and GigabitEthernet 1/0/3 as 100 Mbps:
a. On the Setup page, select Auto 100 from the Speed list.
b. Select 1, 2, and 3 on the chassis front panel. 1, 2, and 3 represent ports GigabitEthernet
1/0/1, GigabitEthernet 1/0/2, and GigabitEthernet 1/0/3.
c. Click Apply.
