HP Designjet T7200

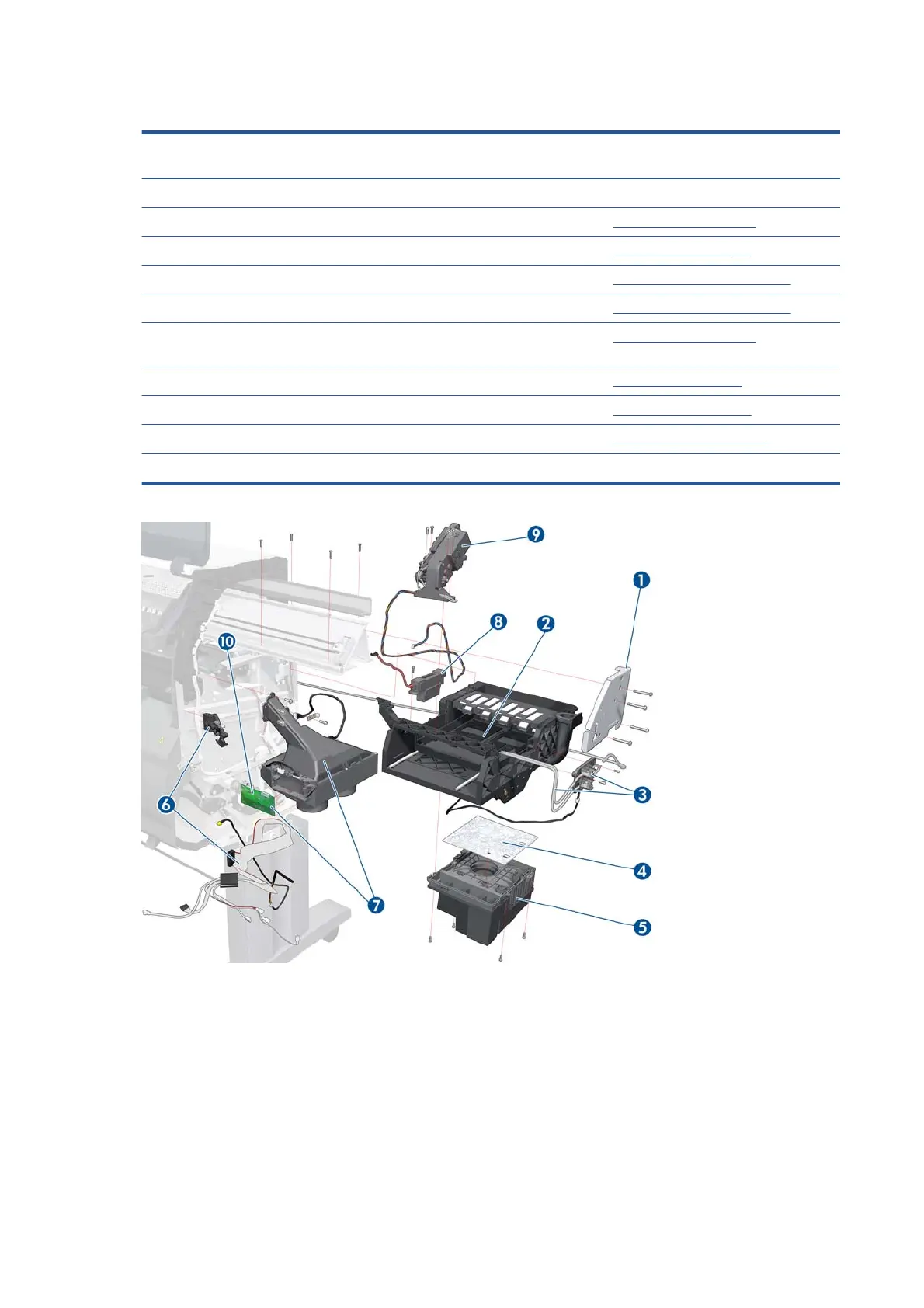

Right-hand Assemblies
Number in
figure
HP part number Description Cross-reference
1 Q1273-60086 Right Scan-Axis Bracket -
2 CQ105-67042 Service Station Assembly and cable
Service Station on page 233
3 CQ109-67017 Primer Valves and Primer Tubes Assembly
Primer Valves on page 230
4 Q1273-60084 Aerosol Filter
Aerosol Fan and Filter on page 241
5 CQ109-67003 Aerosol Fan Assembly
Aerosol Fan and Filter on page 241
6 CQ105-67015 Service Station Cable (includes
Maintenance Cartridge Door Sensor)
Service Station on page 233
7 CQ109-67022 Vacuum Fan Assembly
Vacuum Fan on page 237
8 Q1273-60236 Drop Detector
Drop Detector on page 243
9 CQ109-67016 Primer Assembly
Primer Assembly on page 228
10 CQ105-67061 Vacuum Fan Controller PCA
182 Chapter 8 Parts and diagrams ENWW
