HP Designjet T7200

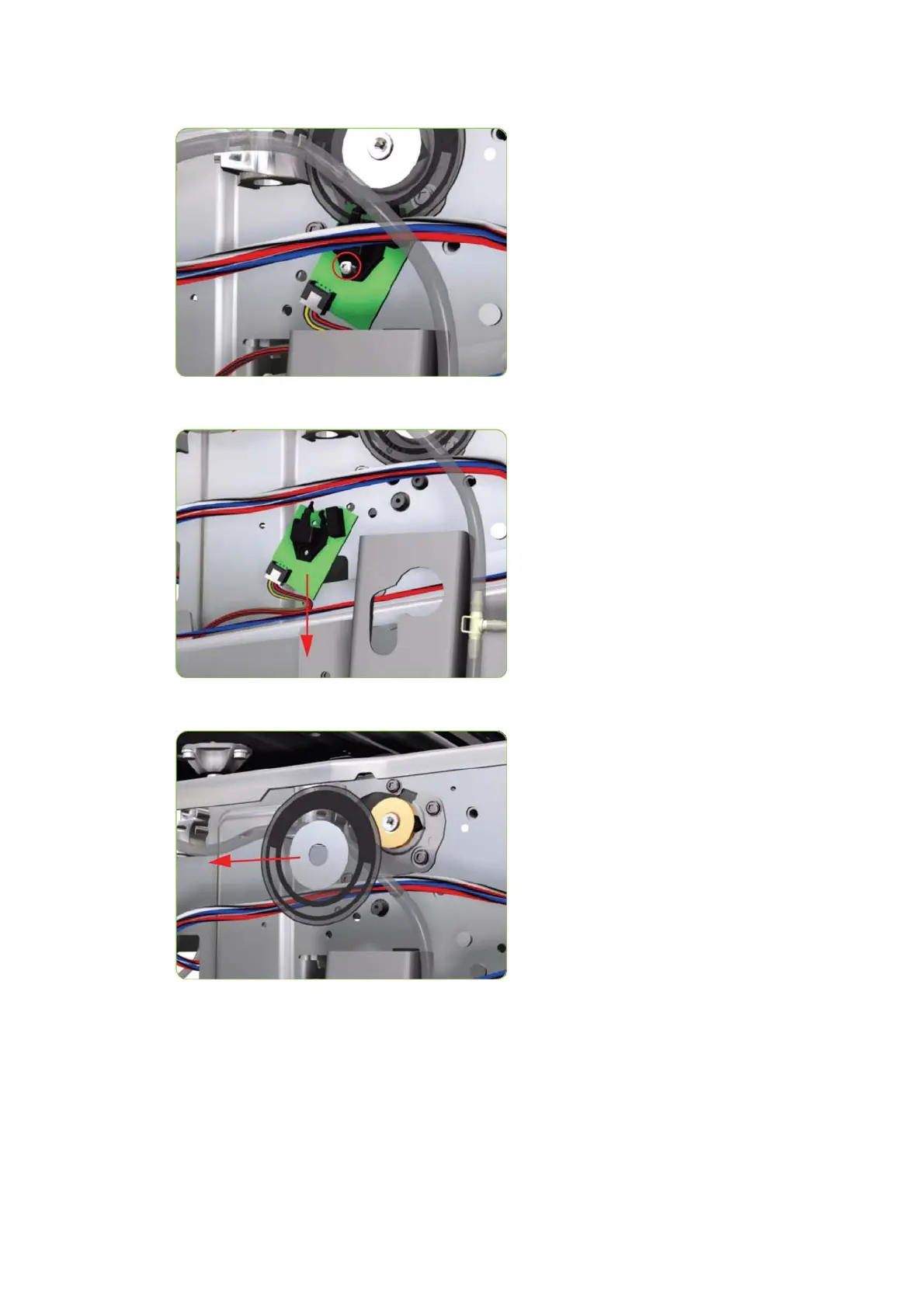

8. Remove one T-8 screw (Type D) that secures the Encoder Sensor to the Chassis.
9. Remove the Encoder Sensor from the printer.
10. Carefully peel the Encoder Disc from the Drive Roller.
Interconnect Cables
Removal
1. Disconnect the Interconnect Cable from the Interconnect PCA.
388 Chapter 9 Printer part removal and installation ENWW
