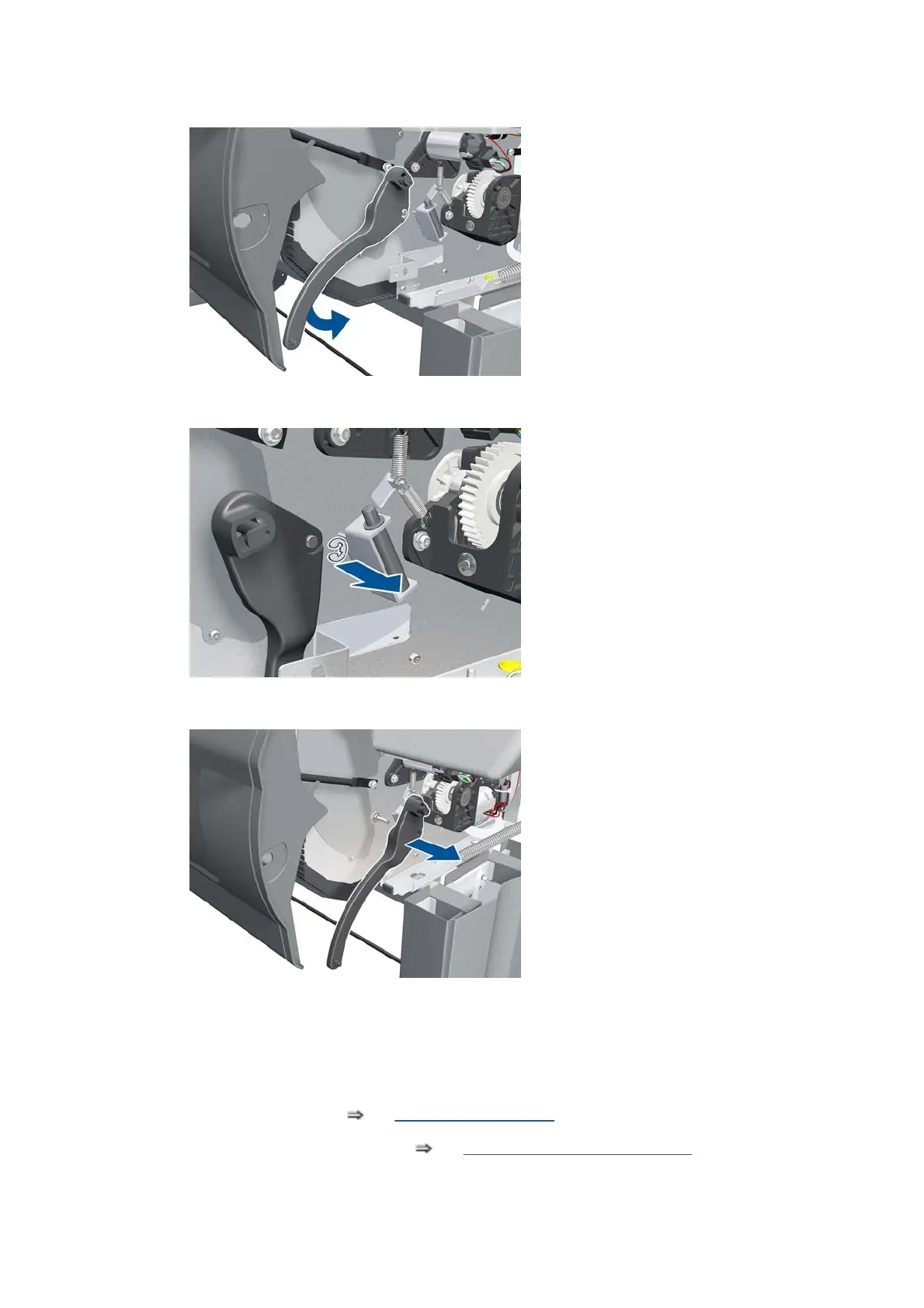

5. Move each Smart Roll-loading System Door Arm downwards, away from the door.
6. Remove the circlip, using pliers if necessary.
7. Remove the Smart Roll-loading System Door Arm.
Rewinder Gear and Motor
Removal
1. Unload the paper.
2. Remove the Right Cover
See Cover, Right on page 213.
3. Remove the Right Connector Cover
See Connector Cover, Right on page 224.
ENWW Disassembly order 259
