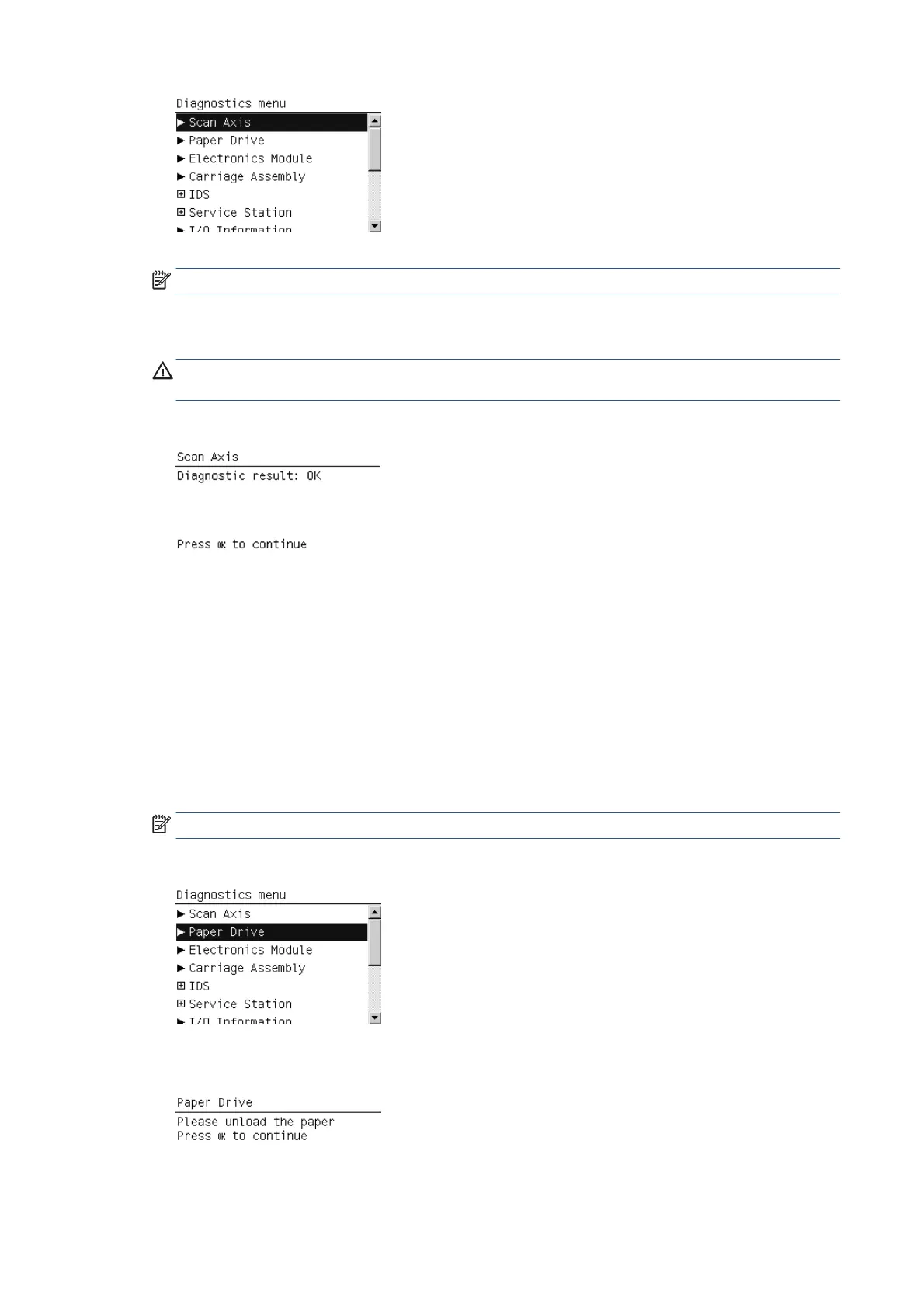

The diagnostic starts checking the Scan Axis motor; the front panel announces the current activity.
NOTE: The Carriage may move repeatedly during the tests.
2. Depending on the results of the tests, you may be asked to open the Window, close the Window, or
move the Carriage manually. Follow the instructions on the front panel.
CAUTION: The Carriage should move easily, without resistance. If you feel resistance, do not try to
force it: you may damage something.
3. When the tests are successfully completed, the following message is displayed.
4. Press OK to return to the menu.
Paper Drive test
The purpose of this test is to diagnose a failure in the operation of components related to the Paper Axis.
You must perform the Paper Drive Test after:
●
System Error Code 81:YX
●
System Error Code 41:YX
●
System Error Code 73:YX
NOTE: If possible always perform this test before replacing any component of the media-axis.
1. In the Diagnostics submenu, scroll to Paper Drive and press OK.
2. The front panel asks you to unload the paper. If there is a roll loaded, unload it manually. Press OK
when done.
84 Chapter 5 Service tests and utilities ENWW
