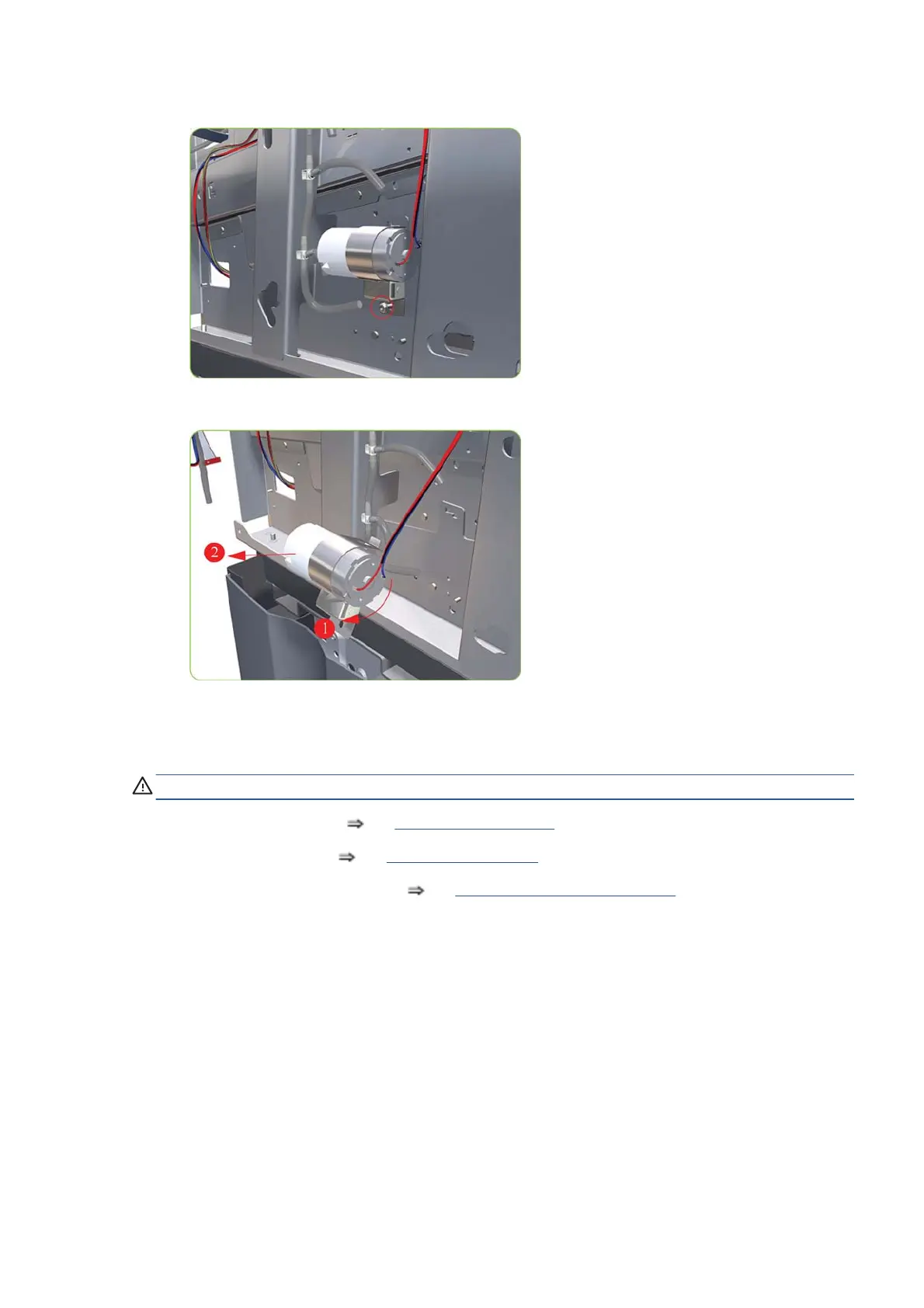

18. Remove one T-20 attachment screw from APS 1 (Top unit).
19. Remove APS 2 (Bottom unit) from the printer.
Scan-Axis Motor
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Cover, Right on page 213.
2. Remove the Left Cover
See Cover, Left on page 215.
3. Remove the Left Connector Cover
See Connector Cover, Left on page 225.
ENWW Disassembly order 309
