HP Designjet T7200

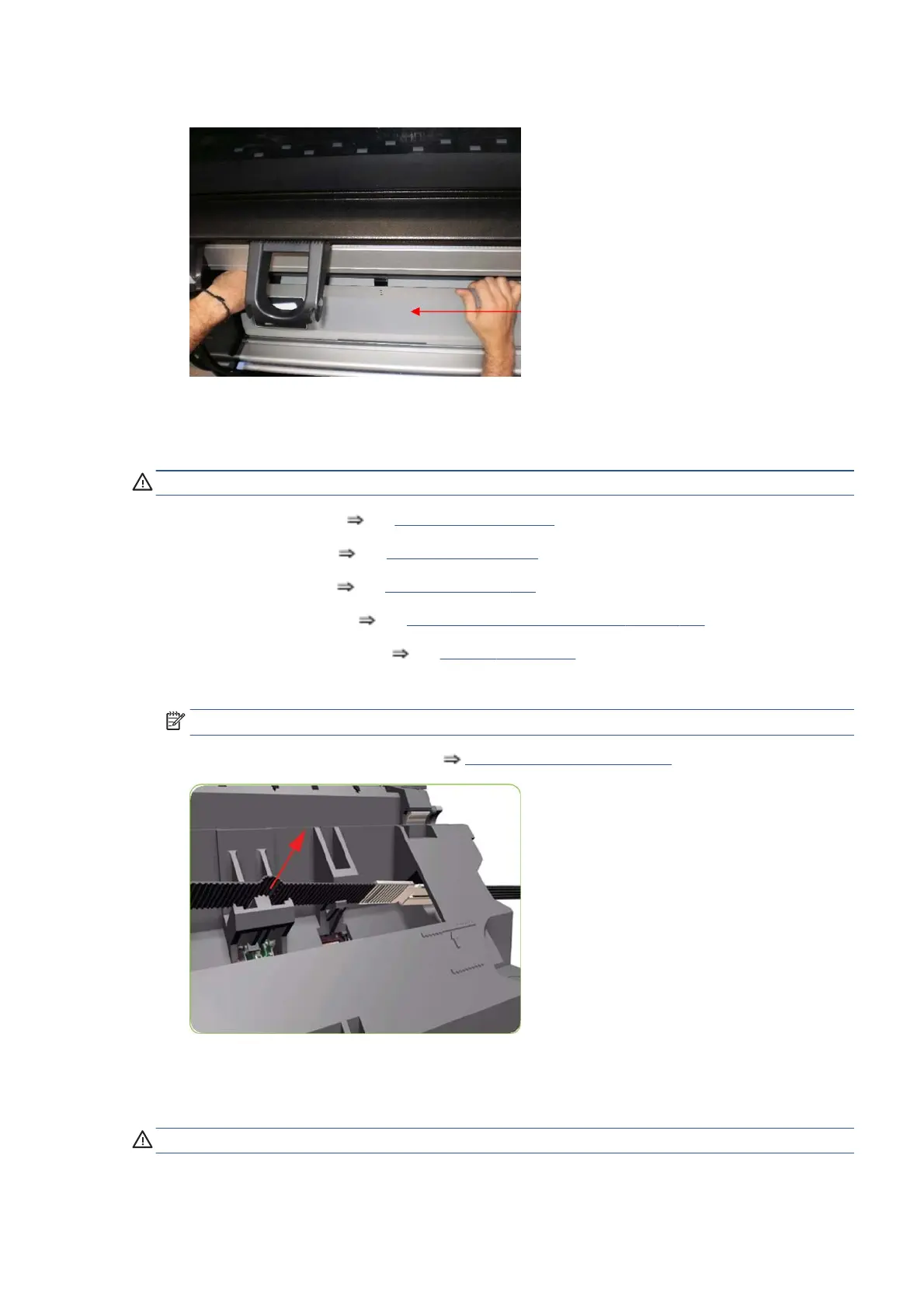

3. Remove the Cosmetic Sheet Metal and Separator.
Belt Assembly
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Cover, Right on page 213.
2. Remove the Left Cover
See Cover, Left on page 215.
3. Remove the Top Cover
See Cover, Top on page 219.
4. Remove the Encoder Strip
See Encoder Strip and Encoder Sensor on page 282.
5. Remove the Carriage Assembly
See Carriage on page 270.
6. Release the Belt from the bottom of the Carriage Assembly.
NOTE: After installing the new Belt Assembly, make sure you perform the following Service Utility:
●
Reset life counter scan cycles belt
Reset Life Counters on page 103.
Window Position Sensor
Removal
WARNING! Switch off the printer and remove the power cable.
ENWW Disassembly order 327
