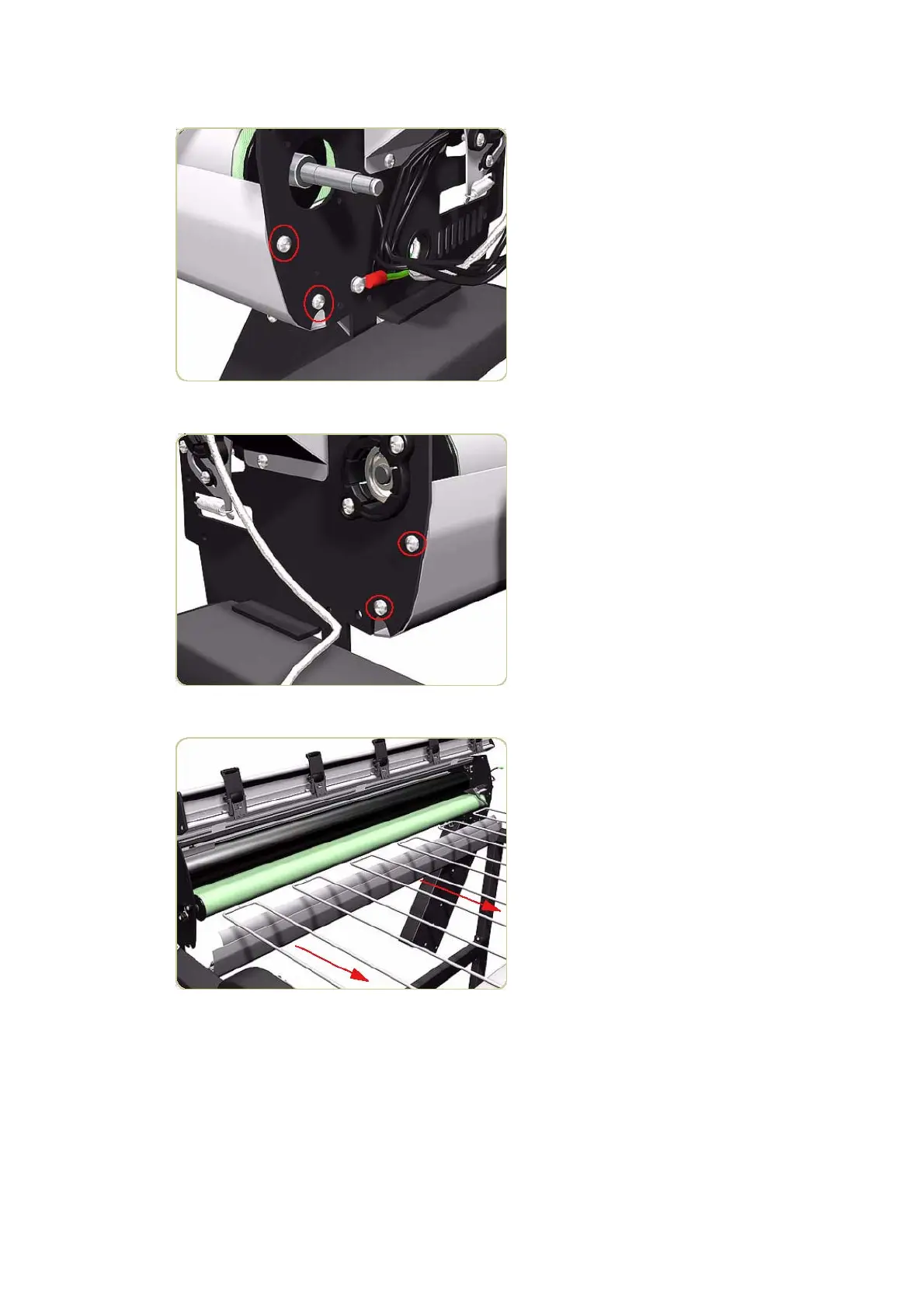

15. Remove two screws that secure the Lower Front Cover from the right side of the stacker.
16. Remove two screws that secure the Lower Front Cover from the left side of the stacker.
17. Remove the Lower Front Cover.
Pinchwheels
Removal
1. Switch off the stacker and remove the power cable.
412 Chapter 10 Stacker part removal and installation ENWW
