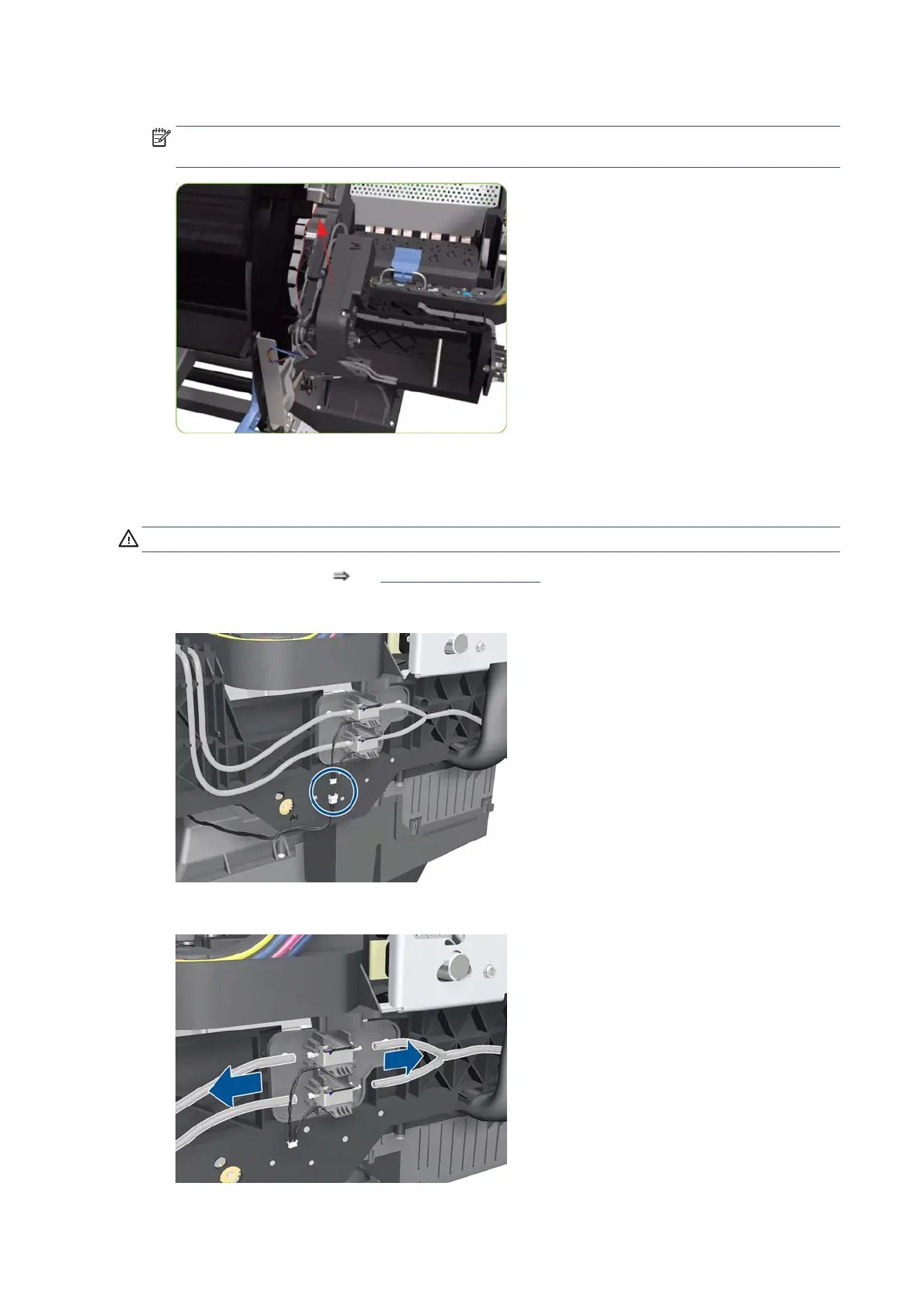

8. Remove the Primer Assembly from the Service Station.
NOTE: When installing the Primer Assembly, use the identification marks on the Primer Assembly
Tubes to ensure they are correctly connected.
Primer Valves
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Cover, Right on page 213.
2. Disconnect the Primer Valve Cables.
3. Disconnect the Primer Valve tubes.
230 Chapter 9 Printer part removal and installation ENWW
