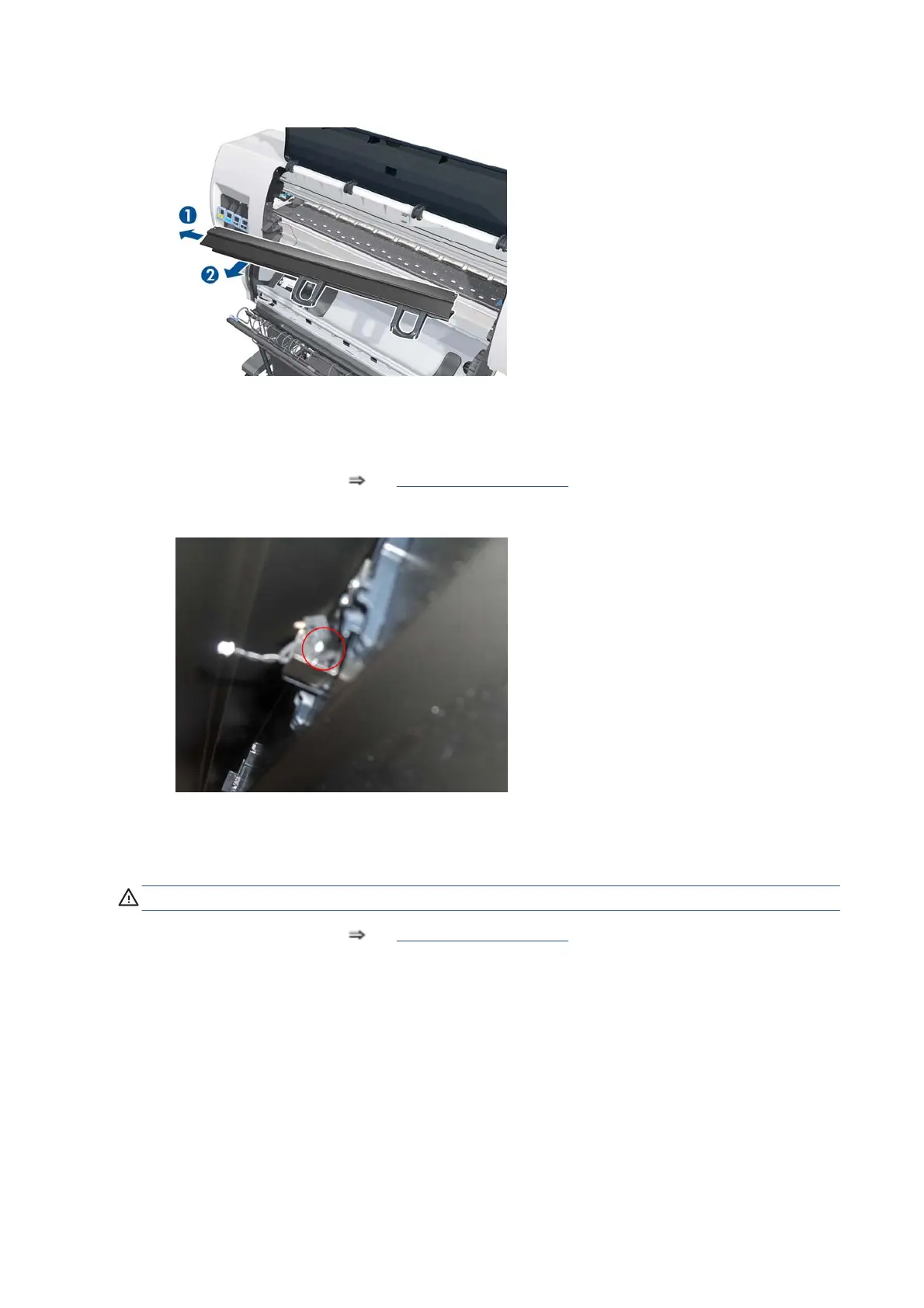

11. Remove the Output Platen.
Deflector and Stacker Switch
Removal
1. Remove the Output Platen
See Output Platen on page 318.
2. Inside the Output Platen, remove one T-8 screw, then remove the Switch Sensor.
Trim, Right
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Output Platen See Output Platen on page 318.
322 Chapter 9 Printer part removal and installation ENWW
