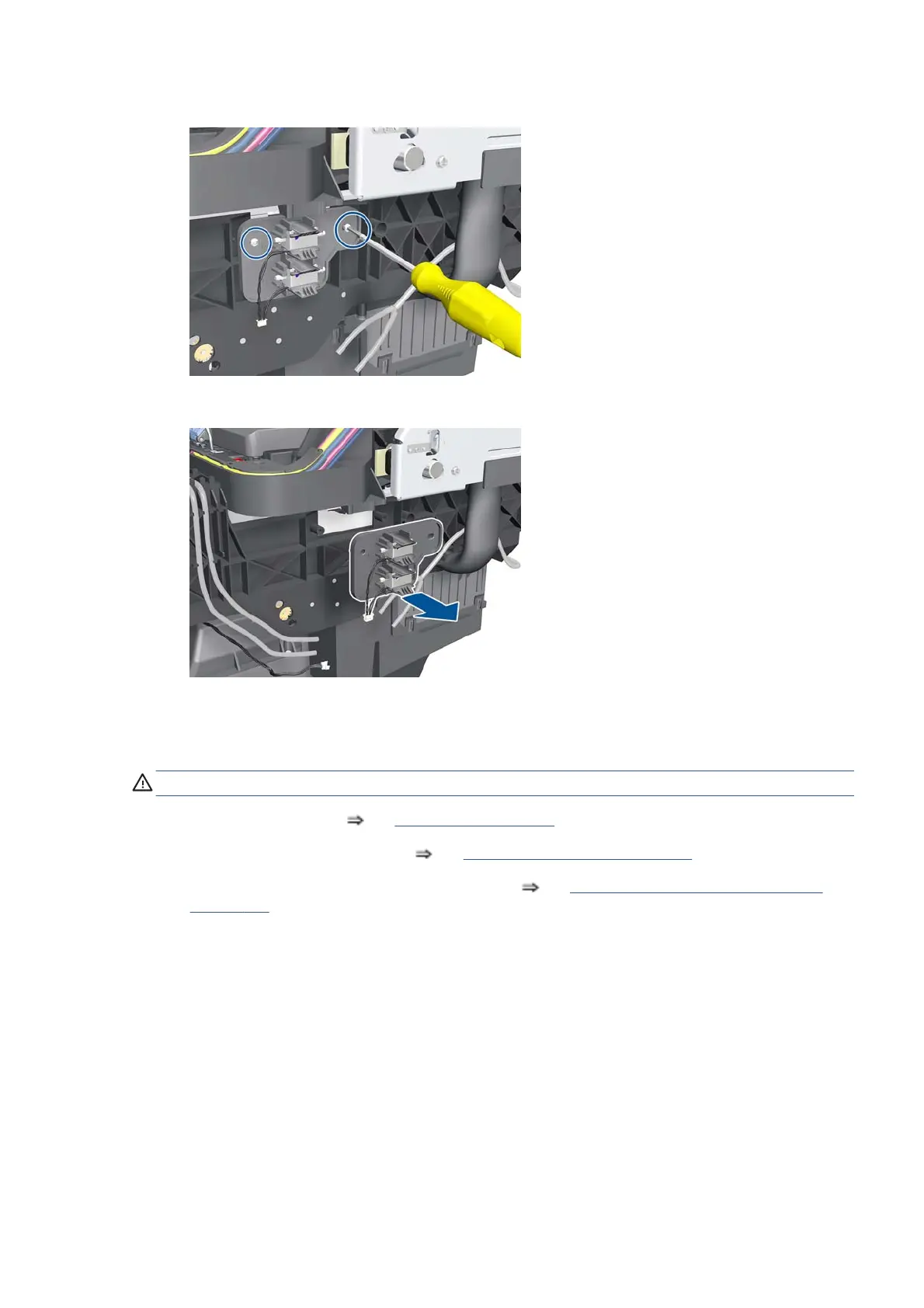

4. Remove two T-15 screws.
5. Remove the Primer Valves.
Primer Valve Cable
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Cover, Right on page 213.
2. Remove the Right Connector Cover
See Connector Cover, Right on page 224.
3. Remove the Right Smart Roll-loading System Cover
See Smart Roll-loading System Cover, Right
on page 245.
ENWW Disassembly order 231
