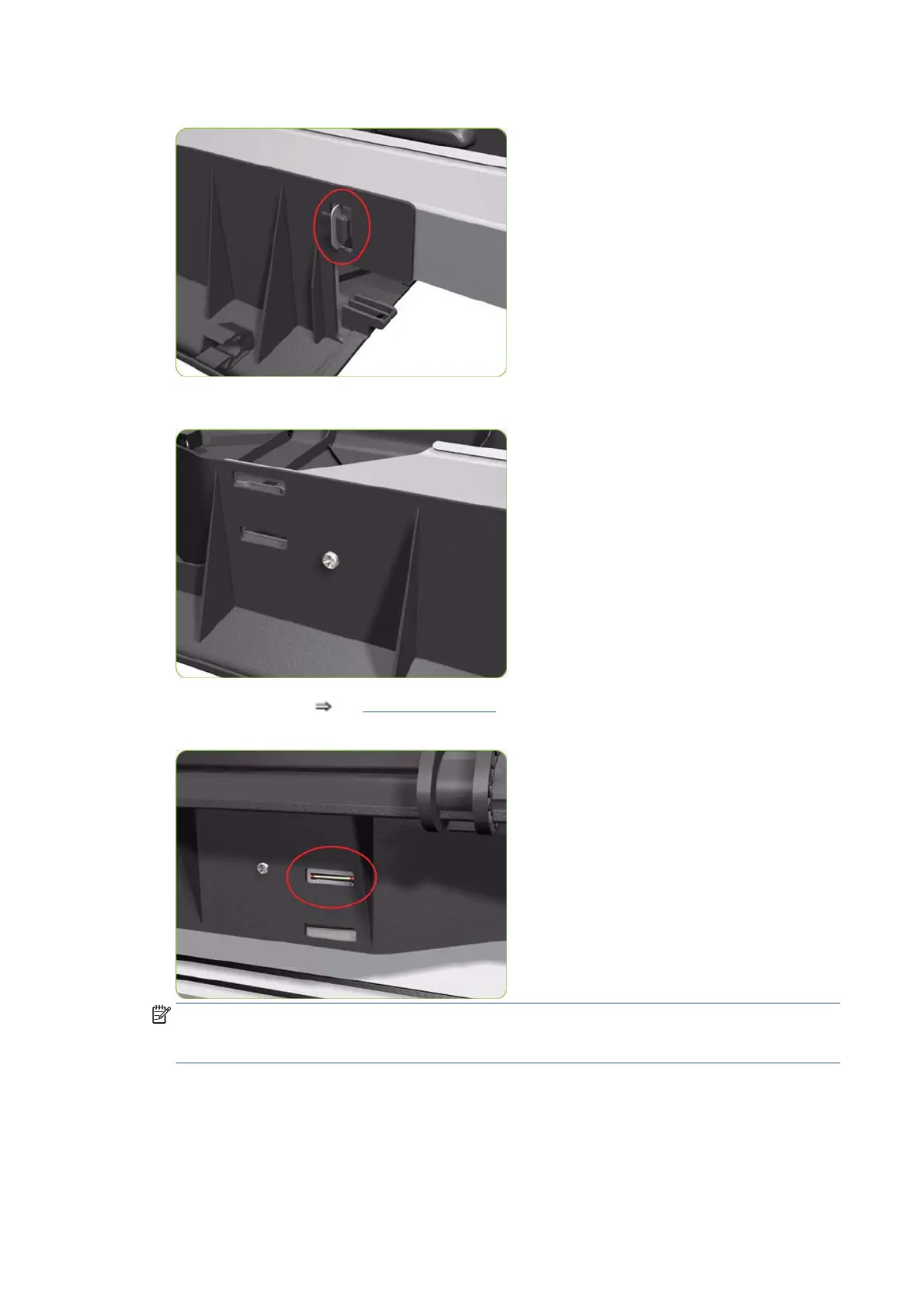

2. Lock the Metallic Support on to the Top Cover.
3. Install the T-20 screw that secures the Metallic Support to the Top Cover.
4. Remove the Window ( See Window on page 217) from the old Top Cover and install it on the new Top
Cover.
NOTE: When installing the Ink Supply Tubes and Trailing Cable on to the Top Cover, take note of the of
the two red marks on the Ink Supply Tubes. These two red marks should be aligned with the first slot in
the Top Cover as this will help with the rest of the installation.
Connector Cover, Right
Removal
1. Remove two T-20 screws from the Right Connector Cover.
224 Chapter 9 Printer part removal and installation ENWW
