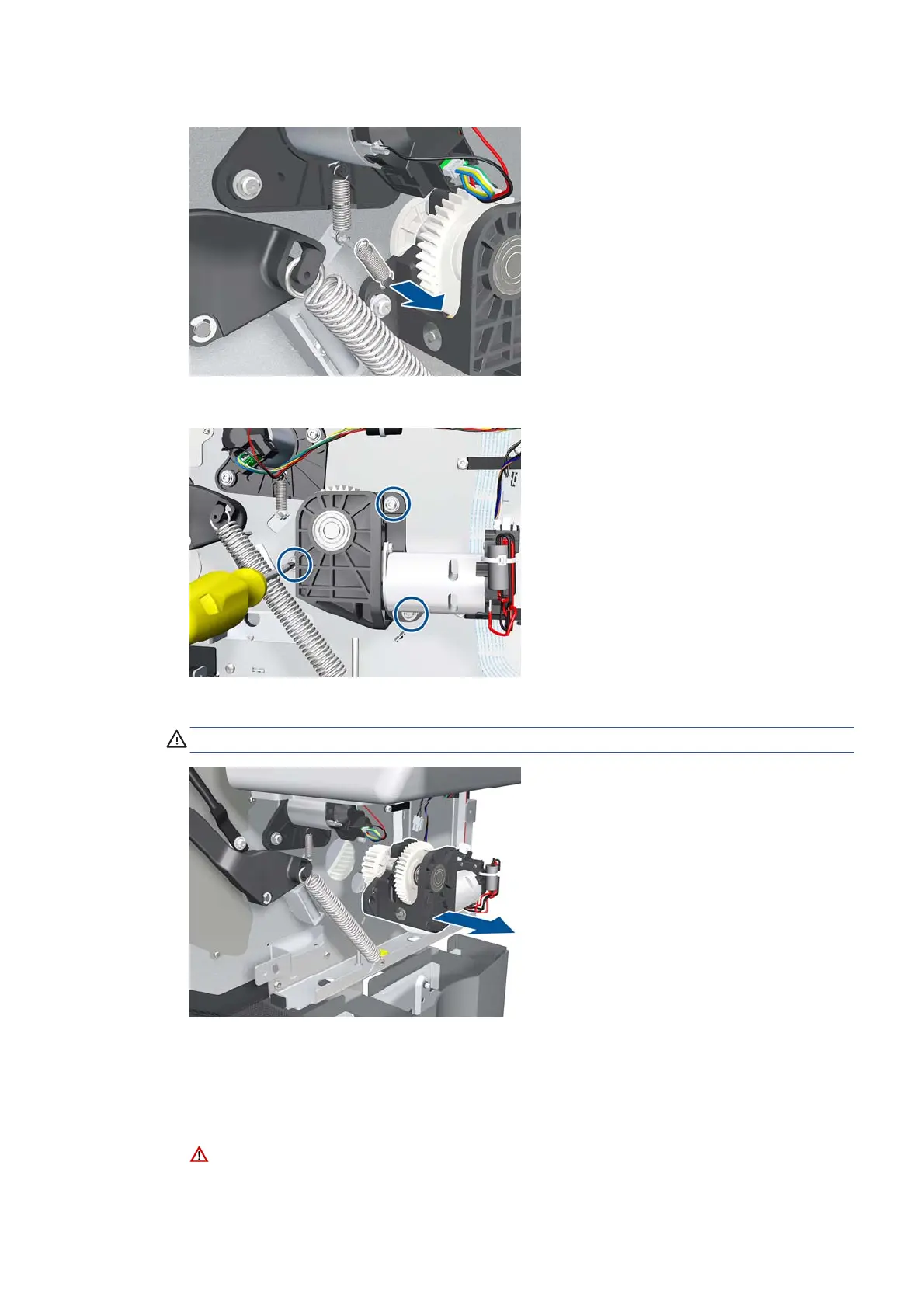

4. Remove the spring from the Smart Roll-loading System Motor.
5. Remove three T-20 screws.
6. Remove the Smart Roll-loading System Motor.
WARNING! The Smart Roll-loading System could rotate unexpectedly when you remove the Motor.
Smart Roll-loading System Gear
Removal
1. Open the Smart Roll-loading System Door.
2.
Remove all paper rolls from the printer.
ENWW Disassembly order 251
