Entry Platen
Removal
1. Remove the Left Rear Trim
See Rear Trim, Left on page 331.
2. Remove the Right Rear Trim
See Rear Trim, Right on page 332.
3. Remove the PW Cover
See PW Cover on page 331.

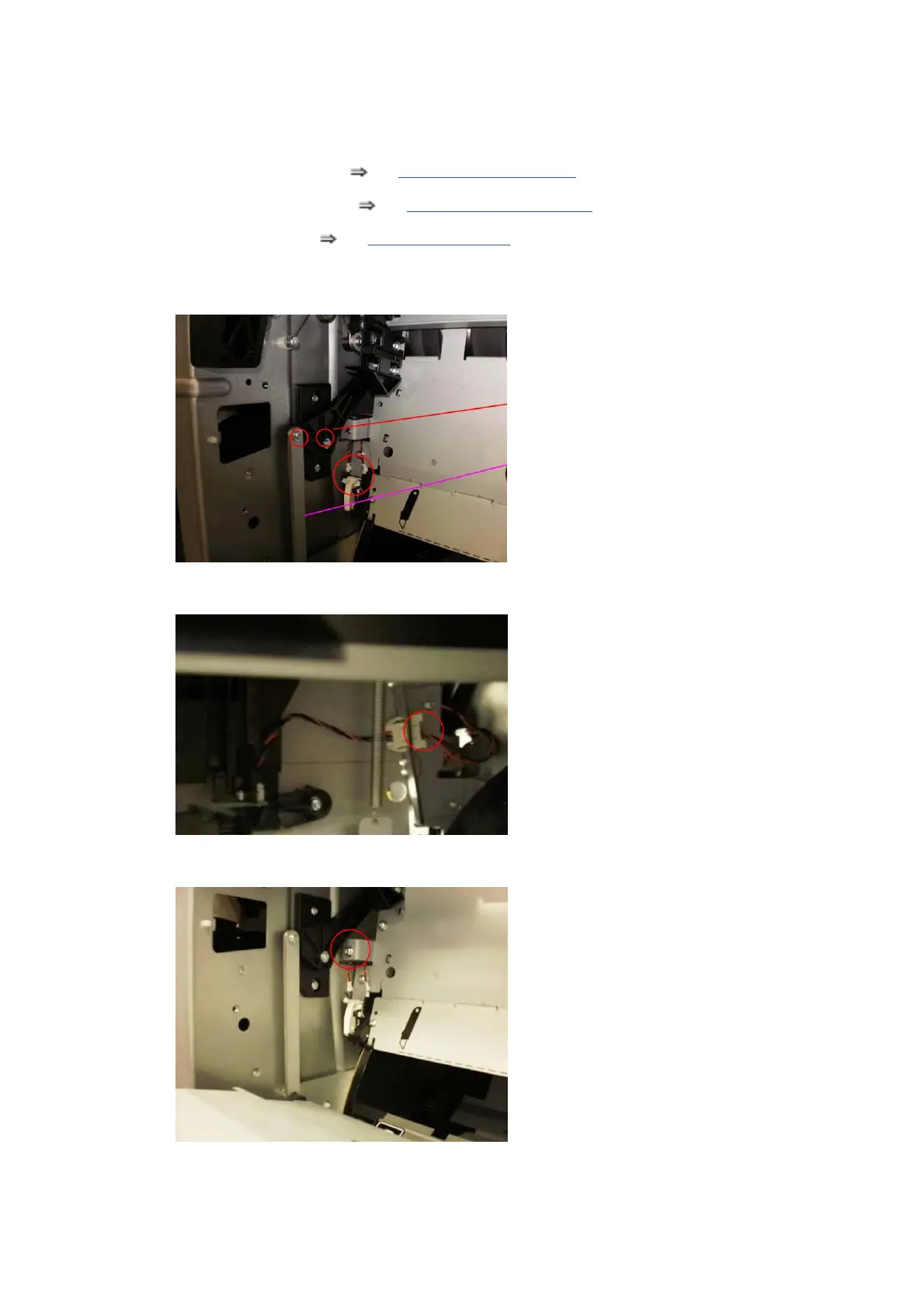

4. Disconnect two cables from the Entry Platen to the Interconnect PCA, remove a T-15 screw from the
Pinchwheel Double Lever and remove a T-15 screw from the PW Connecting Rod.
5. Disconnect the Media Sensor cable from the Entry Platen to the Interconnect PCA.
6. Remove one T-20 screw on the right.
338 Chapter 9 Printer part removal and installation ENWW
