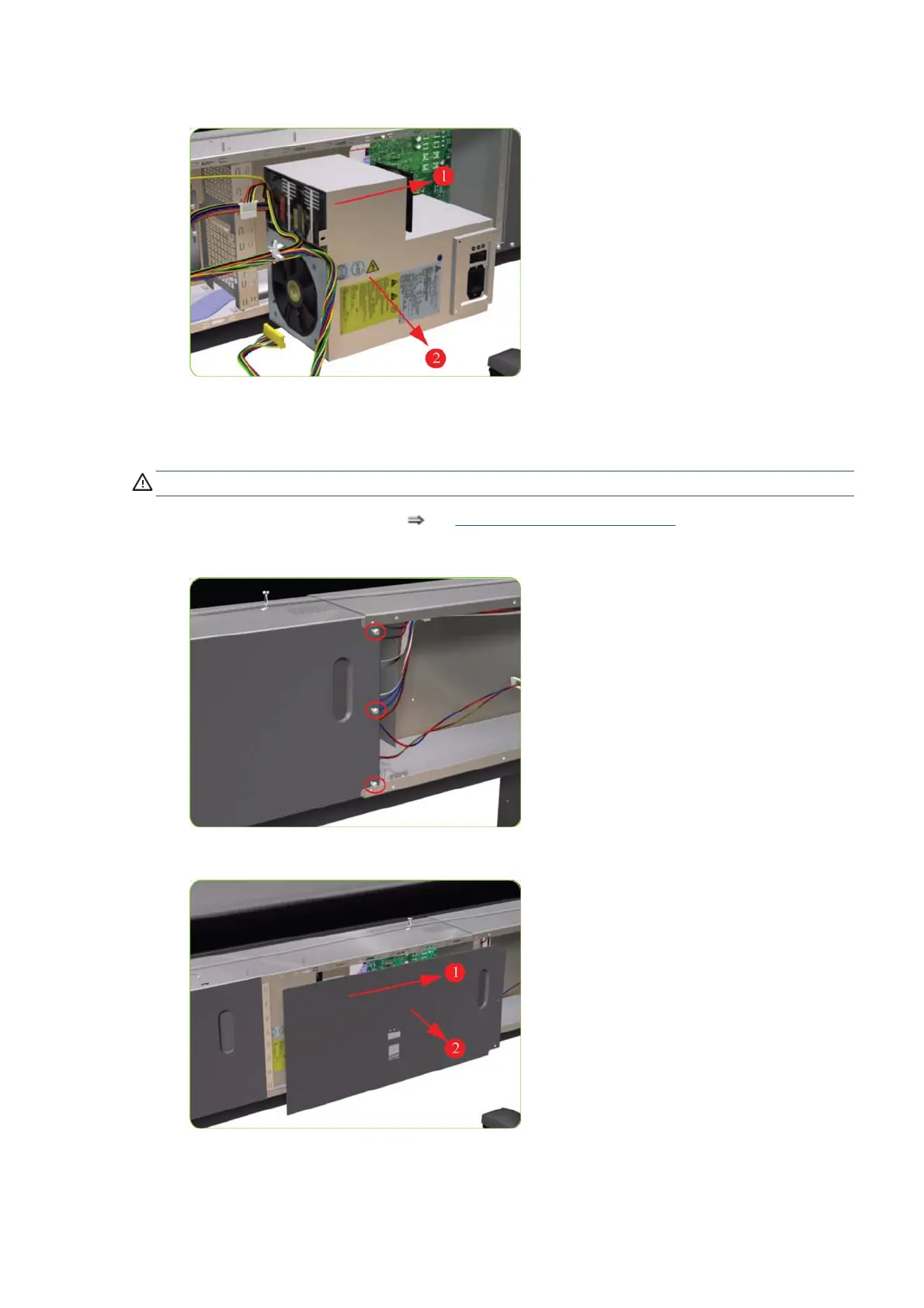

14. Remove the Power Supply Unit from the printer.
PrintMech PCA
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Left Connector Cover See Connector Cover, Left on page 225.
2. Remove three T-20 screws that secure the PSU Cover.
3. Remove the PSU Cover from the printer.
ENWW Disassembly order 371
