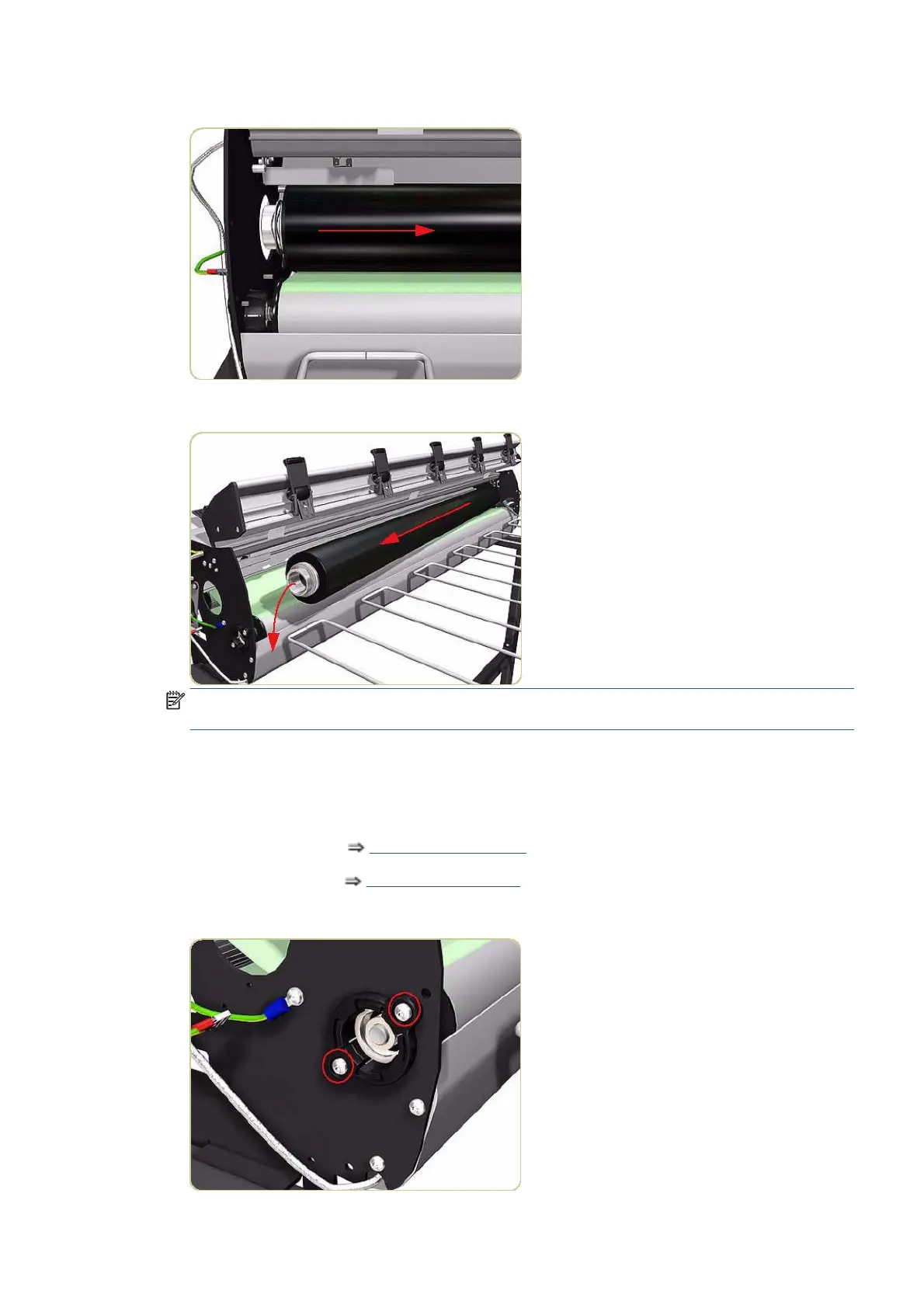

6. Slide the Heat Roller to the right.
7. Remove the Heat Roller.
NOTE: When installing the Heat Roller, make sure that the two bevel washers are on the right side of
the Heat Roller.
Transport Belt
Removal
1. Remove the Drive Motor
Drive Motor on page 414.
2. Remove the Heat Roller
Heat Roller on page 439.
3. Remove two screws that secure the Left Output Roller Bearing.
ENWW Transport Belt 441
