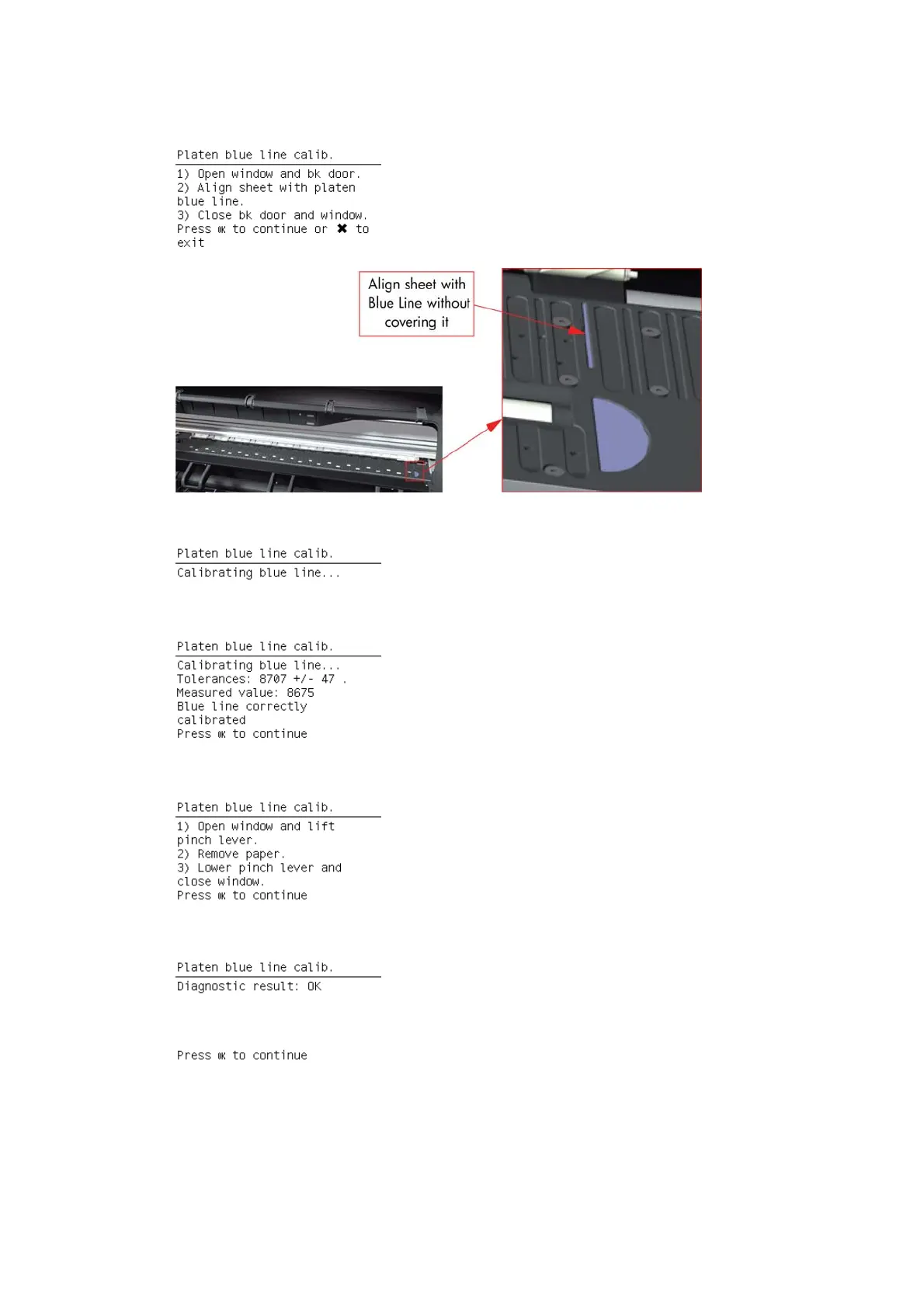

4. Follow the instructions on the front panel, using a sheet of white paper. Then press OK to continue with
the calibration, or Cancel to exit.
5. The printer starts to calibrate the blue line.
6. The results of the calibration are displayed on the front panel. Press OK to continue.
7. Follow the instructions on the front panel. Then press OK to continue.
8. The front panel announces the success of the calibration. Press OK to return to the menu.
OMAS Calibration
The purpose of this Service Calibration is to calibrate the OMAS Module. The calibration process consists of
printing a special calibration plot and then scanning it with the printer. The resulting scanned values are
compared with the actual printed values to obtain a PASS/FAIL result.
130 Chapter 6 Service calibrations ENWW
