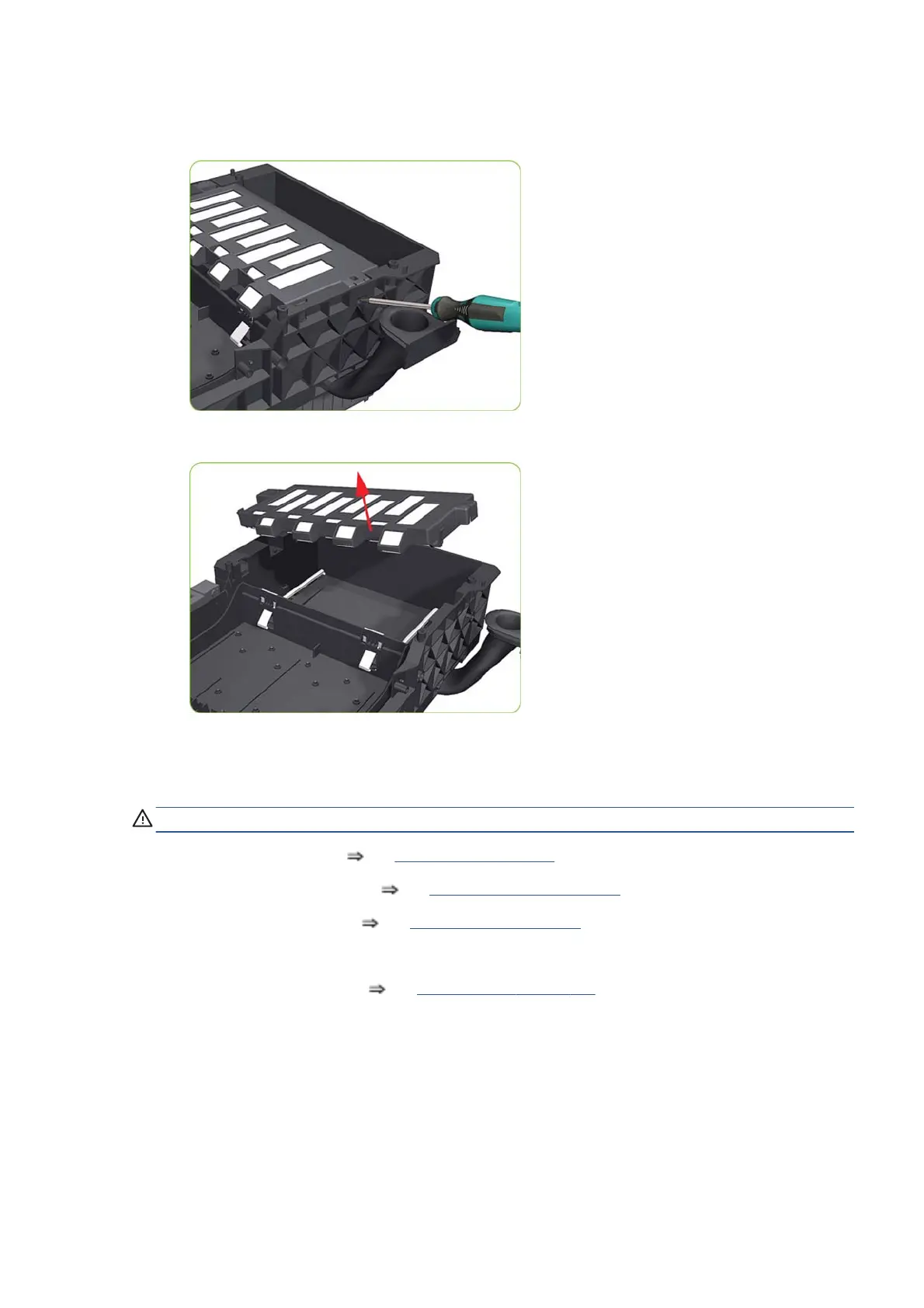

Removal of the Service Station Scraper
1. Release the clip securing the Scraper to the Service Station.
2. Remove the Scraper from the Service Station.
Vacuum Fan
Removal
WARNING! Switch off the printer and remove the power cable.
1. Remove the Right Cover See Cover, Right on page 213.
2. Remove the Primer Assembly
See Primer Assembly on page 228.
3. Remove the Primer Valves
See Primer Valves on page 230.
4. Remove the Maintenance Cartridge ⇒ See the User’s Guide.
5. Remove the Service Station
See Service Station on page 233.
ENWW Disassembly order 237
