HP Designjet T7200 - Drive Motor

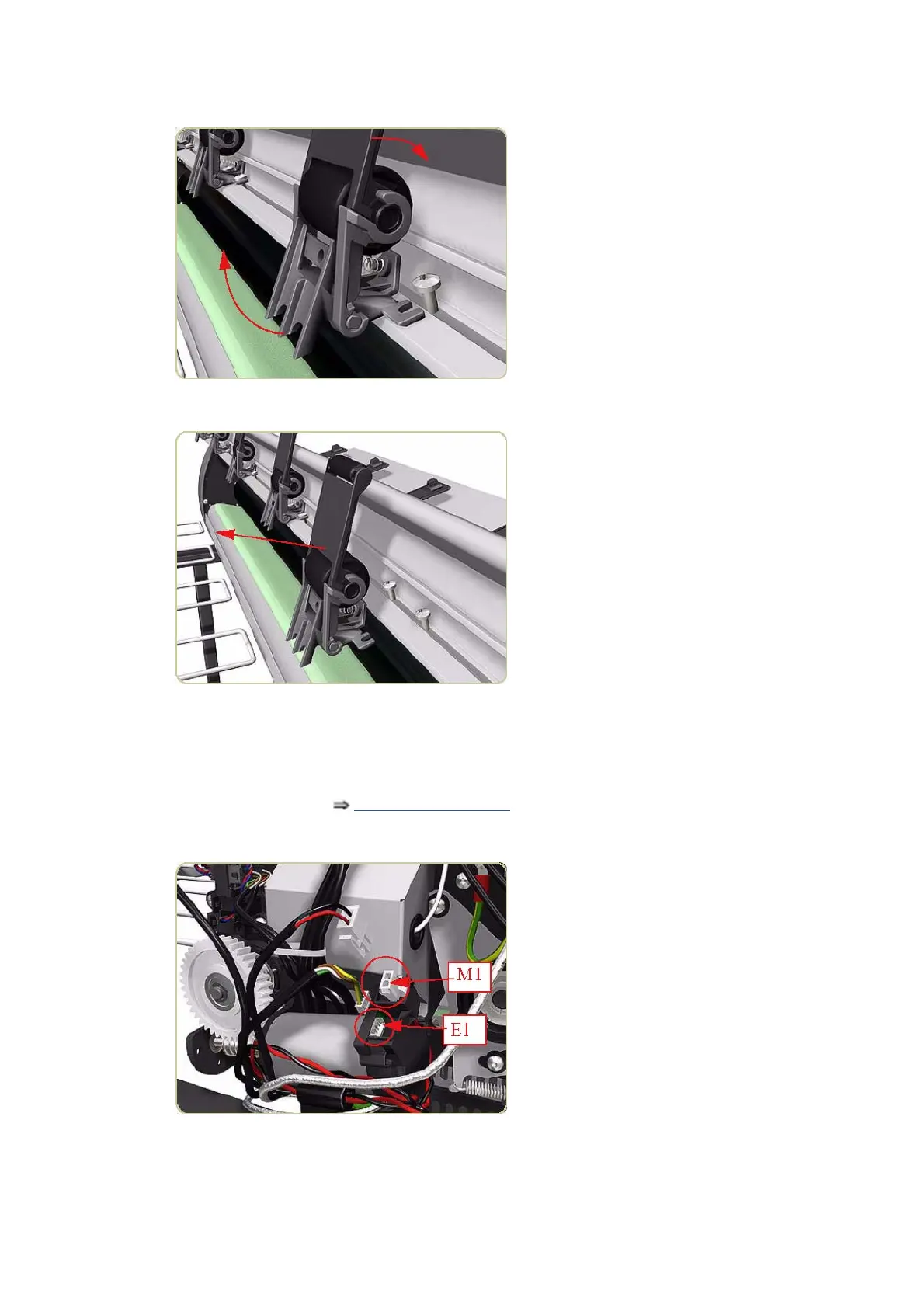

5. Rotate the bottom of the Pinchwheel slightly.
6. Remove the Pinchwheel.
Drive Motor
Removal
1. Remove the Right Cover
Right Cover on page 402.
2. Disconnect two cables from the Drive Motor.
414 Chapter 10 Stacker part removal and installation ENWW
