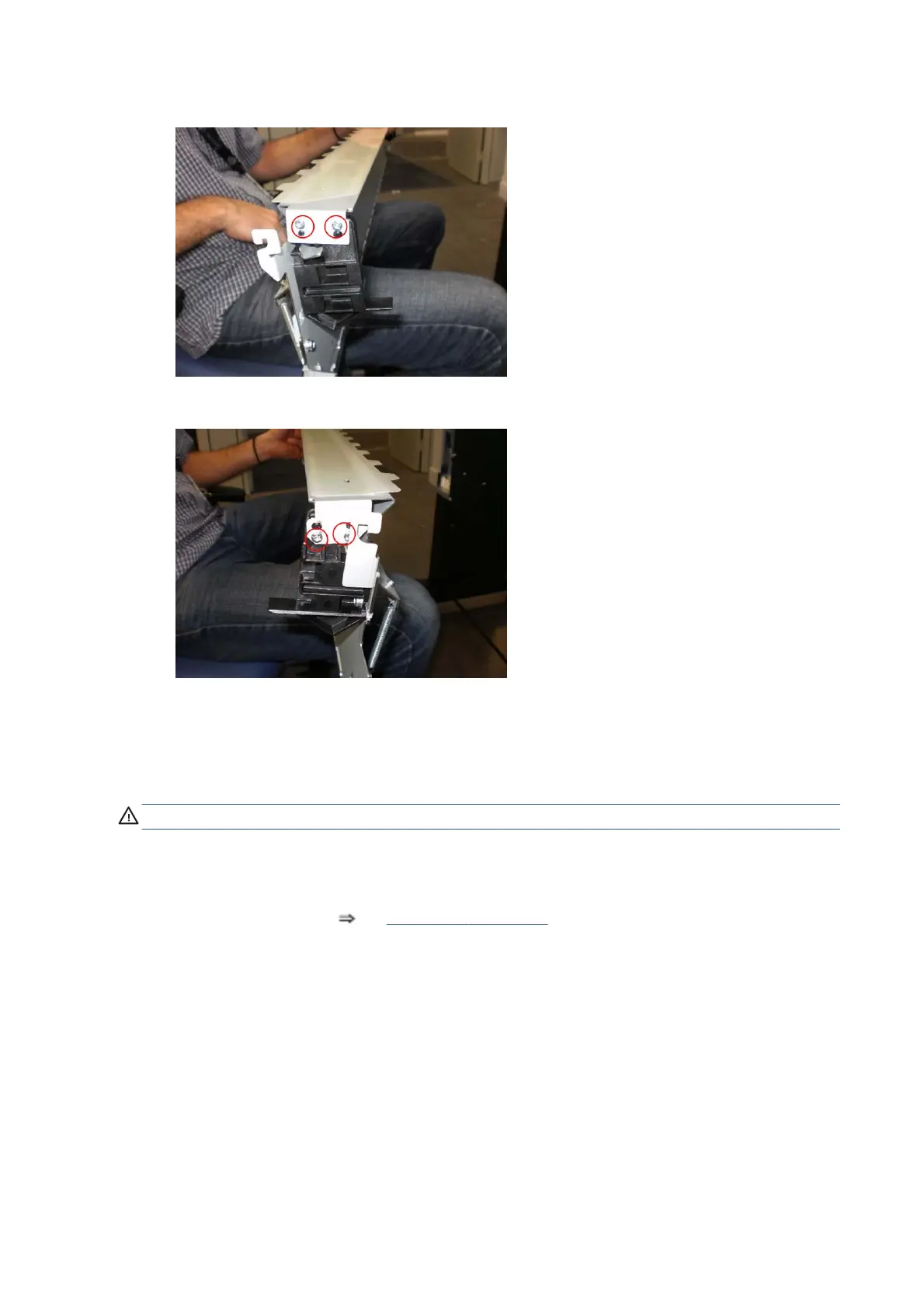

2. Remove two T-20 screws from the left side.
3. Remove two T-20 screws from the right side.
4. Remove the Roller Guide with Mylar from the Entry Platen.
Optical Media Advance Sensor (OMAS)
Removal
WARNING! Switch off the printer and remove the power cable.
1. Open the Rear Door.
2. Remove paper if loaded.
3. Remove the Entry Platen
See Entry Platen on page 338.
