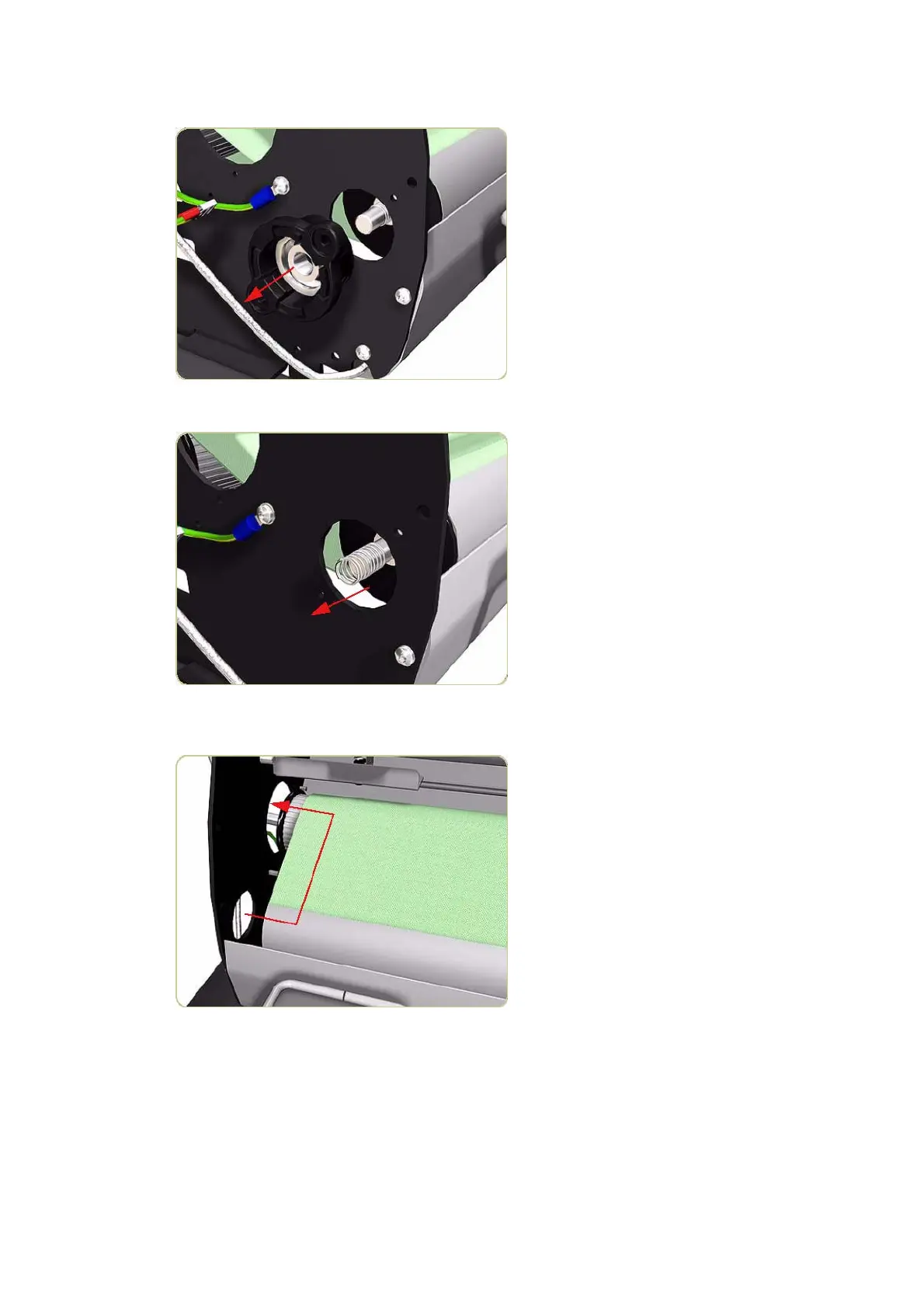

4. Remove the Left Output Roller Bearing.
5. Remove the spring from the end of the shaft.
6. Slide the left end of the Output Roller back towards the hole left empty when the Heat Roller was
removed.
442 Chapter 10 Stacker part removal and installation ENWW
