1. Remove the Right Cover See Cover, Right on page 213.
2. Remove the Left Cover
See Cover, Left on page 215.

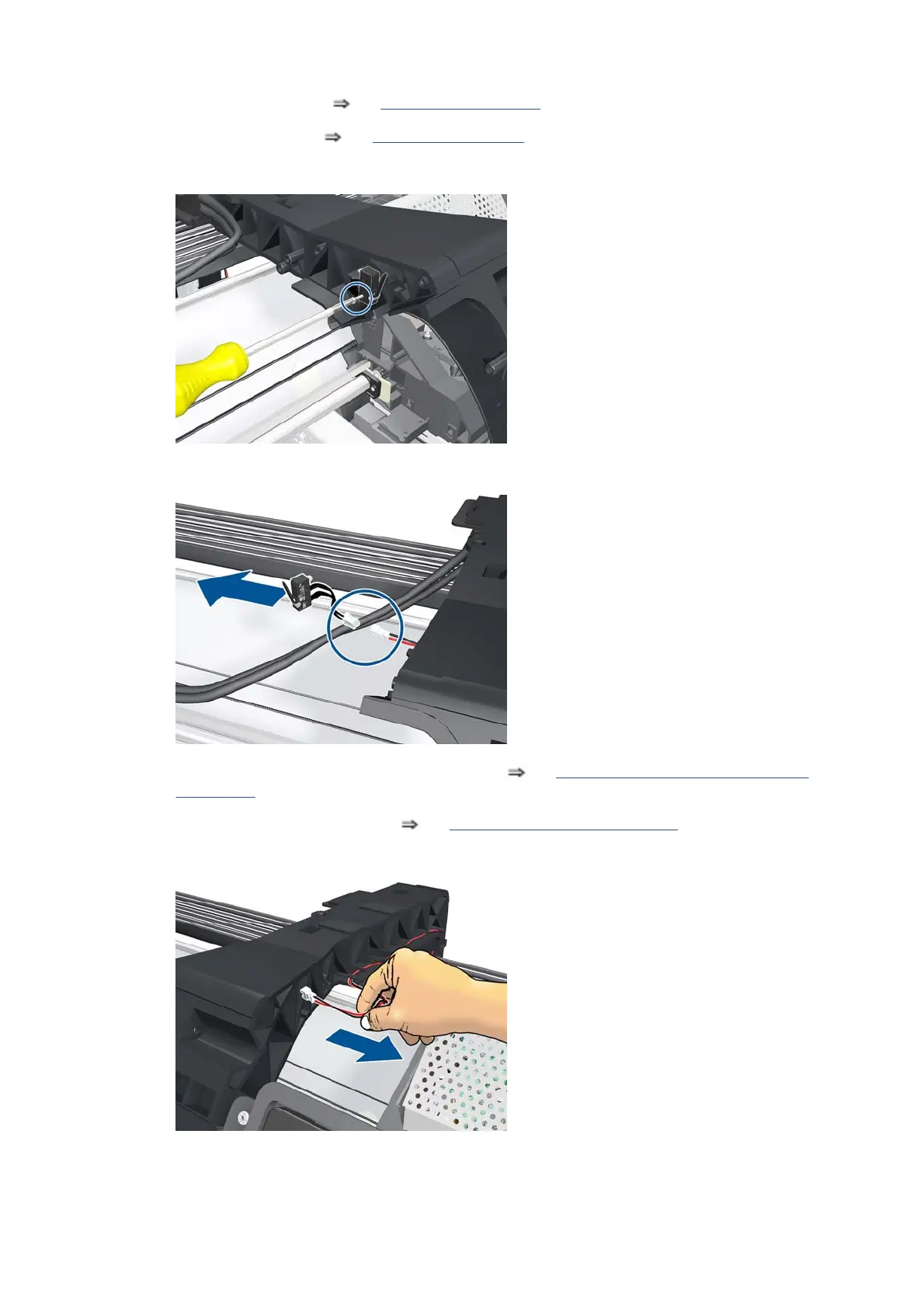

3. Remove a T-8 screw from the Window Position Sensor.
4. Disconnect and remove the Window Position Sensor.
5. Remove the Right Smart Roll-loading System Cover See Smart Roll-loading System Cover, Right
on page 245.
6. Remove the Right Connector Cover
See Connector Cover, Right on page 224.
7. Pull the cable through the hole.
328 Chapter 9 Printer part removal and installation ENWW
