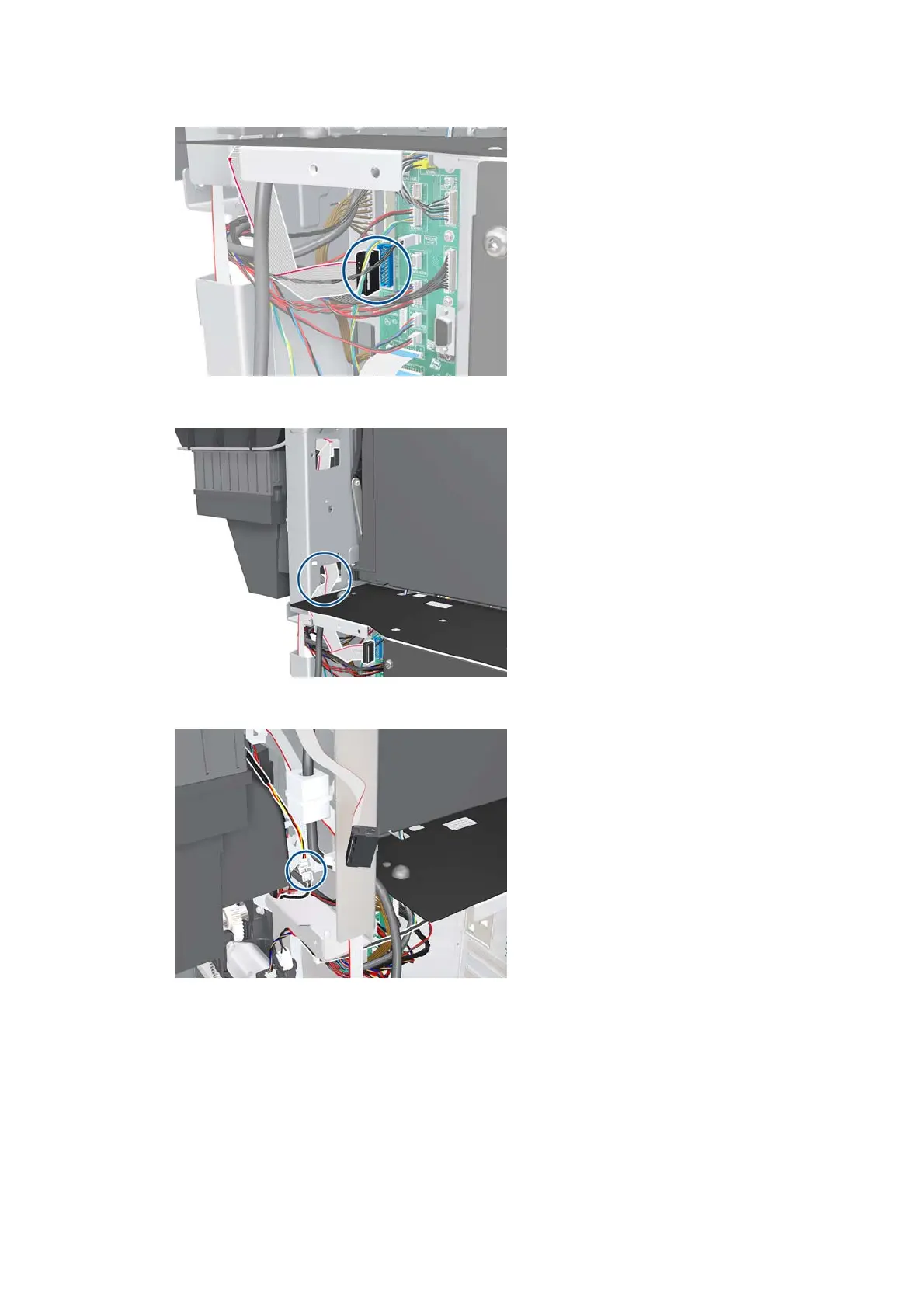

9. Disconnect the Service Station cable (labelled “SS and DD”) from the Interconnect PCA.
10. Unroute the Service Station cable.
11. Disconnect the Aerosol Fan cable.
234 Chapter 9 Printer part removal and installation ENWW
