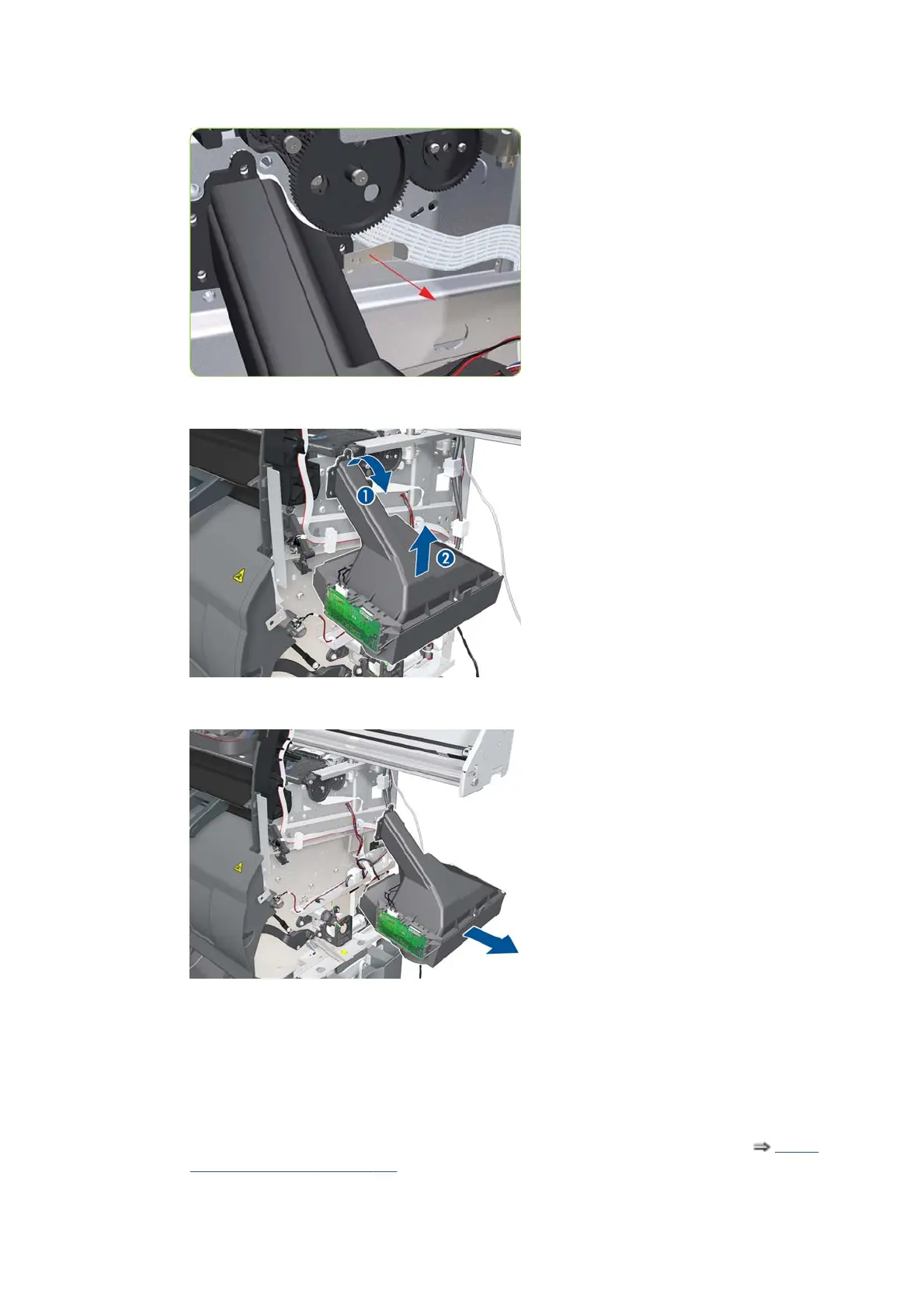

9. Remove the OMAS cable clamp from the printer.
10. Lower then lift the Vacuum Fan out of its attachment.
11. Remove the Vacuum Fan from the printer.
Installation
When connecting the Vacuum Fan cables to the Interconnect PCA, make sure you connect the cable with
the label marked Vacuum Fan 1 to connector 1 and the cable with the label marked Vacuum Fan 2 to
connector 2. You can check if both cables are labelled correctly by the actual markings on the Vacuum
Fan.
Make sure that the OMAS ribbon cable is free of slack when you install the cable clamp.
After installing the new Vacuum Fan, make sure you perform Paper-advance Calibration
Paper-
advance calibration on page 115.
ENWW Disassembly order 239
