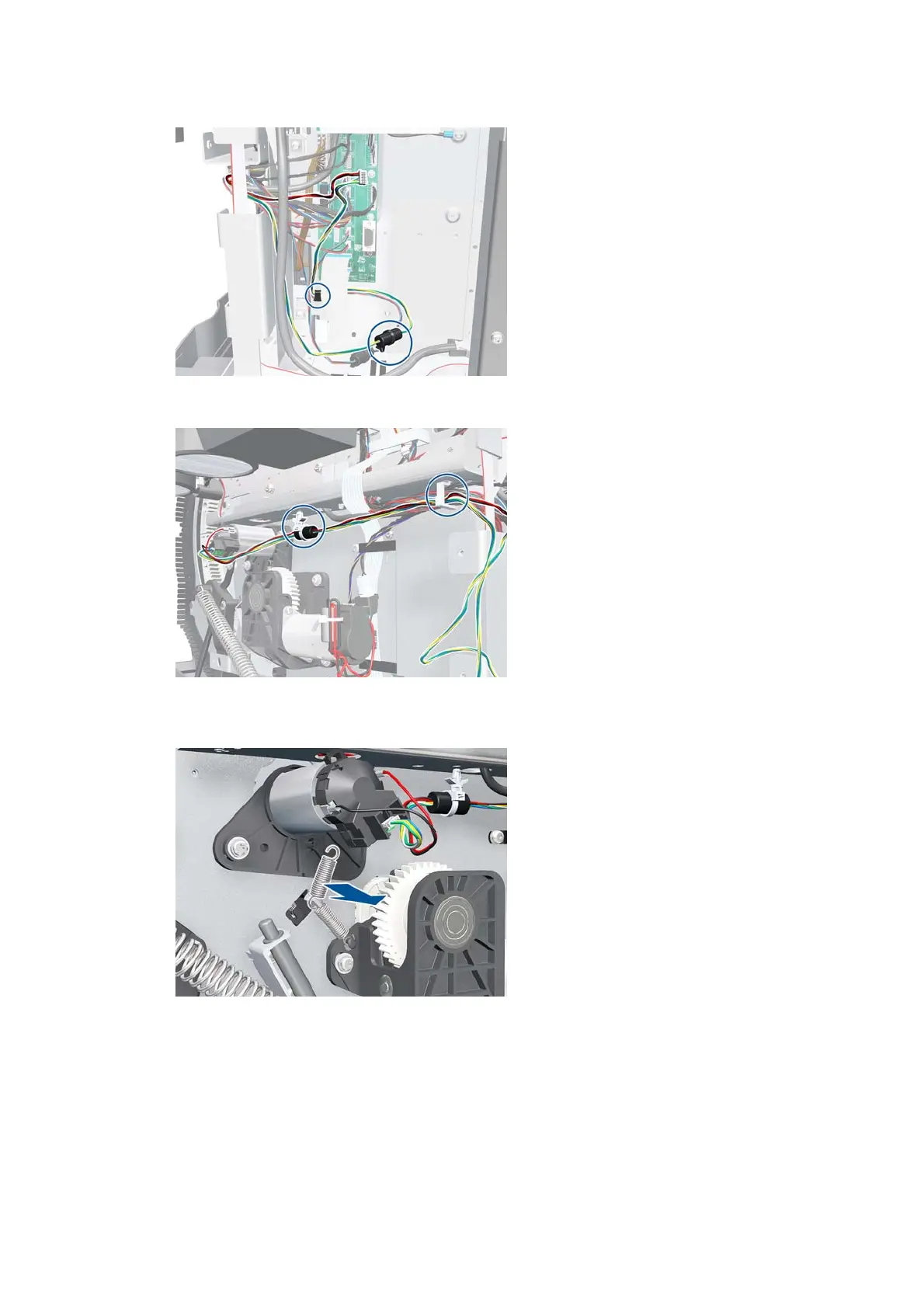

12. Unclip the cable and disconnect the ferrite.
13. Unroute the cable and disconnect the ferrite.
14. Remove the spring that holds the Rewinder Drive and Smart Roll-loading System Drive Motor. Be
careful not to lose the spring.
262 Chapter 9 Printer part removal and installation ENWW
