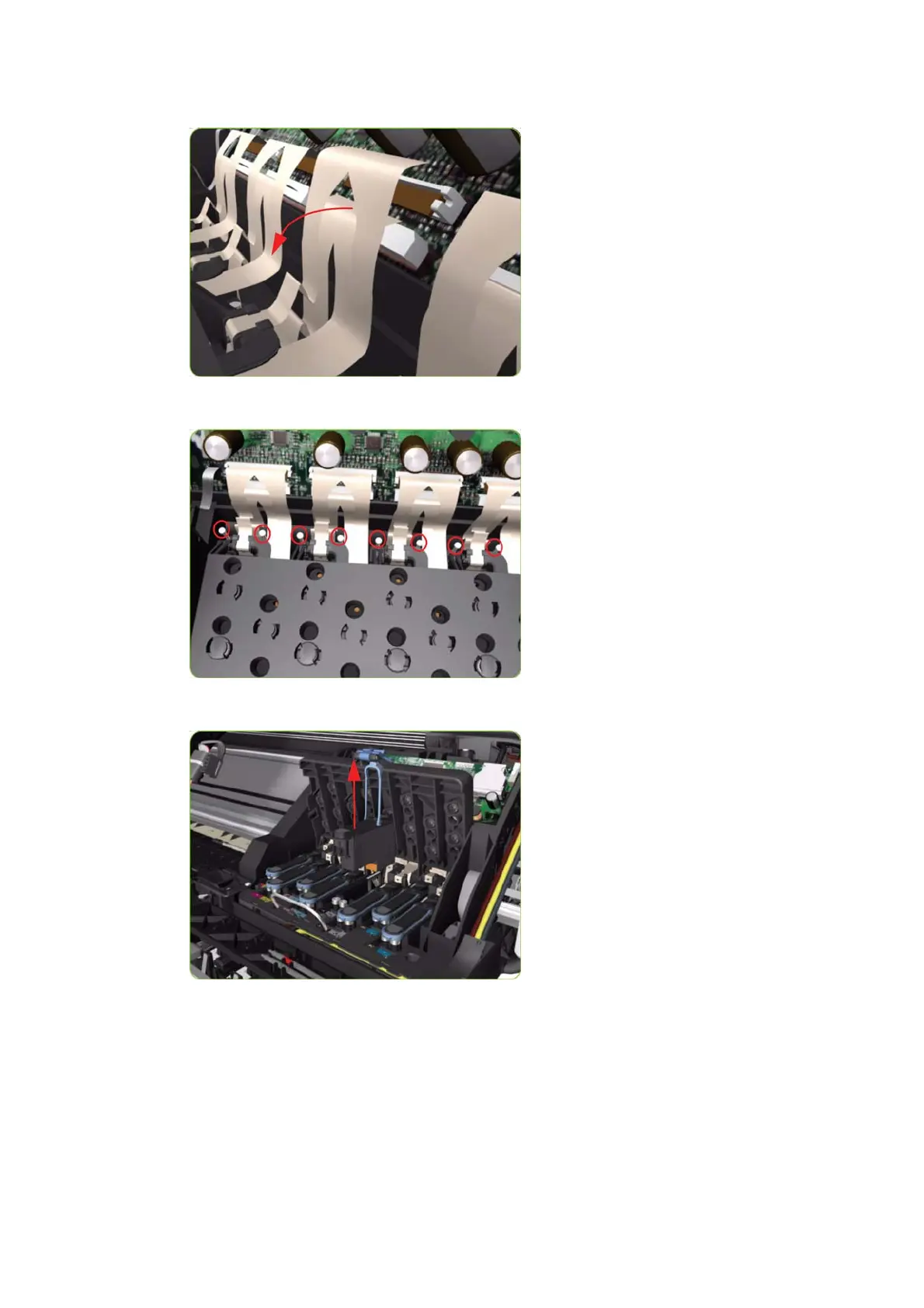

6. Remove eight T-8 screws (Type L) that secure the Carriage Flex Cables to the Carriage Assembly.
7. Open the Carriage Cover and remove all the Printheads from the Carriage Assembly.
8. Open the Carriage Cover and remove all the Printheads from the Carriage Assembly.
ENWW Disassembly order 281
