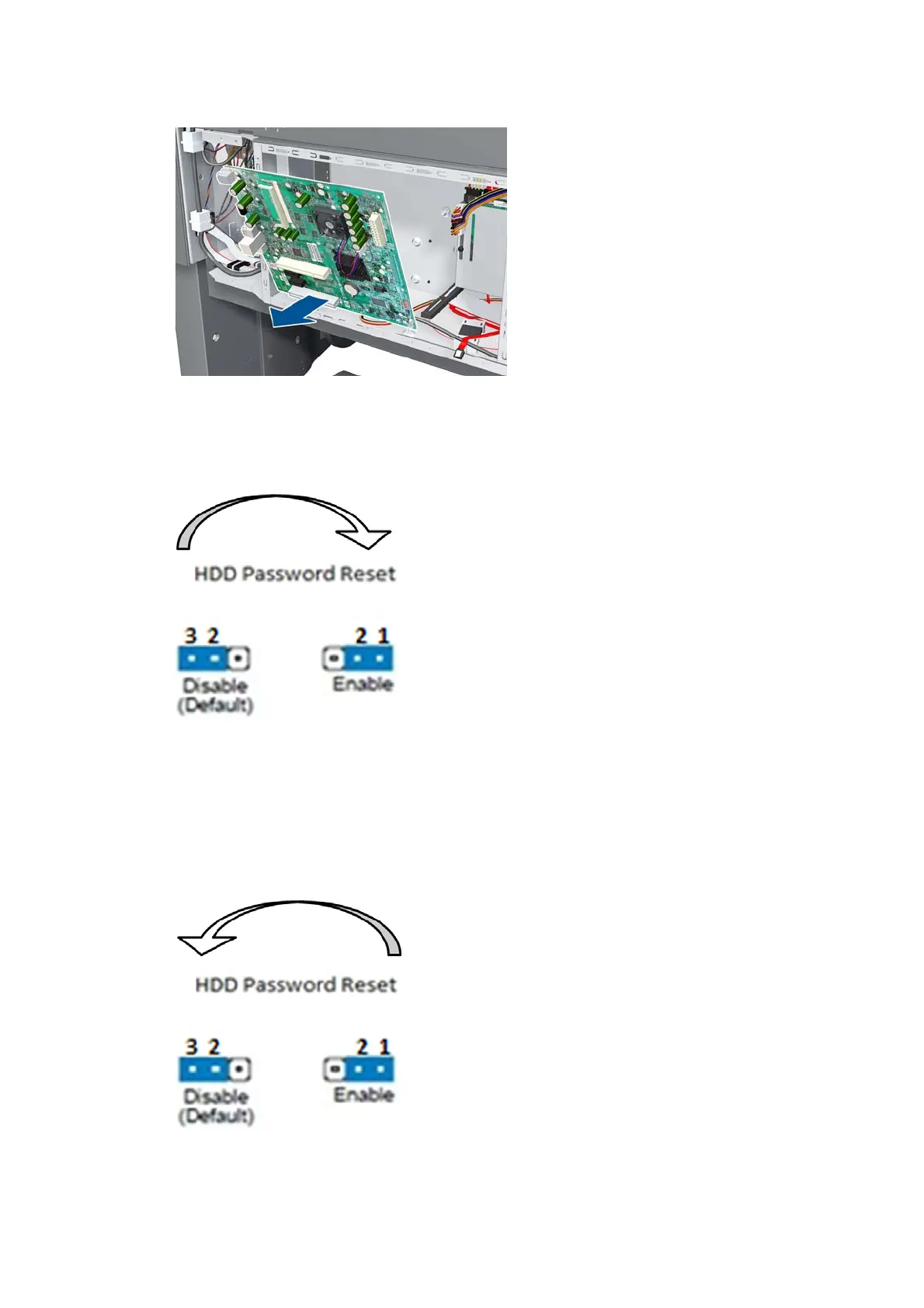

7. Remove the Formatter from the printer.
Installation (Rev B printers only)
1. Locate the Formatter on the plastic locating pin, then install the screws.
2. Move the jumper from the default connection to the password reset connection.
3. Cover the EBox temporarily, with a couple of screws to hold the cover in place.
4. Turn on the printer, wait until it has completely started up, then turn it off again.
5. When the printer is completely turned off, remove the power cable.
6. Remove the cover from the EBox.
7. Move the jumper from the password reset connection to the default connection.
8. Cover the EBox again.
362 Chapter 9 Printer part removal and installation ENWW
