HP Designjet T7200 - Page 406

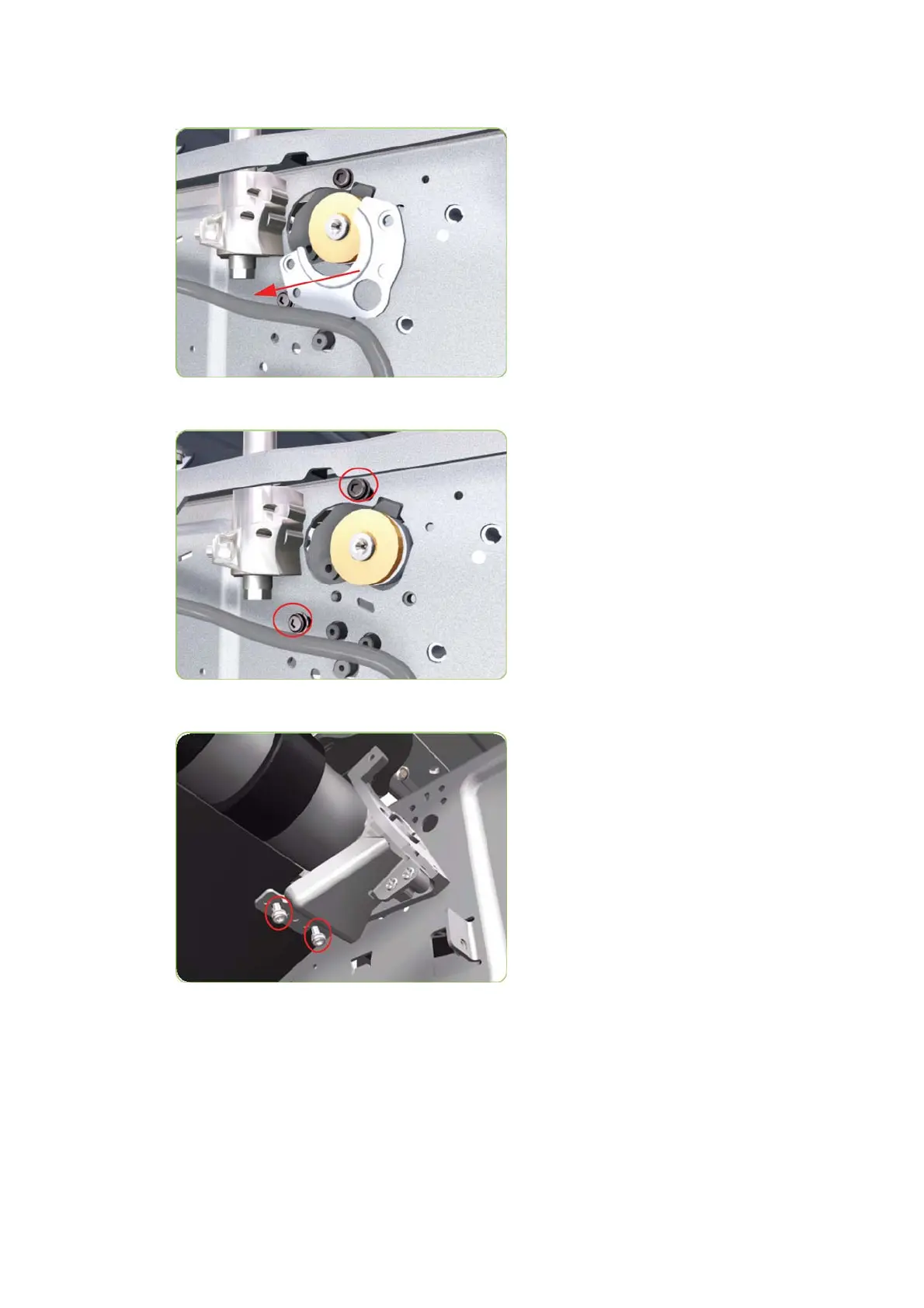

14. Remove the Cover.
15. Remove T-20 screws that secure the Media-Axis Motor Bracket to the side-plate.
16. Remove two T-20 screws (Type A) that secure the Media-Axis Motor Bracket to the Chassis.
396 Chapter 9 Printer part removal and installation ENWW
