HP Designjet T7200

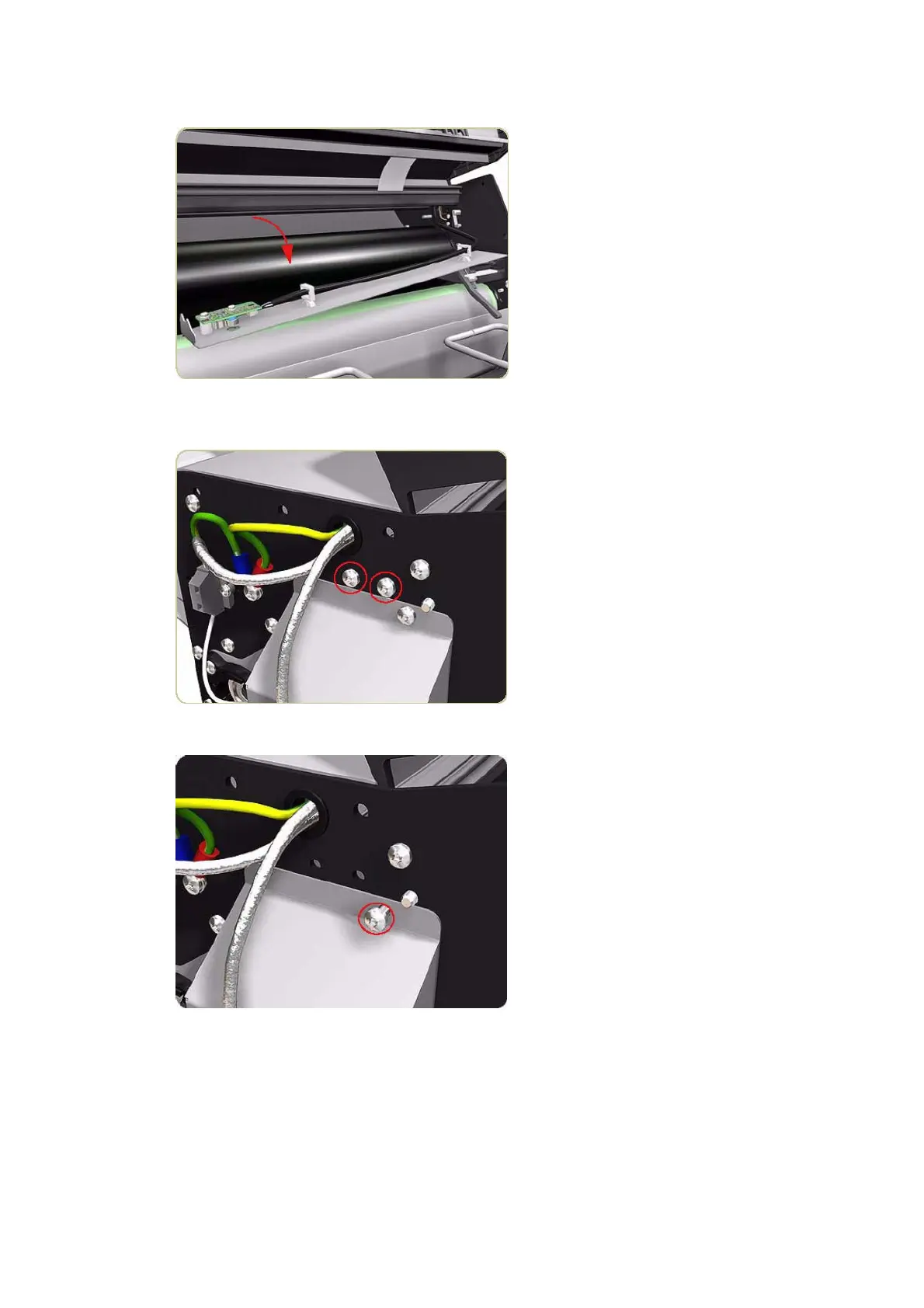

4. Pull down the Temperature Sensor Plate.
5. Remove two screws that secure the Safety Temperature Sensor Bracket from the left side of the
chassis.
6. Loosen one screw that secures the top of the Left Heating Lamp Cover.
406 Chapter 10 Stacker part removal and installation ENWW
