Operation Manual – GVRP
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 1 GVRP Configuration
Huawei Technologies Proprietary
1-7
1.4.2 Network diagram
Switch A Switch BSwitch A Switch B
E1/0/1
Switch A Switch B
E1/0/2
Switch A Switch B

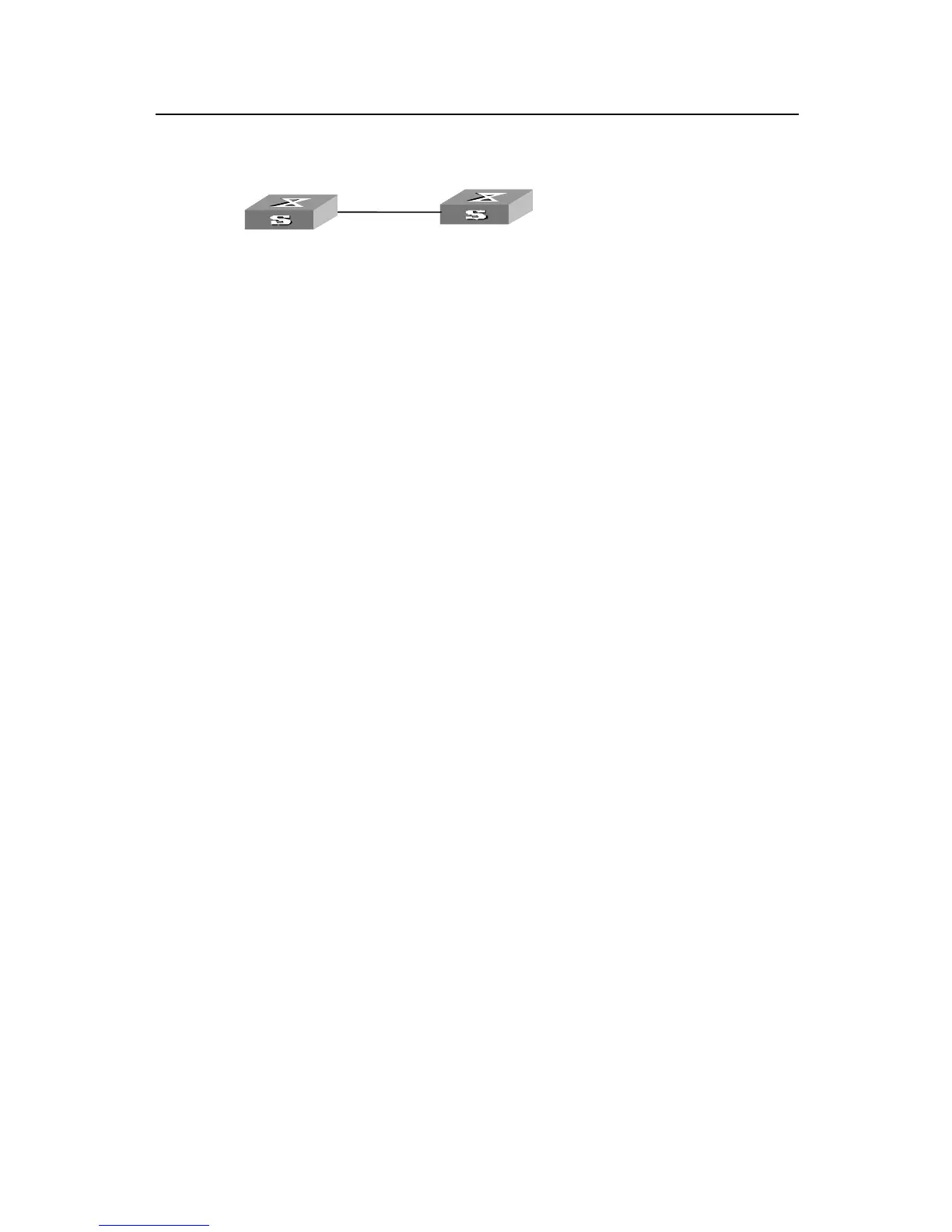

Figure 1-2 Network diagram for GVRP configuration
1.4.3 Configuration procedure
z Configure switch A.
# Enable GVRP globally.
<Quidway> system-view
[Quidway] gvrp
GVRP is enabled globally.
# Configure port Ethernet1/0/1 to be a trunk port and to permit the packets of all the
VLANs.
[Quidway] interface Ethernet1/0/1
[Quidway-Ethernet1/0/1] port link-type trunk
[Quidway-Ethernet1/0/1] port trunk permit vlan all
# Enable GVRP on the trunk port.
[Quidway-Ethernet1/0/1] gvrp
GVRP is enabled on port Ethernet1/0/1.
z Configure switch B.
# Enable GVRP globally.
<Quidway> system-view
[Quidway] gvrp
GVRP is enabled globally.
# Configure port Ethernet1/0/2 to be a trunk port and to permit the packets of all the
VLANs.
[Quidway] interface Ethernet1/0/2
[Quidway-Ethernet1/0/2] port link-type trunk
[Quidway-Ethernet1/0/2] port trunk permit vlan all
# Enable GVRP on the trunk port.
[Quidway-Ethernet1/0/2] gvrp
GVRP is enabled on port Ethernet1/0/2.
