Operation Manual - File System Management
Quidway S5100-EI Series Ethernet Switches-Release 1510 Chapter 2 FTP/TFTP Lighting Configuration
Huawei Technologies Proprietary
2-4
z When a file needs to be uploaded, the client sends a write request to the TFTP
server. It then sends data to the server and receives acknowledgement from the
server.
TFTP can transfer files in two formats:
z Binary: used to transfer programs.
z ASCII code: used to transfer text files.
Before configuring TFTP, the network administrator should first configure the IP
addresses of the TFTP client and server and ensure that the client and the server are
reachable to each other.
The switch can only act as a TFTP client.
Switch
PC
Network
SwitchSwitch
PC
Network

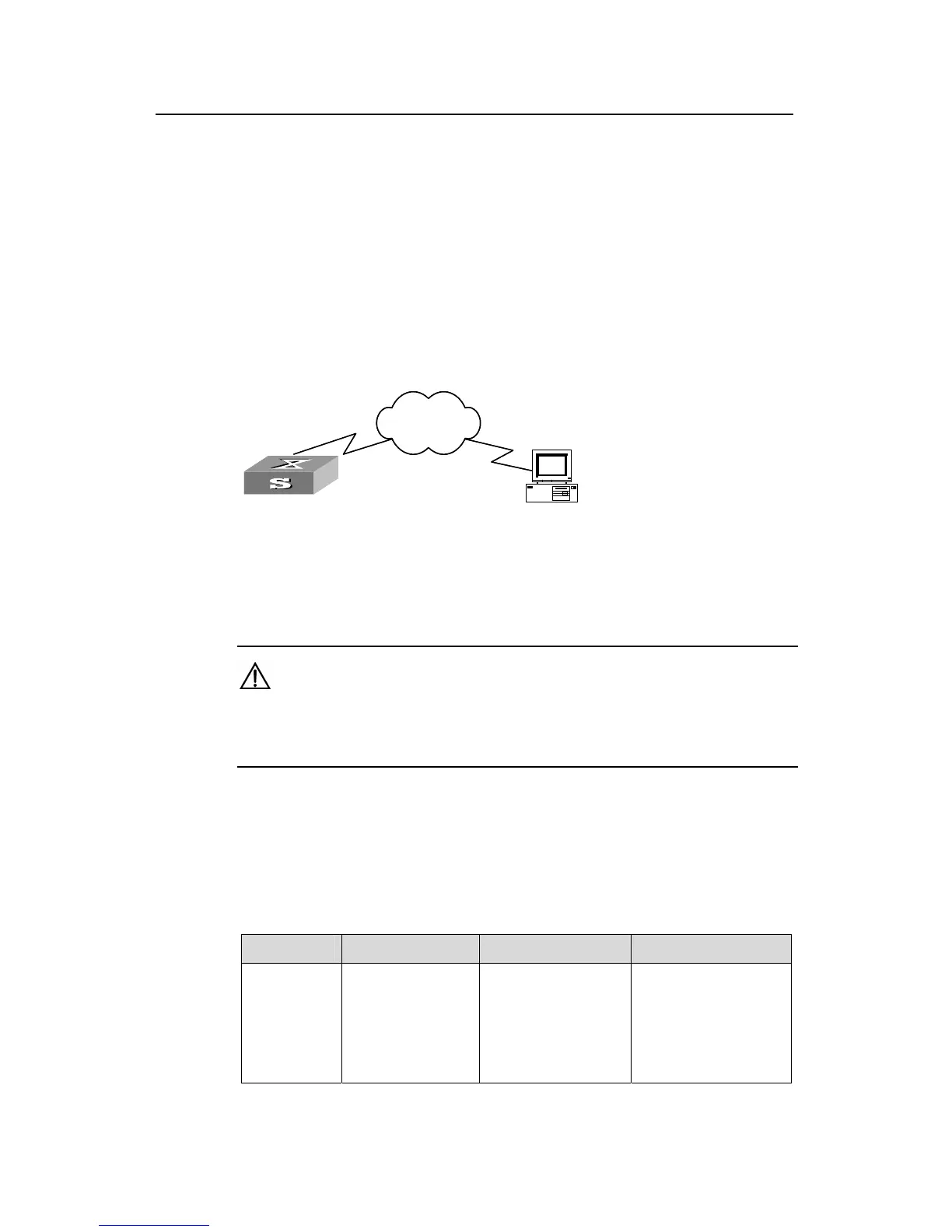

Figure 2-2 Network diagram for TFTP configuration
2.2.2 TFTP Lighting Procedure
Caution:
The TFTP server and the TFTP client must be reachable to each other for the TFTP
function operates normally.
After TFTP client is enabled on an S3900 switch, the seven-segment digital LED on the
front panel of the switch will rotate clockwise when the TFTP client (the S3900 switch)
is downloading file from a TFTP server, and will stop rotating when the file downloading
is finished, as show in
Figure 2-1.
Table 2-3 Download file from an TFTP server to the switch acting as an TFTP client
Device Operation Command Description
TFTP server
Enable TFTP
server
—
Required
For detailed
configuration, refer to
the configuration
instruction relevant to
TFTP server.
To Next Page
