Huawei Quidway S3900 Series User Manual

Operation Manual - QoS&QoS Profile
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 1 QoS Configuration
Huawei Technologies Proprietary
1-27
System View: return to User View with Ctrl+Z.
[Quidway] acl number 2000
[Quidway-acl-basic-2000] rule permit source 10.1.1.1 0.0.0.255
[Quidway-acl-basic-2000] quit
[Quidway] interface Ethernet1/0/1
[Quidway-Ethernet1/0/1] traffic-statistic inbound ip-group 2000
1.13 QoS Configuration Example
1.13.1 Configuration Example of TP and Rate Limit on the Port
I. Network requirement
The enterprise network interworks all the departments through the ports of the Ethernet
switch. The salary query server of the financial department is accessed through
Ethernet1/0/1 whose subnet address is 129.110.1.2. The network requirements are to
limit the average rate of outbound traffic within 640kbps and set the precedence of
packets exceeding the specification to 4.

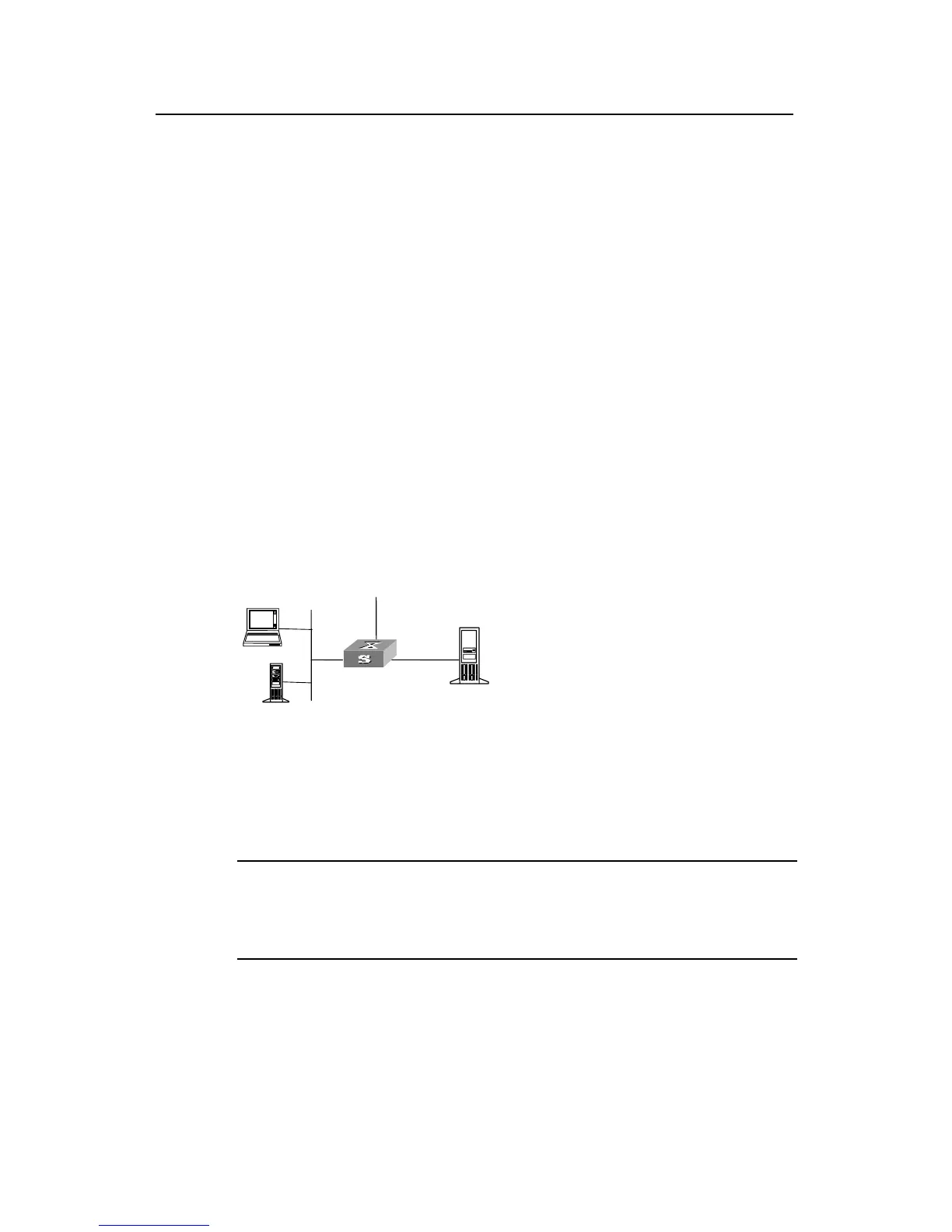

II. Network diagram
R&D department
Salary query server
Switch
To the router
E1/0/1
129 .110 .1.2
R&D department
Salary query server
Switch
To the router
E1/0/1
129 .110 .1.2
Figure 1-8 QoS configuration example
III. Configuration procedure
 Note:
Only the commands related with QoS/ACL configurations are listed in the following
configurations.
1) Define the outbound traffic of the salary query server
# Enter ACL 3000 view.
<Quidway> system-view
[Quidway] acl number 3000
