Huawei Quidway S3900 Series User Manual

Operation Manual – Routing Protocol
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 3 RIP Configuration
Huawei Technologies Proprietary
3-13

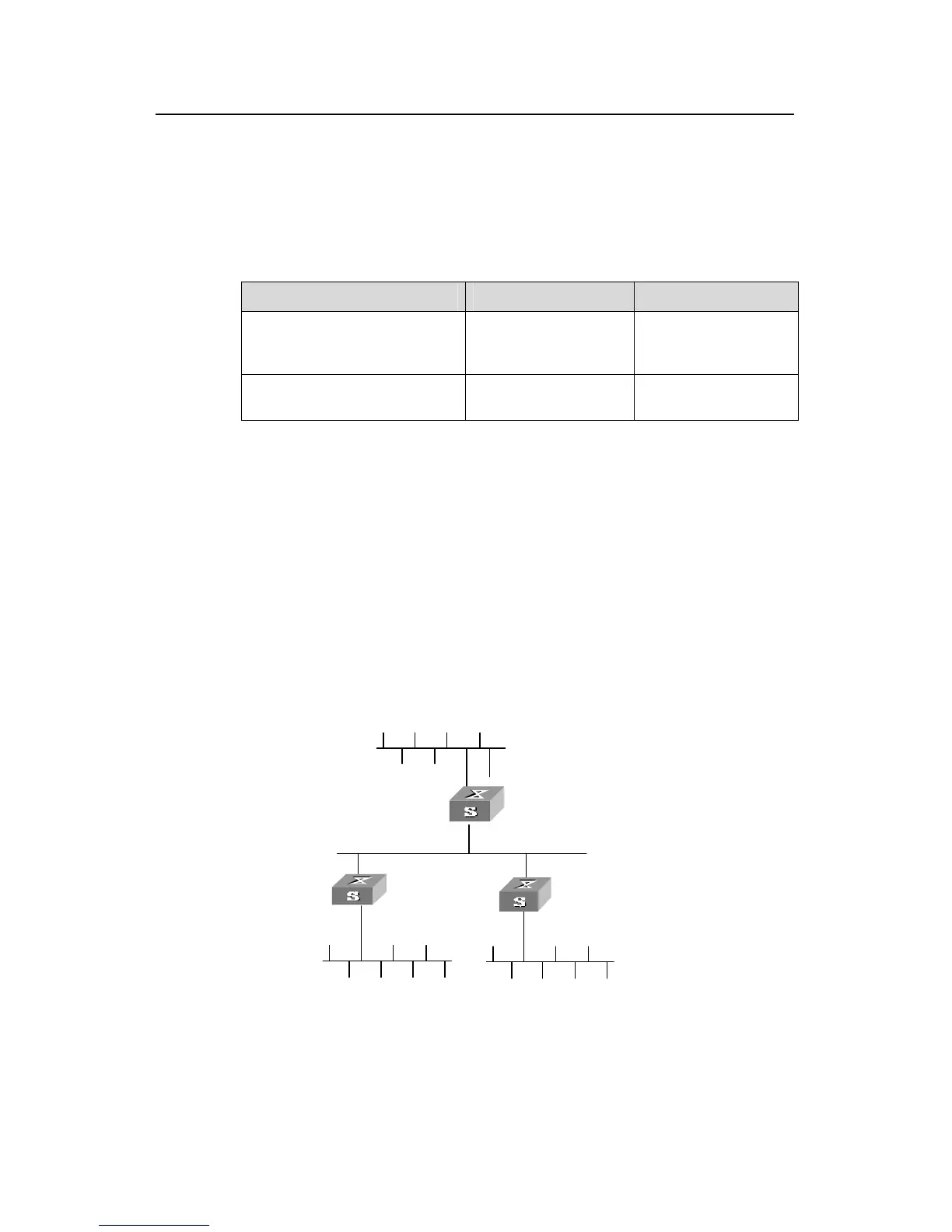

3.6 Displaying and Maintaining RIP Configuration
After the above configuration, you can use the display command in any view to
display the running status of RIP and verify the RIP configuration. You can use the
reset command in RIP view to reset the system configuration related to RIP.
Table 3-17 Display and debug RIP configuration
Operation Command Description
Display the current RIP running
status and configuration
information
display rip
You can execute the
display command in
any view.
Reset the system configuration
related to RIP
reset
Use this command in
RIP view.
3.7 RIP Configuration Example
I. Network requirements
As shown in Figure 3-1, Switch C is connected to subnet 117.102.0.0 through an
Ethernet port. Switch A and Switch B are connected to networks 155.10.1.0 and
196.38.165.0 respectively through Ethernet ports. Switch C, Switch A and Switch B
are interconnected through Ethernet 110.11.2.0. It is required to configure RIP
correctly to ensure the interworking between the networks connected to Switch C,
Switch A and Switch B.
II. Network diagram
Ethernet
Network address:
110.11.2.2/24
Network address:
117.102.0.0/16
Network address:
196.38.165.0/24
Interface address:
117.102.0.1/16
Interface address:
155.10.1.1/24
Network address:
155.10.1.0/24
Interface address:
196.38.165.1/24
Switch A
Switch B
Switch C
Interface address:
Interface address:
110.11.2.1/24
110.11.2.3/24
Figure 3-1 RIP configuration
