Huawei Quidway S3900 Series User Manual

Operation Manual – Routing Protocol
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 4 OSPF Configuration
Huawei Technologies Proprietary
4-30
II. Network diagram
152.1.1.1/24
196.1.1.2/24
Sw itch A
1.1.1.1
Sw itc h B
2.2.2.2
Virtual
link
197.1.1.2/24
Area 2
Area 1
Area 0
Sw itch C
3.3.3.3
197.1.1.1/24
196.1.1.1/24
152.1.1.1/24
196.1.1.2/24
Sw itch A
1.1.1.1
Sw itc h B
2.2.2.2
Virtual
link
197.1.1.2/24
Area 2
Area 1
Area 0
Sw itch C
3.3.3.3
197.1.1.1/24
196.1.1.1/24

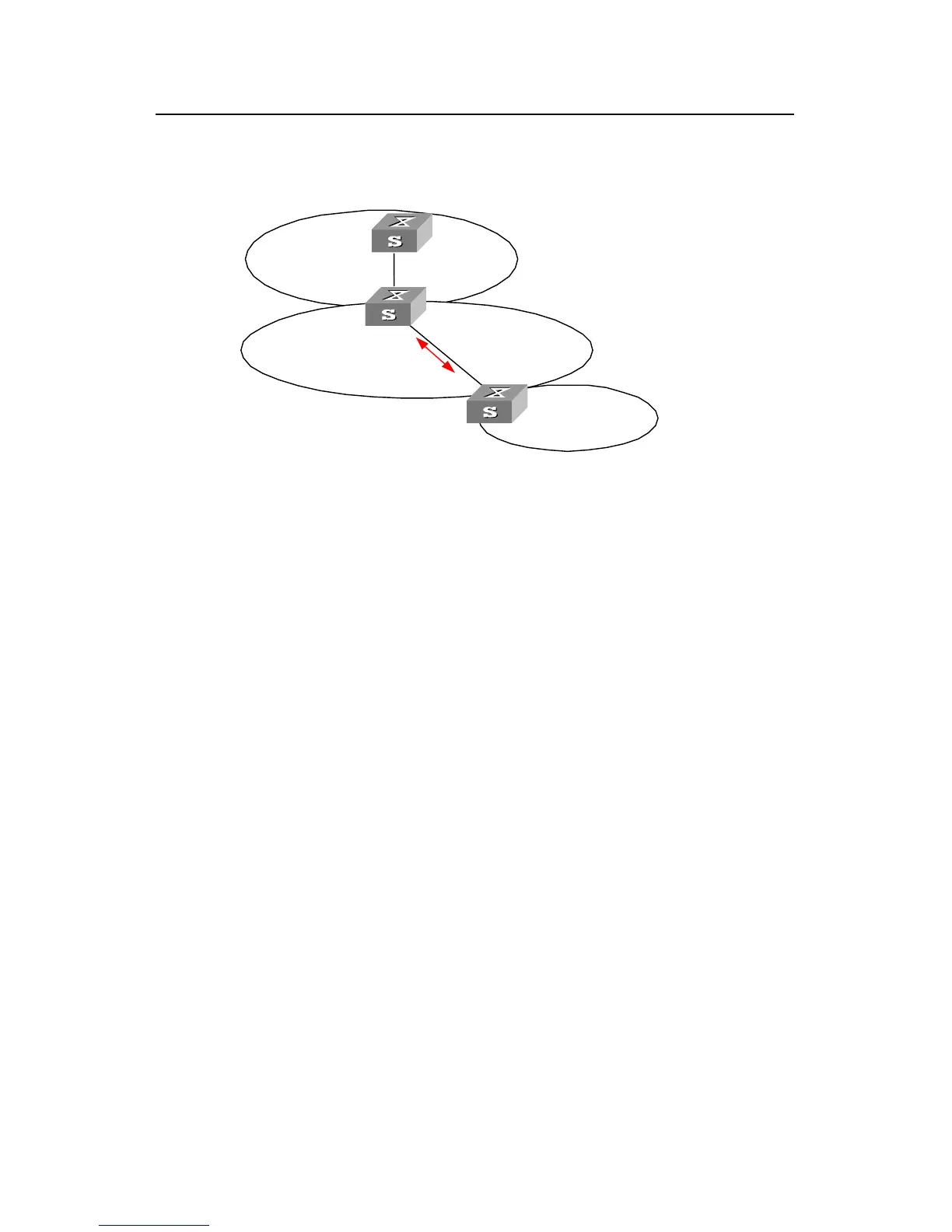

Figure 4-4 OSPF virtual link configuration
III. Configuration procedure
# Configure Switch A.
<Switch A> system-view
[Switch A] interface Vlan-interface 1
[Switch A-Vlan-interface1] ip address 196.1.1.1 255.255.255.0
[Switch A-Vlan-interface1] quit
[Switch A] router id 1.1.1.1
[Switch A] ospf
[Switch A-ospf-1] area 0
[Switch A-ospf-1-area-0.0.0.0] network 196.1.1.0 0.0.0.255
# Configure Switch B.
<Switch B> system-view
[Switch B] interface vlan-interface 7
[Switch B-Vlan-interface7] ip address 196.1.1.2 255.255.255.0
[Switch B-Vlan-interface7] quit
[Switch B] interface vlan-interface 8
[Switch B-Vlan-interface8] ip address 197.1.1.2 255.255.255.0
[Switch B] router id 2.2.2.2
[Switch B] ospf
[Switch B-ospf-1] area 0
[Switch B-ospf-1-area-0.0.0.0] network 196.1.1.0 0.0.0.255
[Switch B-ospf-1-area-0.0.0.0] quit
[Switch B-ospf-1] area 1
