Operation Manual – ARP

Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 2 Resilient ARP Configuration

Huawei Technologies Proprietary

2-3

II. Network diagram

Unit 2

Unit 1

Unit3

Unit 4

IRF

Switch

Unit 2

Unit 1

Unit3

Unit 4

Switch

Unit 2

Unit 1

Unit3

Unit 4

IRF

Switch

Unit 2

Unit 1

Unit3

Unit 4

Switch

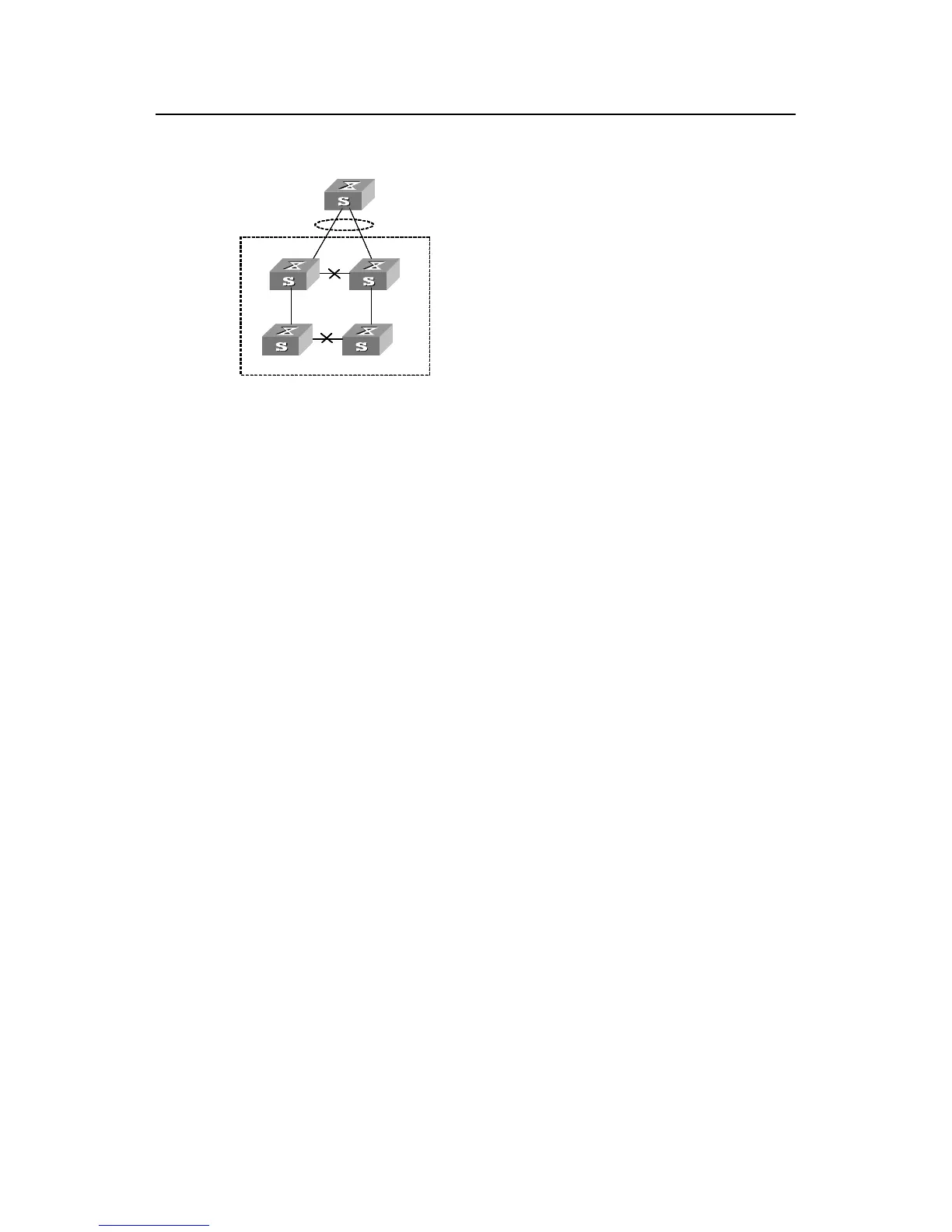

Figure 2-1 Network diagram for Resilient ARP

III. Configuration procedure

# Enable Resilient ARP function.

[Quidway] resilient-arp enable

# Configure the Resilient ARP packets to be sent through the VLAN 2 interface.

[Quidway] resilient-arp interface vlan-interface 2
