Huawei Quidway S3900 Series User Manual

Operation Manual – Cluster
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 1 Cluste
r
Huawei Technologies Proprietary
1-17
II. Network diagram
Management
dev ice
Member device MAC address
00e0.f c01.0011
SNMP host/log host
Cluster
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
69.172.55.4
63.172.55.1
VLAN2 interface IP address
163.172.55.1
Member dev ice MAC address
00e0.f c01.0012
Management
dev ice
Member device MAC address
00e0.f c01.0011
Cluster
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
69.172.55.4
63.172.55.1
VLAN2 interface IP address
163.172.55.1
Member dev ice MAC address
00e0.f c01.0012
Management
dev ice
Member device MAC address
00e0.f c01.0011
SNMP host/log host
Cluster
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
69.172.55.4
63.172.55.1
VLAN2 interface IP address
163.172.55.1
Member dev ice MAC address
00e0.f c01.0012
Management
dev ice
Member device MAC address
00e0.f c01.0011
Cluster
Network
FTP server/TFTP server
E1/0/ 3
E1/0/2
E1/1 E1/1
E1/0/1
69.172.55.4
63.172.55.1
VLAN2 interface IP address
163.172.55.1
Member dev ice MAC address
00e0.f c01.0012

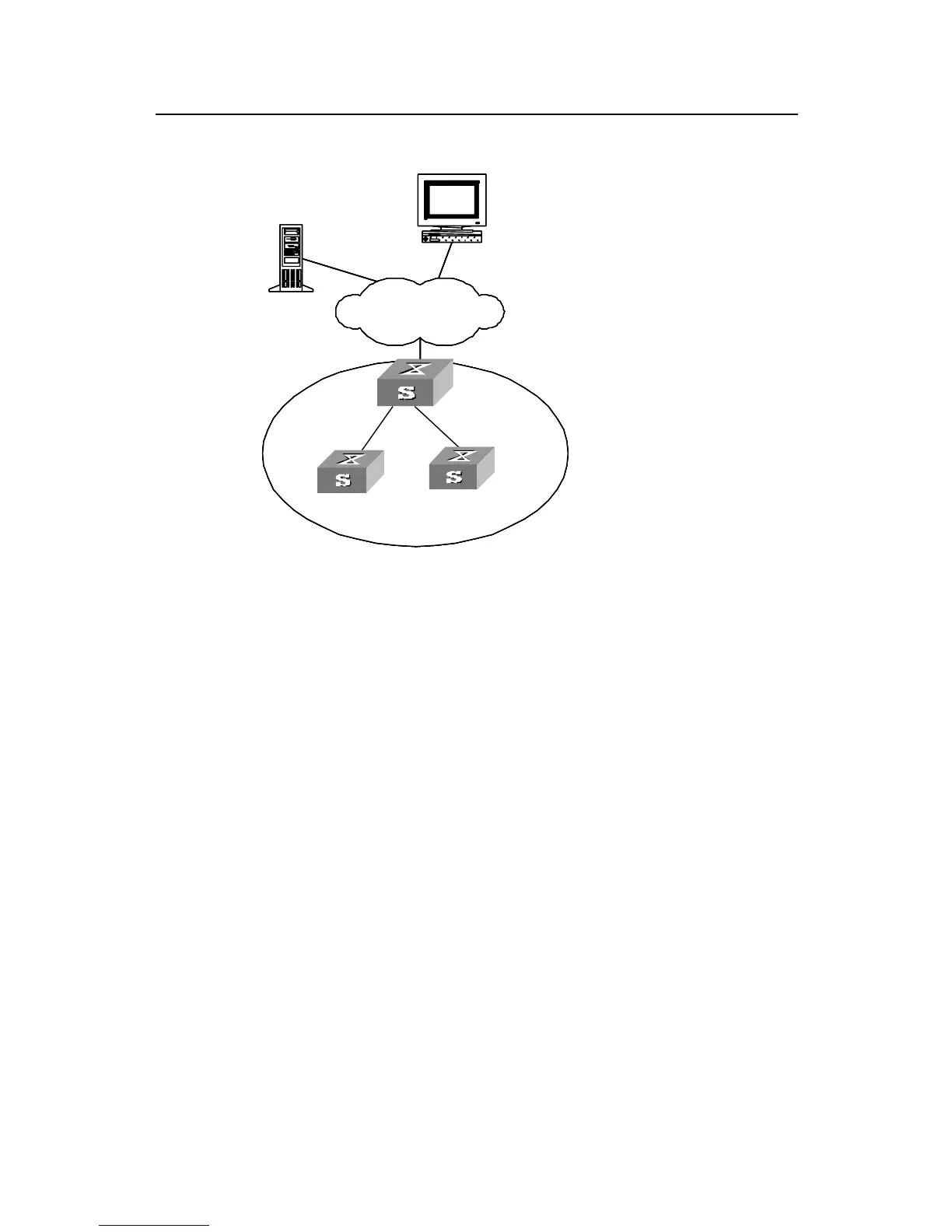

Figure 1-3 Network diagram for HGMP cluster configuration
III. Configuration procedure
1) Configure the member devices (taking one member as an example)
# Enable NDP globally and for Ethernet1/1.
<Quidway> system-view
[Quidway] ndp enable
[Quidway] interface Ethernet 1/1
[Quidway-Ethernet1/1] ndp enable
[Quidway-Ethernet1/1] quit
# Enable NTDP globally and for Ethernet1/1.
[Quidway] ntdp enable
[Quidway] interface Ethernet 1/1
[Quidway-Ethernet1/1] ntdp enable
[Quidway-Ethernet1/1] quit
# Enable the cluster function.
[Quidway] cluster enable
2) Configure the management device
# Enable NDP globally and for the Ethernet1/0/2 and Ethernet1/0/3 ports.
<Quidway> system-view
