Huawei Quidway S3900 Series User Manual

Operation Manual – Cluster
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 1 Cluste
r
Huawei Technologies Proprietary
1-21
II. Network diagram
Port e1/0/2)
VLAN 2 VLAN 2
FTP Sever
(IP Address 192.168.4.3
)
(IP Address192.168.4.22
S3526E
(IP Address 192.168.5.30
Port e1/0/1)
S2403
FTP Sever
(IP Address 192.168.4.3
)
S3900
S3526E S2403
Port e1/0/2)
VLAN 2 VLAN 2
FTP Sever
(IP Address 192.168.4.3
)
(IP Address192.168.4.22
S3526E
VLAN 3
Port e1/0/1)
S2403
FTP Sever
(IP Address 192.168.4.3
)
S3900
S3526E S2403
Port e1/0/2)
VLAN 2 VLAN 2
FTP Sever
(IP Address 192.168.4.3
)
(IP Address192.168.4.22
S3526E
(IP Address 192.168.5.30
Port e1/0/1)
S2403
FTP Sever
(IP Address 192.168.4.3
)
S3900
S3526E S2403
Port e1/0/2)
VLAN 2 VLAN 2
FTP Sever
(IP Address 192.168.4.3
)
(IP Address192.168.4.22
S3526E
VLAN 3
Port e1/0/1)
S2403
FTP Sever
(IP Address 192.168.4.3
)
S3900
S3526E S2403

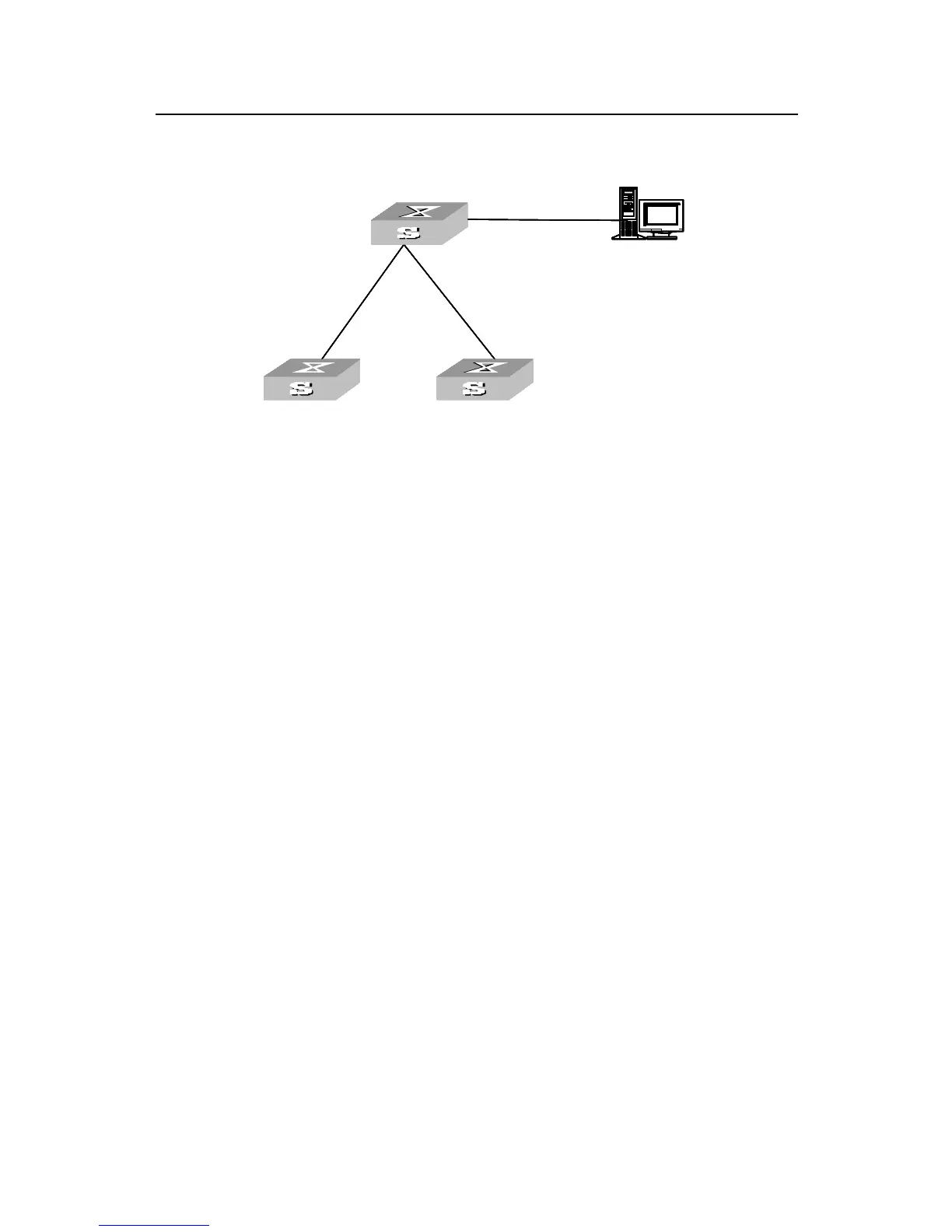

Figure 1-4 Network diagram for the NM interface configuration
III. Configuration procedure
# Enter system view and configure VLAN 3 as the management VLAN.
<Quidway> system-view
[Quidway] management-vlan 3
# Add the Ethernet 1/0/1 port into VLAN 3.
[Quidway] vlan 3
[Quidway-vlan3] port Ethernet 1/0/1
[Quidway-vlan3] quit
# Set the IP address of Vlan-interface 3 to 192.168.5.30.
[Quidway] interface Vlan-interface 3
[Quidway-Vlan-interface3] ip address 192.168.5.30 255.255.255.0
[Quidway-Vlan-interface3] quit
# Add the Ethernet 1/0/2 port into VLAN2.
[Quidway] vlan 2
[Quidway-vlan2] port Ethernet 1/0/2
[Quidway-vlan2] quit
# Set the IP address of Vlan-interface2 to 192.168.4.22.
[Quidway] interface Vlan-interface 2
[Quidway-Vlan-interface2] ip address 192.168.4.22 255.255.255.0
[Quidway-Vlan-interface2] quit
# Configure Vlan-interface2 as the NM interface.
[Quidway] cluster
[Quidway-cluster] nm-interface Vlan-interface 2
