Huawei Quidway S3900 Series User Manual

Operation Manual – SNMP and RMON
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 2 RMON Configuration
Huawei Technologies Proprietary
2-6
II. Network diagram
Console Port
Network Port
Sw itc h
Internet
Console Port
Network Port
Sw itc h
Internet

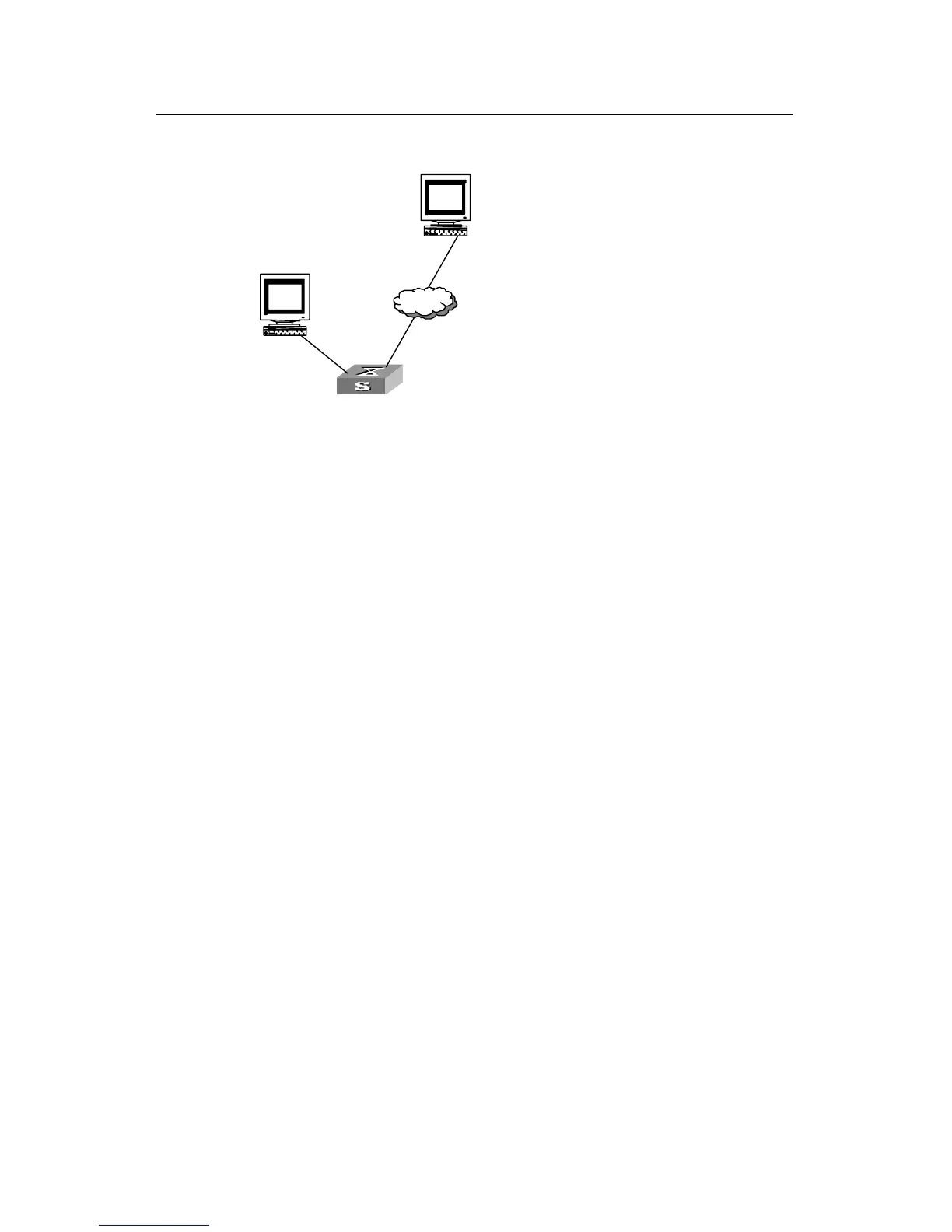

Figure 2-1 Network diagram for RMON configuration
III. Configuration procedures
# Configure RMON.
<Quidway> system-view
[Quidway] interface Ethernet1/0/1
[Quidway-Ethernet1/0/1] rmon statistics 1 owner user1-rmon
# View RMON configuration.
[Quidway-Ethernet1/0/1] display rmon statistics Ethernet1/0/1
Statistics entry 1 owned by user1-rmon is VALID.
Interface : Ethernet1/0/1<ifIndex.4227626>
etherStatsOctets : 0 , etherStatsPkts : 0
etherStatsBroadcastPkts : 0 , etherStatsMulticastPkts : 0
etherStatsUndersizePkts : 0 , etherStatsOversizePkts : 0
etherStatsFragments : 0 , etherStatsJabbers : 0
etherStatsCRCAlignErrors : 0 , etherStatsCollisions : 0
etherStatsDropEvents (insufficient resources): 0
Packets received according to length:
64 : 0 , 65-127 : 0 , 128-255 : 0
256-511: 0 , 512-1023: 0 , 1024-1518: 0
