Operation Manual -- NTP
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 1 NTP Configuration
Huawei Technologies Proprietary
1-18
II. Network diagram
Quidway 3
S3900-2 Quidway 4
3.0.1.31/24
3.0.1.32/24
1.0.1.31/24
Vlan-interface 2
Vlan-interface 2
Vlan-interface 2
Quidway 3
Quidway 4
3.0.1.31/24
3.0.1.32/24
1.0.1.31/24
Vlan-interface 2
Vlan-interface 2
Vlan-interface 2
S3900-1
Quidway 3
S3900-2 Quidway 4
3.0.1.31/24
3.0.1.32/24
1.0.1.31/24
Vlan-interface 2
Vlan-interface 2
Vlan-interface 2
Quidway 3
Quidway 4
3.0.1.31/24
3.0.1.32/24
1.0.1.31/24
Vlan-interface 2
Vlan-interface 2
Vlan-interface 2
S3900-1

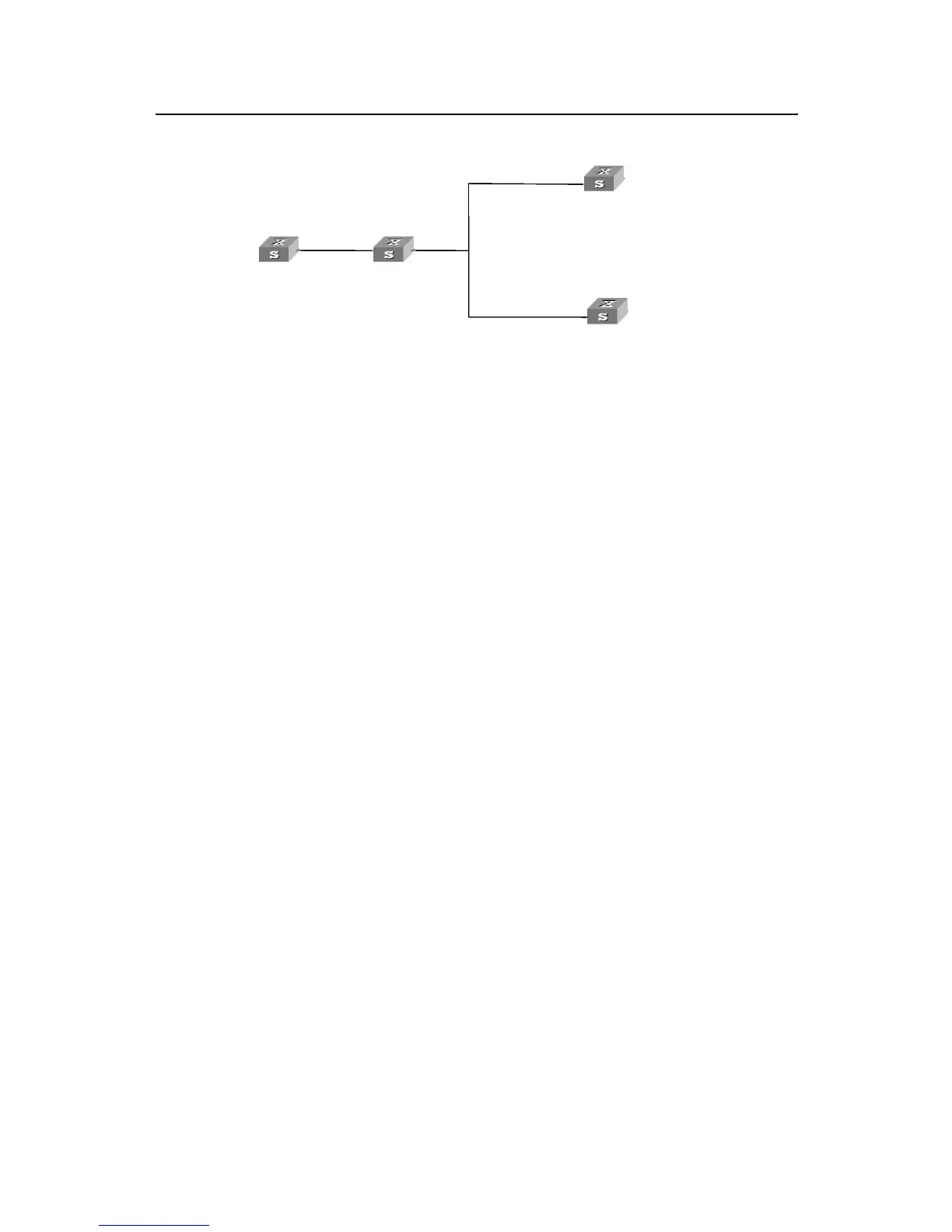

Figure 1-8 Network diagram for the NTP broadcast mode configuration
III. Configuration procedures
1) Configure Quidway3.
# Enter system view.
<Quidway3> system-view
[Quidway3]
# Enter VLAN-interface 2 view.
[Quidway3] interface Vlan-interface 2
[Quidway3-Vlan-interface2]
# Configure Quidway3 to be the broadcast server and send broadcast packets through
VLAN-interface 2.
[Quidway3-Vlan-interface2] ntp-service broadcast-server
2) Configure S3900-1.
# Enter system view.
<S3900-1> system-view
[S3900-1]
# Enter VLAN-interface 2 view.
[S3900-1] interface Vlan-interface 2
[S3900-1-Vlan-interface2]
# Configure S3900-1 to be a broadcast client.
[S3900-1-Vlan-interface2] ntp-service broadcast-client
3) Configure S3900-2
# Enter system view.
<S3900-2> system-view
[s3900-2]
# Enter VLAN-interface 2 view.
[S3900-2] interface Vlan-interface 2
