Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 1 BootROM and Host Software Loading
Huawei Technologies Proprietary
1-7

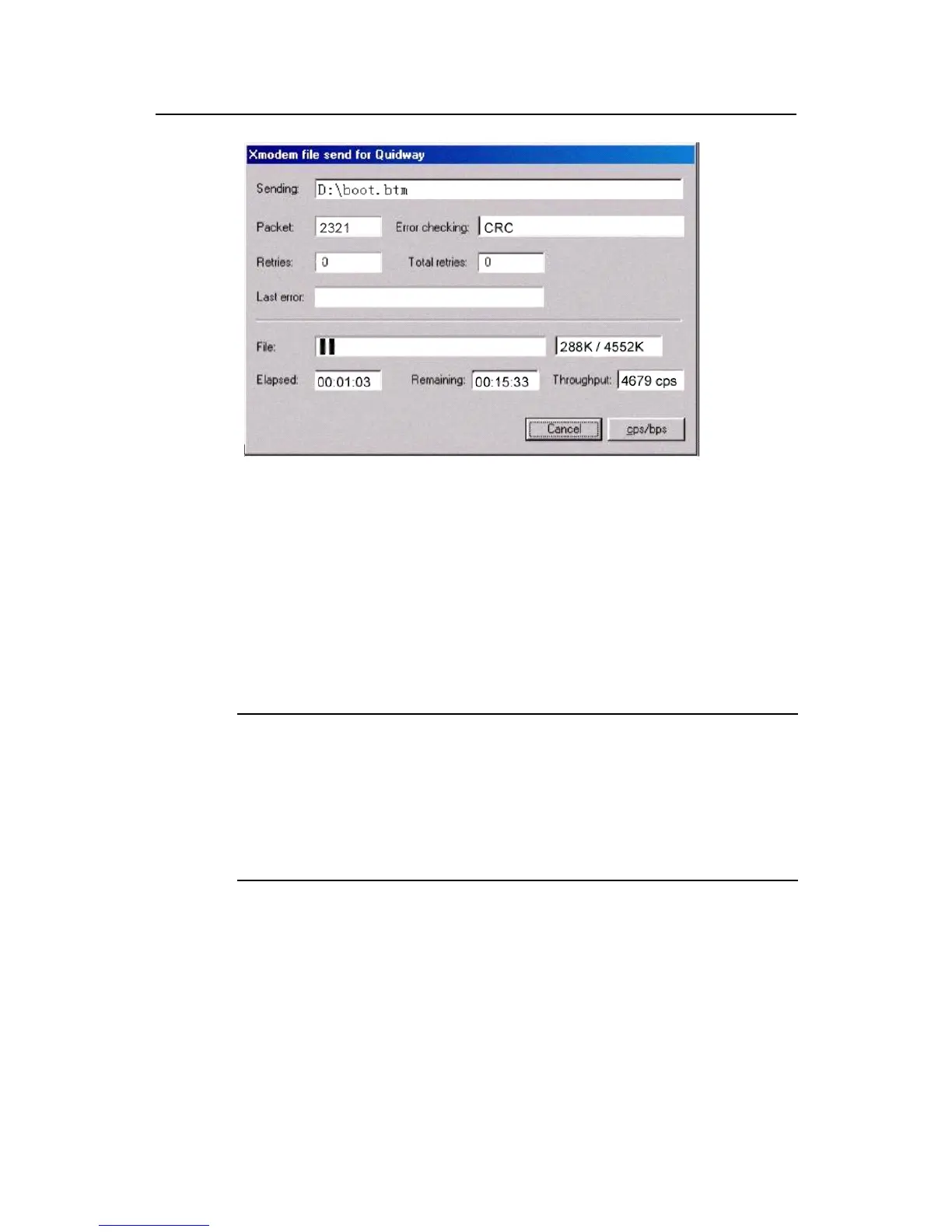

Figure 1-5 Sending file page
Step 9: After the download completes, the system displays the following information:
Loading ...CCCCCCCCCC done!
Step 10: Reset HyperTerminal’s baud rate to 9600 bps (refer to Step 4 and 5). Then,
press any key as prompted. The system will display the following information when it
completes the loading.
Bootrom updating.....................................done!
 Note:
z If the HyperTerminal’s baud rate is not reset to 9600 bps, the system prompts "Your
baudrate should be set to 9600 bps again! Press enter key when ready".
z You need not reset the HyperTerminal’s baud rate and can skip the last step if you
have chosen 9600 bps. In this case, the system upgrades BootROM automatically
and prompts “Bootrom updating now.....................................done!”.
III. Loading host software
Follow these steps to load the host software:
Step 1: Select <1> in Boot Menu and press <Enter>. The system displays the following
information:
1. Set TFTP protocol parameter
2. Set FTP protocol parameter
3. Set XMODEM protocol parameter
