Huawei Quidway S3900 Series User Manual

Operation Manual – VLAN VPN
Quidway S3900 Series Ethernet Switches-Release 1510 Chapter 2 BPDU Tunnel Configuration
Huawei Technologies Proprietary
2-4
II. Network diagram
Ethernet1/0/1 Ethernet1/0/4
Customer1 Customer2
Provider1 Provider2
VLAN 2
VLAN 4
Ethernet1/0/3
Ethernet1/0/2
Trunk
Ethernet1/0/1 Ethernet1/0/4
Customer1 Customer2
Provider1 Provider2
VLAN 2
VLAN 4
Ethernet1/0/1 Ethernet1/0/4
Customer1 Customer2
Provider1 Provider2
VLAN 2
VLAN 4
Ethernet1/0/3
Ethernet1/0/2
Ethernet1/0/3
Ethernet1/0/2
Trunk

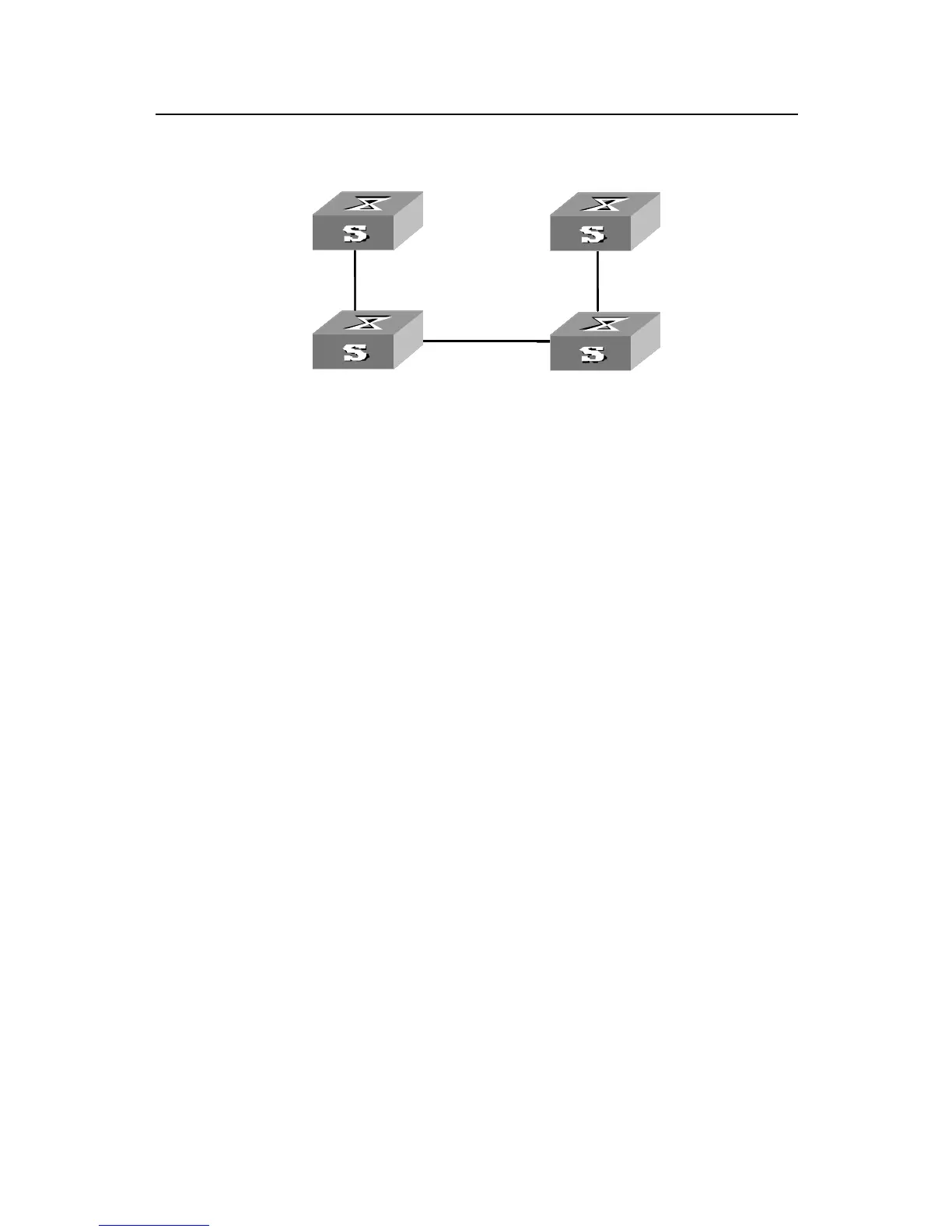

Figure 2-4 Network diagram for BPDU Tunnel configuration
III. Configuration procedure
1) Configure Provide1.
# Enable NDP on Ethernet1/0/1 port.
<Quidway> system-view
[Quidway] interface Ethernet 1/0/1
[Quidway-Ethernet1/0/1] ndp enable
# Enable the BPDU Tunnel function on Ethernet1/0/2 port.
[Quidway-Ethernet1/0/1] quit
[Quidway] interface Ethernet 1/0/2
[Quidway-Ethernet1/0/2] bpdu-tunnel uplink
[Quidway-Ethernet1/0/2] bpdu-tunnel ndp
2) Configure Provider2.
# Enable the BPDU Tunnel function for NDP packets on Ethernet1/0/3 port.
<Quidway> system-view
[Quidway] interface Ethernet 1/0/3
[Quidway-Ethernet1/0/3] bpdu-tunnel uplink
[Quidway-Ethernet1/0/3] bpdu-tunnel ndp
