Huawei Quidway S5600 Series User Manual

Operation Manual – MAC Address Table
Quidway S5600 Series Ethernet Switches-Release 1510
Chapter 1 MAC Address Table
Management
Huawei Technologies Proprietary
1-7
1.4 Configuration Example
1.4.1 Network requirements
z Log in to the switch through the Console port and enable address table
configuration.
z Set the aging time of dynamic MAC address entries to 500 seconds.
z Add a static MAC address entry 00e0-fc35-dc71 for GigabitEthernet1/0/2 port
(assuming that the port belongs to VLAN 1)
1.4.2 Network diagram
Console port
Network port
Switch
Internet
Console port
Network port
Switch
Internet

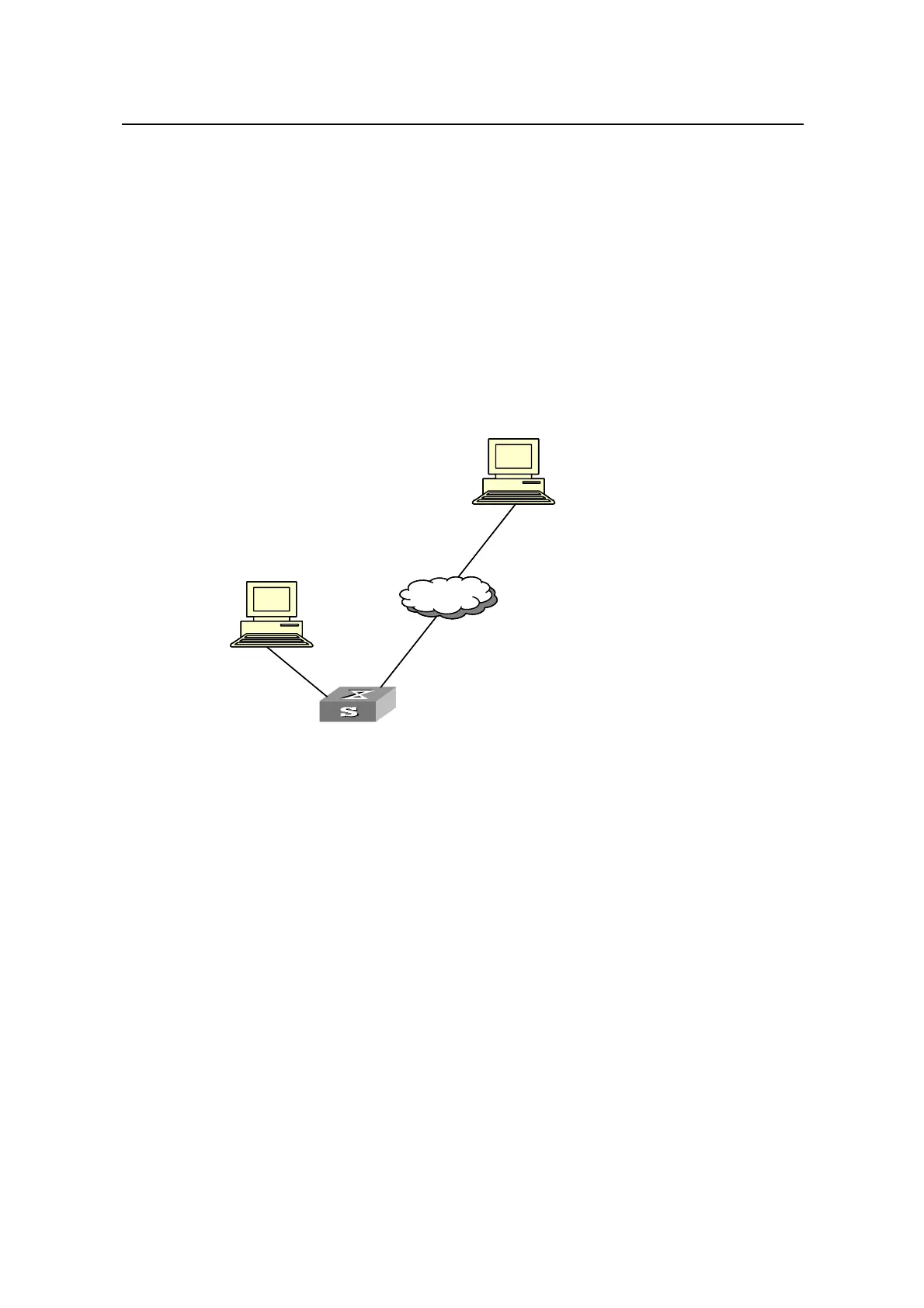

Figure 1-2 Network diagram for MAC address table configuration
1.4.3 Configuration procedure
# Enter system view.
<Quidway> system-view
[Quidway]
# Add a MAC address, with the VLAN, ports, and states specified.
[Quidway] mac-address static 00e0-fc35-dc71 interface GigabitEthernet 1/0/2
vlan 1
# Set the aging time of dynamic MAC addresses to 500 seconds.
[Quidway] mac-address timer aging 500
# Display the information about the MAC address entries in system view.
[Quidway] display mac-address interface GigabitEthernet 1/0/2
MAC ADDR VLAN ID STATE PORT INDEX AGING TIME(s)
