Operation Manual – IRF Fabric
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 1
IRF Fabric Configuration
Huawei Technologies Proprietary
1-9
1.5.2 Networking diagram
Fabric
Fabric port
user port
Fabric
Fabric port
user port
Switch A Switch B
Switch C Switch D
Fabric
Fabric port
user port
Fabric
Fabric port
user port
Switch A Switch B
Switch C Switch D

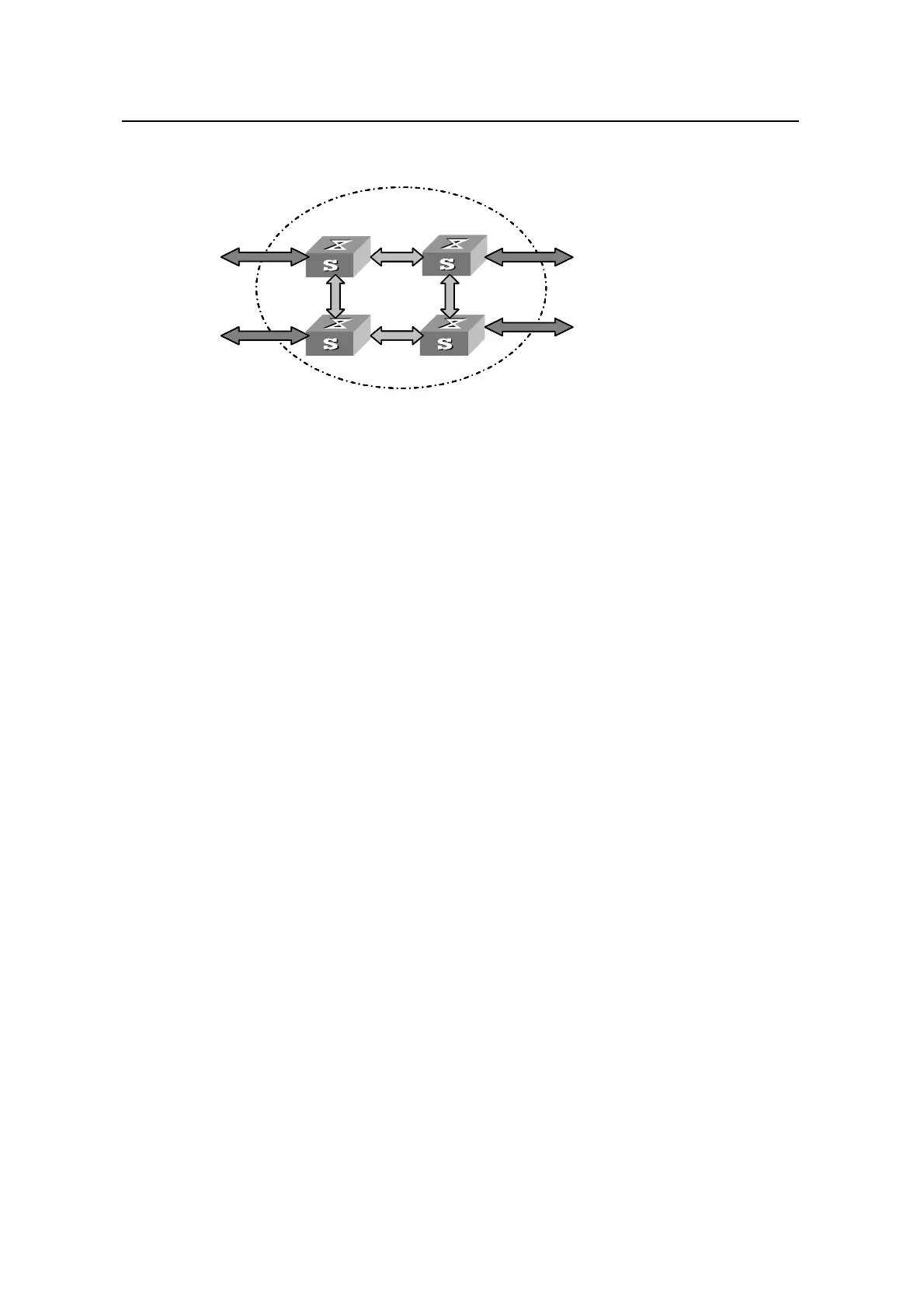

Figure 1-2 Networking diagram for forming an IRF fabric
1.5.3 Configuration procedure
1) Configure Switch A.
# Configure the unit ID as 1.
<Quidway> system-view
[Quidway] change unit-id 1 to 1
# Configure the unit name as unit 1.
[Quidway] set unit 1 name unit1
# Configure the fabric name as hello.
[Quidway] sysname hello
2) Configure Switch B.
# Configure the unit ID as 2.
<Quidway> system-view
[Quidway] change unit-id 1 to 2
# Configure the unit name as unit 2.
[Quidway] set unit 1 name unit2
# Configure the fabric name as hello.
[Quidway] sysname hello
Configurations on Switch C and Switch D are similar with the above configurations.
