Huawei Quidway S5600 Series User Manual

Operation Manual - DHCP
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 5
DHCP Accounting Configuration
Huawei Technologies Proprietary
5-2
5.2.2 Configuring DHCP Accounting
Table 5-1 Configure DHCP accounting
Operation Command Description
Enter system view
system-view
—
Enter address pool
view
dhcp server ip-pool
pool-name
Required
Enable DHCP
accounting
accounting domain
domain-name
Required
The domain identified by the
domain-name argument can be
created by using the domain
command
5.2.3 DHCP Accounting Configuration Example
I. Network requirements
z The DHCP server connects to a DHCP client and a RADIUS server respectively
through its GigabitEthernet1/0/2 and GigabitEthernet1/0/1 ports.
z GigabitEthernet1/0/2 belongs to VLAN 2; GigabitEthernet1/0/1 belongs to VLAN
3.
z The IP address of VLAN 2 interface is 10.1.1.1/24, and that of VLAN 3 interface is
10.1.2.1/24.
z The IP address of the RADIUS server is 10.1.2.2/24.
z DHCP accounting is enabled on the DHCP server.
z The IP addresses of the global DHCP address pool belongs to the network
segment 10.1.1.0/24. The DHCP server operates as a RADIUS client and adopts
AAA for authentication.
II. Network diagram
RADIUS Server
10.1.2.2/24
DHCP Client
DHCP Server
GigabitEthernet 1/0/1
vlan3
10.1.2.1/24
GigabitEthernet 1/0/2
vlan2
10.1.1.1/24
RADIUS Server
10.1.2.2/24
DHCP Client
DHCP Server
RADIUS Server
10.1.2.2/24
DHCP Client
DHCP Server
DHCP Client
DHCP ServerDHCP Server
vlan3
10.1.2.1/24
vlan2
10.1.1.1/24
RADIUS Server
10.1.2.2/24
DHCP Client
RADIUS Server
10.1.2.2/24
DHCP Client
DHCP Server
GigabitEthernet 1/0/1
vlan3
10.1.2.1/24
GigabitEthernet 1/0/2
vlan2
10.1.1.1/24
RADIUS Server
10.1.2.2/24
DHCP Server
GigabitEthernet 1/0/1
vlan3
10.1.2.1/24
GigabitEthernet 1/0/2
vlan2
10.1.1.1/24
RADIUS Server
10.1.2.2/24
DHCP ClientDHCP Client
DHCP ServerDHCP Server
RADIUS Server
10.1.2.2/24
DHCP Client
RADIUS Server
10.1.2.2/24
DHCP Client
DHCP ServerDHCP Server
DHCP ClientDHCP Client
DHCP ServerDHCP ServerDHCP ServerDHCP Server
vlan3
10.1.2.1/24
vlan2
10.1.1.1/24

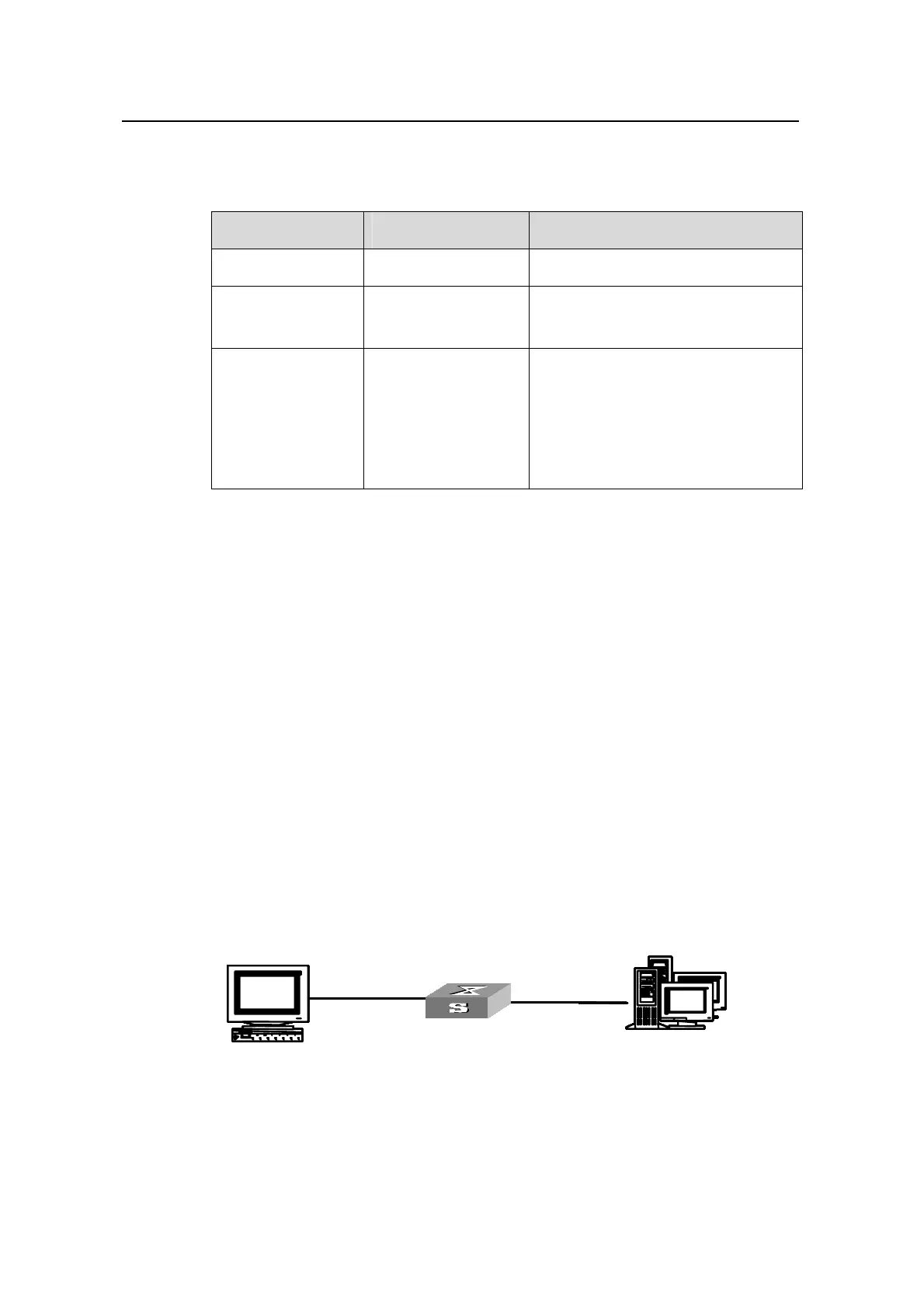

Figure 5-1 Network diagram for DHCP accounting configuration
