Huawei Quidway S5600 Series User Manual

Operation Manual – Routing Protocol
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 3 RIP Configuration
Huawei Technologies Proprietary
3-13
Table 3-17 Display and debug RIP configuration
Operation Command Description
Display the current RIP running
status and configuration
information
display rip
Display RIP interface
information
display rip interface
Display RIP routing information
display rip routing
You can execute the
display command in
any view.
Reset the system configuration
related to RIP
reset
Use this command in
RIP view.
3.7 RIP Configuration Example
I. Network requirements
As shown in Figure 3-1, SwitchC is connected to subnet 117.102.0.0 through an
Ethernet port. SwitchA and SwitchB are connected to networks 155.10.1.0 and
196.38.165.0 respectively through Ethernet ports. SwitchC, SwitchA and SwitchB are
interconnected through Ethernet 110.11.2.0. It is required to configure RIP correctly to
ensure the interworking between the networks connected to SwitchC, SwitchA and
SwitchB.
II. Network diagram
Ethernet
Network address:
110.11.2.2/24
Network address:
117.102.0.0/16
Network address:
196.38.165.0/24
Interface address:
117.102.0.1/16
Interface address:
155.10.1.1/24
Network address:
155.10.1.0/24
Interface address:
196.38.165.1/24
Switch A
Switch B
Switch C
Interface address:
Interface address:
110.11.2.1/24
110.11.2.3/24

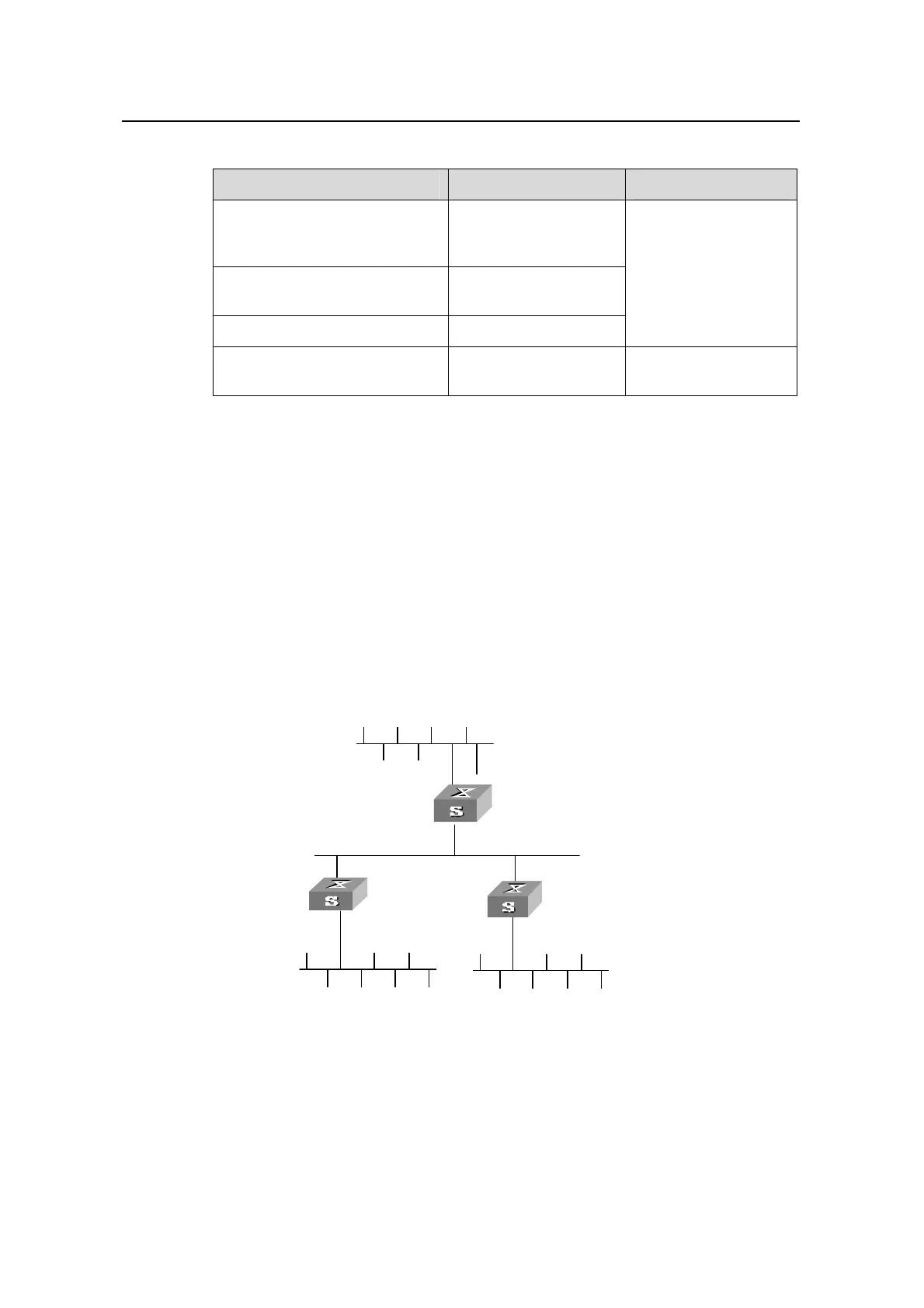

Figure 3-1 RIP configuration
III. Configuration procedure
