Huawei Quidway S5600 Series User Manual

Operation Manual – PoE & PoE Profile
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 2
PoE Profile Configuration
Huawei Technologies Proprietary
2-4
2.4 PoE profile Configuration Example
I. Network requirements
GigabitEthernent1/0/1 through GigabitEthernet1/0/10 of the S5648P-PWR switch are
used by users of group A who have the following requirements:
z All ports in use can enable PoE function;
z Signal cables are used to supply power;
z The PoE priority for GigabitEthernet1/0/1 through GigabitEthernet1/0/5 is Critical,
whereas The PoE priority for GigabitEthernet1/0/6 through GigabitEthernet1/0/10
is High.
z The maximum power for GigabitEthernet1/0/1 through GigabitEthernet1/0/5 ports
is 3000mW, whereas the maximum power for GigabitEthernet1/0/6 through
GigabitEthernet1/0/10 is 15,400mW.
Based on the above requirements, two PoE profiles are made for users of group A.
z Apply PoE profile1 for GigabitEthernet1/0/1 through GigabitEthernet 1/0/5;
z Apply PoE profile2 for GigabitEthernet1/0/6 through GigabitEthernet 1/0/10.
Network
GE1/0/1~GE1/0/5
GE1/0/6~GE1/0/10
AP
APIP Phone
AP
AP
IP Phone
IP Phone
IP Phone
S5648P-PWR
Network
GE1/0/1~GE1/0/5
GE1/0/6~GE1/0/10
AP
APIP Phone
AP
AP
IP Phone
IP Phone
IP Phone
S5648P-PWR

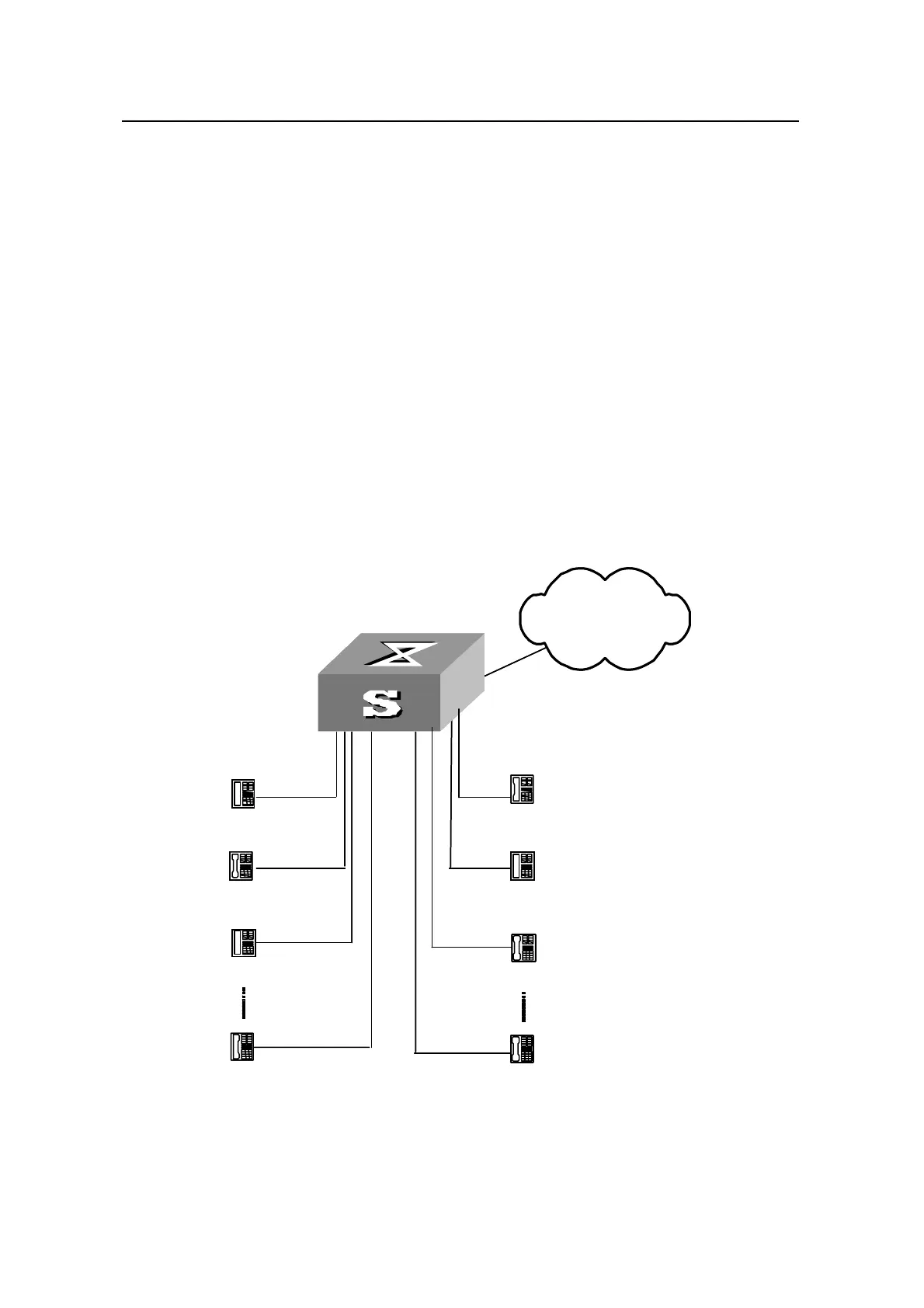

Figure 2-1 PoE profile application
