1.11 PoE Configuration Example
I. Networking requirements
z The GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 ports of the S5624P-PWR
switch are connected to an S2016C switch and an AP respectively; the
GigabitEthernet 1/0/24 port is intended to be connected with an important AP.
z The PSE processing software of the S5624P-PWR switch is first upgraded online.
The remotely accessed PDs are powered by the S5624P-PWR switch.
z The maximum power consumption of the accessed AP is 2500 mW, and the
power consumption of the S2016C switch is 12000 mW.
z It is required to guarantee the power feeding to the PDs connected to the
GigabitEthernet1/0/24 port even when the S5624P-PWR switch is under full load.
II. Networking diagram
Network
GE1/0/1
GE1/0/2
S2016C AP
AP
Network
S5624P-PWR
GE1/0/24
AP
S2016C AP
GE1/0/24
AP
S2016C AP
S2016C AP AP
Network
GE1/0/1
GE1/0/2
S2016C AP
AP
Network
S5624P-PWR
GE1/0/24
AP
S2016C AP
GE1/0/24
AP
S2016C AP
S2016C AP AP

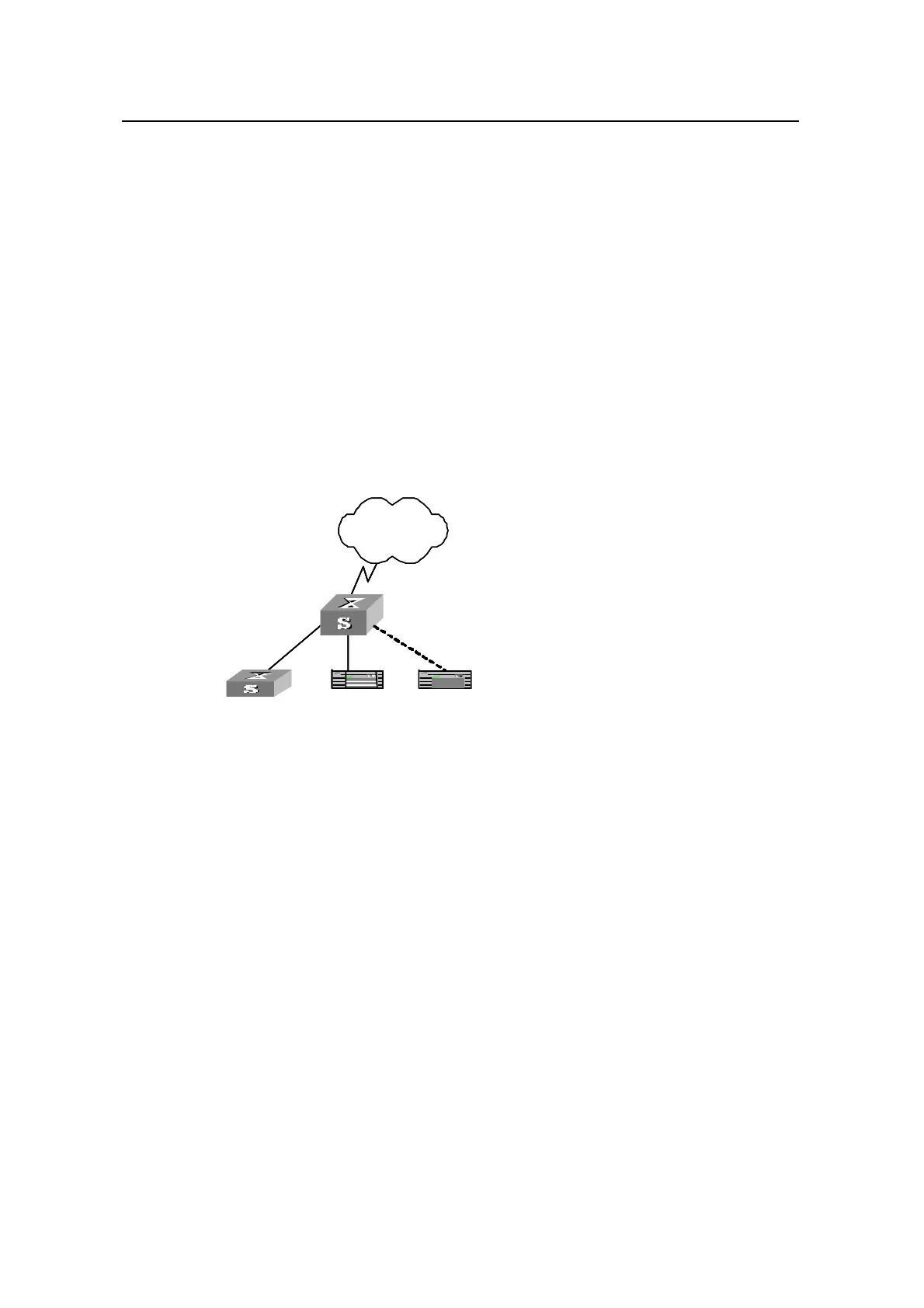

Figure 1-1 Network diagram for PoE
III. Configuration procedure
# Upgrade the PSE processing software online.
<Quidway> system-view
[Quidway] poe update refresh 0290_021.s19
# Enable the PoE feature on GigabitEthernet 1/0/1, GigabitEthernet 1/0/2, and
GigabitEthernet 1/0/24.
[Quidway] interface GigabitEthernet 1/0/1
[Quidway-GigabitEthernet1/0/1] poe enable
[Quidway-GigabitEthernet1/0/1] quit
[Quidway] interface GigabitEthernet 1/0/2
[Quidway-GigabitEthernet1/0/2] poe enable
[Quidway-GigabitEthernet1/0/2] quit
[Quidway] interface GigabitEthernet 1/0/24
[Quidway-GigabitEthernet1/0/24] poe enable
[Quidway-GigabitEthernet1/0/24] quit
