Packet ingress/egress
device
Network BNetwork A
Network
Packet ingress/egress
device
Operator’ s Network
Users Network
Packet ingress/egress
device
Network BNetwork A
Network
Packet ingress/egress
device
Operator’ s Network
Users Network

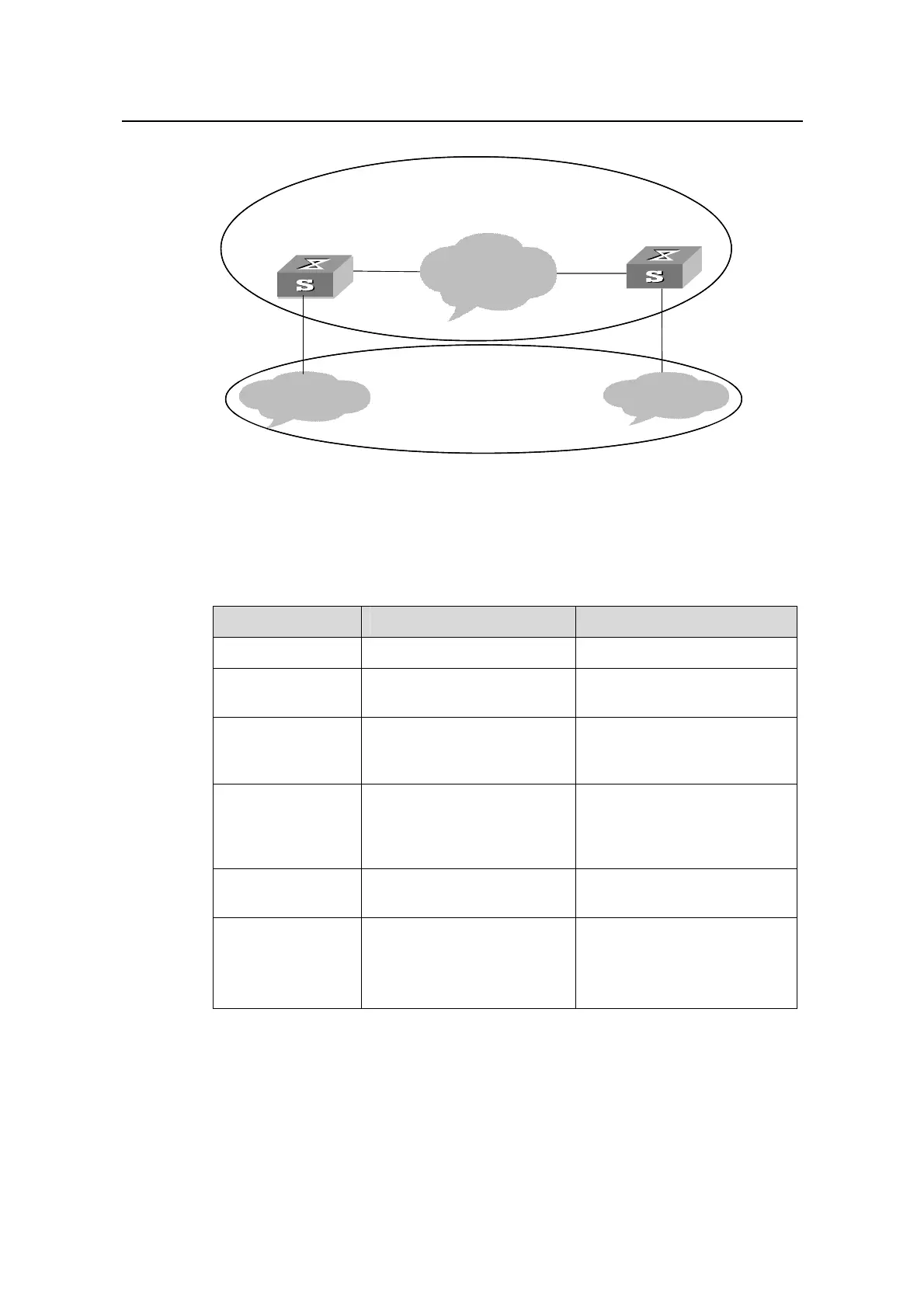

Figure 1-6 BPDU Tunnel network hierarchy
1.8.2 BPDU Tunnel Configuration
Table 1-39 Configure the BPDU Tunnel function
Operation Command Description
Enter system view
system-view
—
Enable MSTP
globally
stp enable
—
Enable the BPDU
Tunnel function
globally
vlan-vpn tunnel
Required
Enter Ethernet port
view
interface interface-type
interface-number
Make sure that you enter the
Ethernet port view of the port
for which you want to enable
the BPDU Tunnel function.
Disable MSTP for
the port
stp disable
—
Enable the VLAN
VPN function for
the Ethernet port
vlan-vpn enable
Required
By default, the VLAN VPN
function is disabled on all
ports.
