Huawei Quidway S5600 Series User Manual

Operation Manual – Routing Protocol
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 5 BGP Configuration
Huawei Technologies Proprietary
5-40
II. Network diagram
IBGP IBGP
EBGP
Client
Client
Route reflector
VLAN 4
194.1.1.1/24
VLAN 3
193.1.1.1/24
VLAN 3
193.1.1.2/24
VLAN 4
194.1.1.2/24
VLAN 2
192.1.1.2/24
VLAN 2
192.1.1.1/24
AS100
AS200
Network
1.0.0.0
VLAN 100
1.1.1.1/8
Switch A
Switch B
Switch C
Switch D

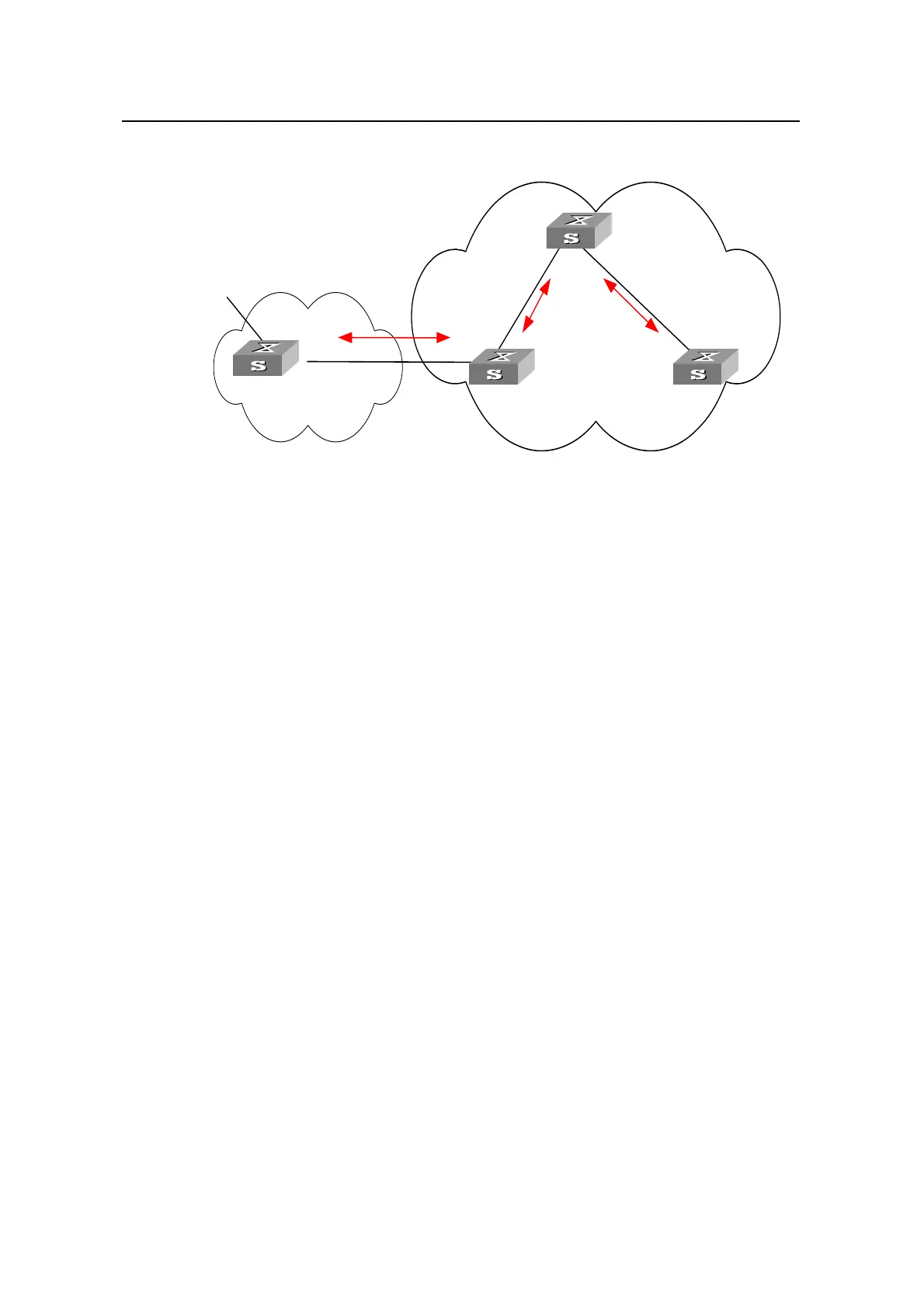

Figure 5-14 Diagram for configuring a BGP RR
III. Configuration procedure
(1) Configure
SwitchA.
[SwitchA] interface vlan-interface 2
[SwitchA-Vlan-interface2] ip address 192.1.1.1 255.255.255.0
[SwitchA-Vlan-interface2] interface Vlan-interface 100
[SwitchA-Vlan-interface100] ip address 1.1.1.1 255.0.0.0
[SwitchA-Vlan-interface100] quit
[SwitchA] bgp 100
[SwitchA-bgp] group ex external
[SwitchA-bgp] peer 192.1.1.2 group ex as-number 200
[SwitchA-bgp] network 1.0.0.0 255.0.0.0
(2) Configure SwitchB.
# Configure VLAN2.
[SwitchB] interface Vlan-interface 2
[SwitchB-Vlan-interface2] ip address 192.1.1.2 255.255.255.0
# Configure VLAN3.
[SwitchB] interface Vlan-interface 3
[SwitchB-Vlan-interface3] ip address 193.1.1.2 255.255.255.0
# Configure a BGP peer.
[SwitchB] bgp 200
[SwitchB-bgp] group ex external
[SwitchB-bgp] peer 192.1.1.1 group ex as-number 100
[SwitchB-bgp] group in internal
[SwitchB-bgp] peer 193.1.1.1 group in
