Huawei Quidway S5600 Series User Manual

Operation Manual – VRRP
Quidway S5600 Series Ethernet Switches-Release 1510 Chapter 1
VRRP Configuration
Huawei Technologies Proprietary
1-13
Internet does not function properly. This can be implemented by enabling the VLAN
interface tracking function.
The VRRP backup group ID is set to 1, with configurations of authorization key and
timer. (This application is optional)
II. Network diagram
Virtual IP address: 202.38.160.111
LSW-A
Host A
202.38.160.3
-Vlan-interface2: 202.38.160.1
Internet
LSW-B
-
Vlan-interface2: 202.38.160.2
Host B
Virtual IP address: 202.38.160.111
Host A
202.38.160.3
-Vlan-interface2: 202.38.160.1
Internet
-
Vlan-interface2: 202.38.160.2
Host B
Vlan-interface3: 10.100.10.2
10.2.3.1
Virtual IP address: 202.38.160.111
LSW-A
Host A
202.38.160.3
-Vlan-interface2: 202.38.160.1
Internet
LSW-B
-
Vlan-interface2: 202.38.160.2
Host B
Virtual IP address: 202.38.160.111
Host A
202.38.160.3
-Vlan-interface2: 202.38.160.1
Internet
-
Vlan-interface2: 202.38.160.2
Host B
Virtual IP address: 202.38.160.111
LSW-A
Host A
202.38.160.3
-Vlan-interface2: 202.38.160.1
Internet
LSW-B
-
Vlan-interface2: 202.38.160.2
Host B
Virtual IP address: 202.38.160.111
Host A
202.38.160.3
-Vlan-interface2: 202.38.160.1
Internet
-
Vlan-interface2: 202.38.160.2
Host B
Vlan-interface3: 10.100.10.2
10.2.3.1

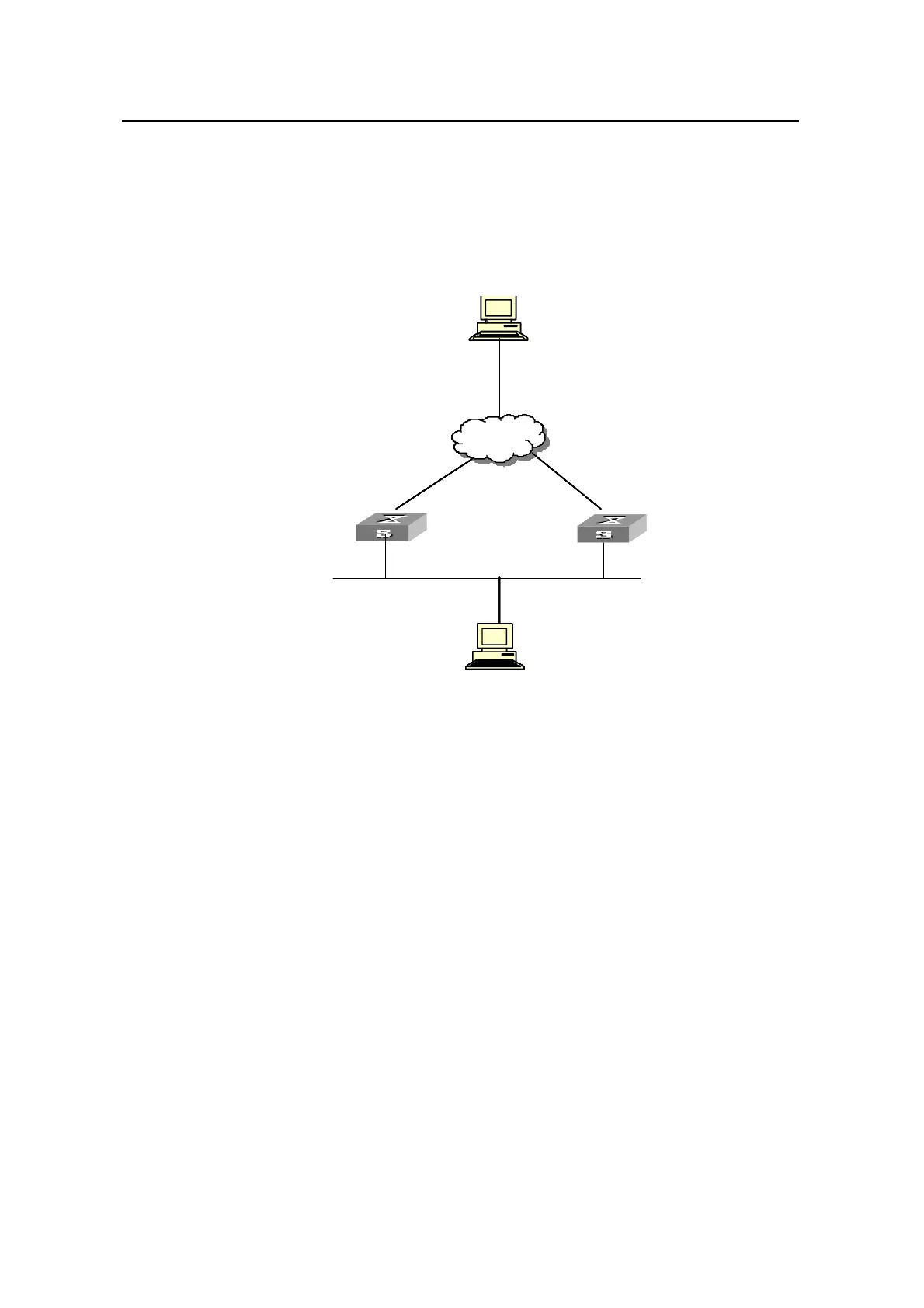

Figure 1-4 Network diagram for interface tracking configuration
III. Configuration procedure
z Configure Switch A.
# Configure VLAN 2.
<LSW-A> system-view
System View: return to User View with Ctrl+Z.
[LSW-A] vlan 2
[LSW-A-vlan2] port GigabitEthernet 1/0/6
[LSW-A-vlan2] quit
[LSW-A] interface Vlan-interface 2
[LSW-A-Vlan-interface2] ip address 202.38.160.1 255.255.255.0
[LSW-A-Vlan-interface2] quit
# Configure that the virtual router can be pinged.
[LSW-A] vrrp ping-enable
# Create a backup group.
[LSW-A] interface Vlan-interface 2
